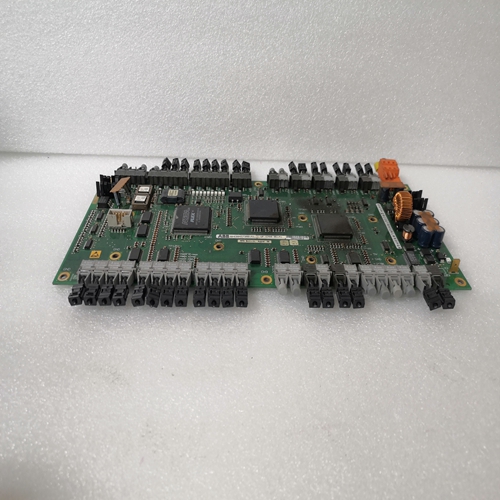

UFC760BE141串行链路卡件
必须在每个模块上设置地址，以便中央单元可以正确访问输入和输出。
关于项目的详细描述“寻址”包含在章节中中央单元和耦合器的“寻址”。
模块地址设置在位于在模块顶部的盖子下面短路或过载时的行为：如果输出发生短路或过载频道，相关频道将作为开关晶体管的高温反应。
在某些时间间隔内，模块会尝试打开频道。在每次开关试验之前，信号所有通道将中断约20µs。
这也适用于那些不涉及过载或短路事件。
短路或过载消除后，相关通道可以立即重新运行。这个红色LED“过载”熄灭。
发送给主机的错误消息：如果发生短路或过载，错误消息连同错误代码一起发送给主服务器
4号。在每种情况下，信道0都被视为故障，独立于真正涉及的渠道。错误消息保持至少5秒，甚至如果短路或过载已在时间更短。有关诊断的更多信息，请参阅
用作总线的中央单元和耦合器的说明
总的来说，ABB Procontic CS31系统说明第2卷中列出的技术系统数据对所有
模块和中央单元。以下列出了其他数据或与系统数据不同的数据。为了达到IP65防护等级，必须在电缆密封套处使用一定直径的合适电缆（总线、I/O连接器、电源电压）：总线和I/O的电缆直径为4.5毫米至6.5毫米，电源电压为5毫米至10毫米mm.总线电缆的电气规格见CS31系统数据。预期用途二进制输入模块ICPI 16 D1是一个远程模块在CS31系统总线上。它有16个二进制通道
以下功能：外壳和终端系统符合IP65防护等级CS31总线从模块到单元为此，模块有两条总线连接器作为总线输入和总线输出。每个输入都有自己的连接器，因此可以单独拔下。
24 V DC电源电压通过以下方式连接模块外壳内的螺旋式端子。
输入允许您将传感器与2极和三极技术（开关触点、启动器等）
提供短路/过载保护电源传感器的电压，可加载每个传感器100 mA每个模块的额定信号电流为15 mA。模块用螺钉安装。有钻孔可安装在后壁或水平表面。
CS31系统总线连接是电气隔离的来自其余模块组件。
该模块提供诊断功能（参见章节“诊断和显示”）。
Addressing
An address has to be set on each module, so that the
central unit can access the inputs and outputs correctly.
A detailed description concerning the item
”Addressing” is contained in the chapters
”Addressing” of the central units and couplers.
The module address is set on the DIL switch located
under the cover at the top side of the module Behaviour in case of short–circuit or overload:
If a short–circuit or an overload has occurred on an output
channel, the involved channel will be switched off as a
reaction on a high temperature of the switching transistor.
In certain intervals, the module then tries to switch on the
channel again. Before every switching–on trial, the signal
at all channels will be interrupted for a period of ca. 20 µs.
This is also valid for those channels which are not
involved in the overload or short–circuit event.
After the short–circuit or overload has been eliminated,
the involved channel can operate immediately again. The
red LED ”Overload” goes out.
Error message to the master:
In case of a short–circuit or an overload, an error
message is sent to the master, along with the error code
No. 4. In each case, the channel No. 0 is given as faulty,
independent of the really involved channel. The error
message is kept up for a period of at least 5 seconds, even
if the short–circuit or overload has been remedied in a
shorter time.
Fur further information concerning diagnosis, see the
descriptions of the central units and couplers used as bus
masters In general, the technical system data listed in volume 2 of the system description ABB Procontic CS31 are valid for all
modules and central units. Additional data or data which are different from the system data are listed as follows.In order to meet the Degree of Protection IP65, suitable cables with certain diameters must be used at the cable glands
(bus, I/O connectors, supply voltage): cable diameters for bus and I/O 4.5 mm to 6.5 mm, for supply voltage 5 mm to 10
mm. The electrical specifications for the bus cables can be found under the CS31 system data.Intended purpose
The binary input module ICPI 16 D1 is a remote module
on the CS31 system bus. It has 16 binary channels with
the following features:
Housing and termination system according to IP65
degree of protection
The CS31 bus line is looped through from module to
module. For this purpose, the module has two bus
connectors as bus input and bus output.
Each input has its own connector and thus can be
unplugged individually.
The 24 V DC supply voltage is connected via
screw–type terminals inside the module housing.
The inputs
allow you to connect sensors with 2–pole and
3–pole technique (switching contacts, initiators
etc.)
provide a short–circuit/overload–proof supply
voltage for the sensors, with can be loaded with
100 mA by each sensor
have a rated signal current of 15 mA each The module is mounted with screws. There are bore holes
available for both mounting on a rear wall or on a
horizontal surface.
The CS31 system bus connection is electrically isolated
from remaining module components.
The module offers diagnosis functions (see chapter
”Diagnosis and displays”).
