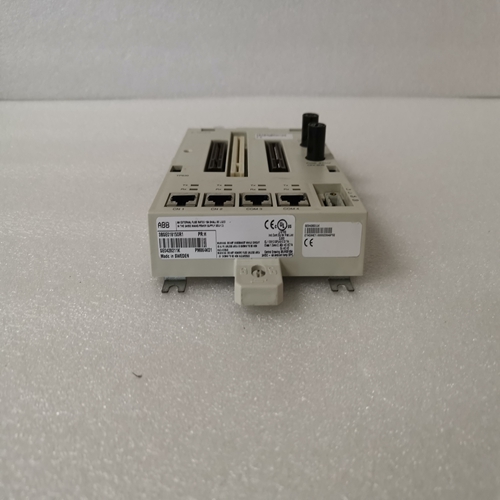

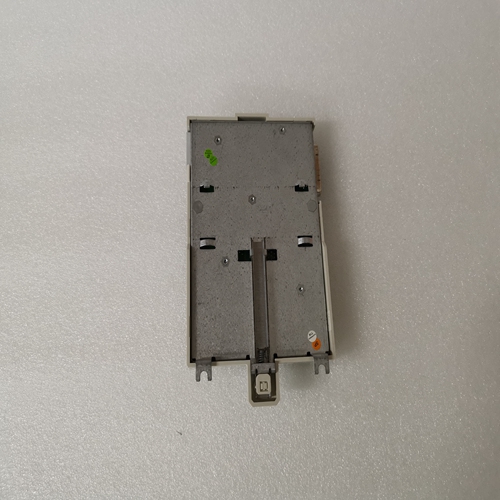

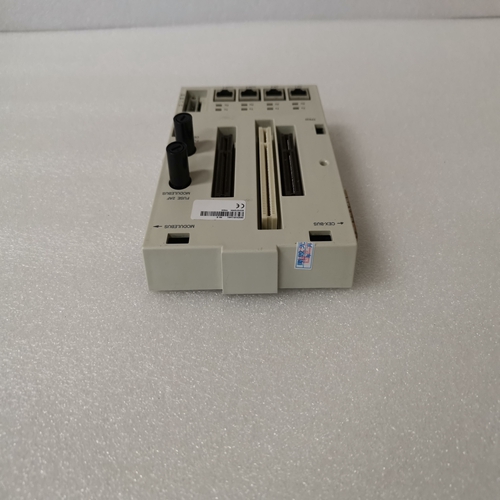

TP830底座
编程器连接，并行用于并行接口（仅限MS-DOS编程器）
编程器连接到总线变送器模块（IC697BEM713），如所示
图1.查阅适用的编程软件编程说明的用户手册功能。编程器连接，串行端口
CPX 772有三个独立的板载串行港口。这些端口可通过
模块前部，用于与编程计算机或其他串行设备。
从固件版本8.00开始，支持程序加载/存储操作和数据报
添加到端口1和2。此外，Break-Free SNP是添加为中端口1和2的默认协议
固件版本8.00。有关详细信息，请参阅模块附带的产品信息表。底部端口3也与RS-485兼容，但不是孤立的。端口3有一个15针内螺纹D连接器。引脚输出信息可在中找到IC697 PLC安装手册。CPX前部的三个LED指示灯928提供上的串行端口活动状态CPU，而不连接端子。
这个LED标记为P1、P2和P3，以对应适用的端口。
从CPU串行端口到串行端口的连接编程计算机上的端口或其他串行端口
设备需要一条串行电缆，对于端口2和3转换器。可以使用IC690ACC901电缆套件（包括电缆和微型转换器），或者您可以构建电缆以适应
您特定应用的需求。参见IC697有关串行的更多信息，请参阅PLC安装手册通信、电缆和转换器。
编程器连接，以太网TCP/IP通过以太网连接程序员
TCP/IP网络需要安装以太网PLC中的接口模块。这可以是以太网控制器，IC697CMM741或以太网接口（类型2），IC697CMM742。连接前您的编程器和PLC连接到以太网TCP/IP网络：必须在以太网中设置IP地址
界面设置IP地址后，连接PLC和运行Windows软件的编程器到以太网接口。更详细编程器连接信息，通过以太网TCP/IP，参考TCP/IP以太网通信（类型2）用户手册，以及Windows编程手册，GFK-1295
Programmer Connection, Parallel
For a parallel interface (MS-DOS programmer only)
the programmer is connected to the top port on the
Bus Transmitter Module (IC697BEM713) as shown in
Figure 1. Consult the applicable Programming Software
User‘s Manual for a description of programming
functions.Programmer Connection, Serial Ports
The CPX 772 has three independent, on-board serial
ports. These ports, accessed by connectors on the
front of the module, are used for serial interface to a
programming computer or other serial devices.
Starting with Firmware Release 8.00, support for
program Load/Store operations and Datagrams was
added to Ports 1 and 2. Also, Break-Free SNP was
added as the default protocol for Ports 1 and 2 in
Firmware Release 8.00. For details, see the Important
Product Information sheet that ships with the module.Port 3, the bottom port, is also RS-485 compatible,
but is not isolated. Port 3 has a 15-pin, female Dconnector. Pin-out information can be found in
the IC697 PLC Installation Manual.Three of the LED indicators on the front of the CPX
928 provide the status of serial port activity on the
CPU without having a terminal connected. The
LEDs are labeled as P1, P2, and P3 to correspond to
the applicable port.
The connection from a CPU serial port to the serial
port on a programming computer or other serial
device requires a serial cable and, for Ports 2 and 3, a
converter. This connection can be made with the
IC690ACC901 cable kit (includes cable and
miniconverter) or you may build cables to fit the
needs of your particular application. See the IC697
PLC Installation Manual for more information on serial
communications, cables, and converters.
Programmer Connection, Ethernet TCP/IP
Connecting your programmer via an Ethernet
TCP/IP network requires installation of an Ethernet
Interface module in the PLC. This can be either the
Ethernet Controller, IC697CMM741, or Ethernet
Interface (Type 2), IC697CMM742. Before connecting
your programmer and PLC to the Ethernet TCP/IP
network you must set the IP address in the Ethernet
Interface. After setting the IP address, connect the PLC and the programmer running Windows software
to the Ethernet Interface. For more detailed
information on the programmer connection via
Ethernet TCP/IP, refer to the TCP/IP Ethernet
Communications (Type 2) User’s Manual, and the
Windows programming manual, GFK-1295
