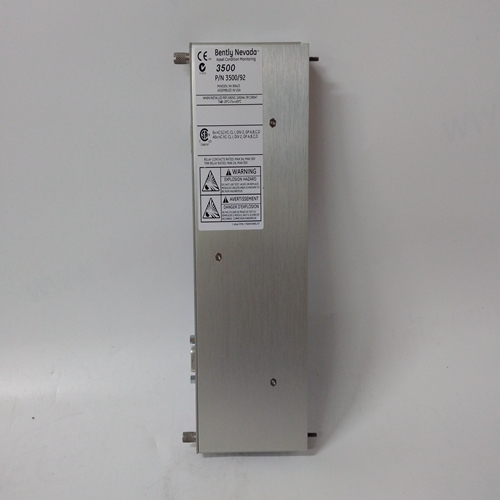

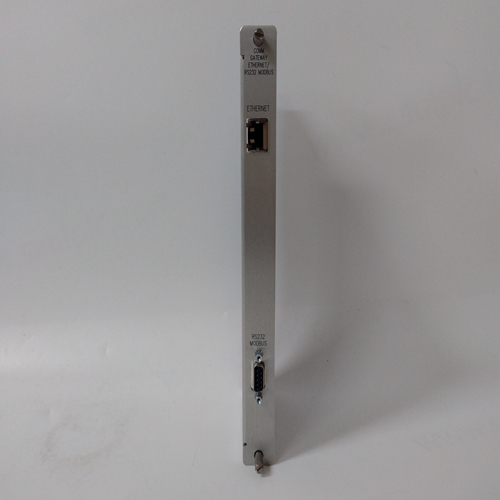

BENTLY 136188-01监测继电器
定义运行函数的处理单元。ParSet 4..1用于确定特定功能在哪一组参数中激活的参数（见第5.11节）。
电流输入模拟电流I/P通道。所有当前I/P可供选择。角测量实际功率的特征角。在测量视在时也考虑相位角权力不应改变0.0度的默认设置，测量时电压和电流I/P同相时纯实功率，例如测量接地相位时同一导体的电压和电流。在以下情况下，设置可能从0.0变化：c.t.和v.t.相位误差补偿
相接地和相对相电压之间的相移补偿电压和电流之间的相移补偿一般电流（例如，测量S-T电压和R电流）。电压InP定义v.t.输入通道。所有电压I/P可供选择。
PN被测功率的参考值。
这使得被测功率的振幅能够：例如考虑额定功率因数。
电压模式
电压测量方法的定义以及功率的计算。设置：相接地：所选电压I/P的电压为直接测量。
相-相-相电压由测量所选电压I/P和周期滞后电压通道。
当只有单相连接或相-相电压被连接。设置说明必须仔细设置测量功能，以获得
这是最好的准确性。必须遵守以下规定：C.t./v.t.输入通道参考值
电压和电流模拟的参考值输入通道必须设置为，当额定值
应用于I/P，测量1.000 UN和1.000 IN通过函数。
在大多数情况下，可以保留c.t.和v.t.输入通道的默认参考设置（1.000）。笔记对三相电压或电流I/P的参考值所做的任何改变适用于所有相。
Explanation of parameters
RunOnCPU
defines the processing unit which runs the function.
ParSet 4..1
Parameter for determining in which set of parameters a particular function is active (see Section 5.11.).
CurrentInp
Analogue current I/P channel.
All current I/P's are available for selection.
Angle
Characteristic angle for measuring real power. The phaseangle is also taken into account when measuring apparent
power.
The default setting of 0.0 degrees should not be changed,
when voltage and current I/P's are in phase when measuring
purely real power, e.g. when measuring the phase-to-ground
voltage and current of the same conductor.
The setting may vary from 0.0 in the following cases:
compensation of c.t. and v.t. phase errors
compensation of the phase-shift between phase-toground and phase-to-phase voltages
compensation of the phase-shift between voltage and
current in general (e.g. when measuring S-T voltage and
R current).VoltageInp
Defines the v.t. input channel.
All voltage I/P's are available for selection.
PN
Reference value for the power being measured.
This enables the amplitude of the power being measured to
be adjusted, e.g. to take account of the rated power factor.
Voltage mode
Definition of the method of voltage measurement and therefore also the calculation of power. Settings:
phase-to-ground The voltage of the selected voltage I/P is
measured directly.
phase-to-phase The phase-to-phase voltage formed by
the selected voltage I/P and the cyclically lagging voltage channel is measured.
This setting is not permitted when only a
single-phase is connected or when
phase-to-phase voltages are connected.Setting instructions
The measurement function must be carefully set to obtain the
best accuracy. The following must be observed:
C.t./v.t. input channel reference values
The reference values for the voltage and current analogue
input channels must be set such that, when the rated values
are applied to the I/P's, 1.000 UN and 1.000 IN are measured
by the function.
In most cases, it will be possible to retain the default reference setting (1.000) for the c.t. and v.t. input channels. Note
that any changes made to the reference value of a threephase voltage or current I/P apply to all phases.
