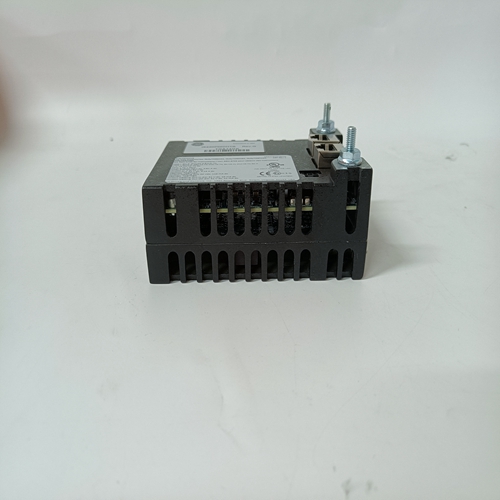

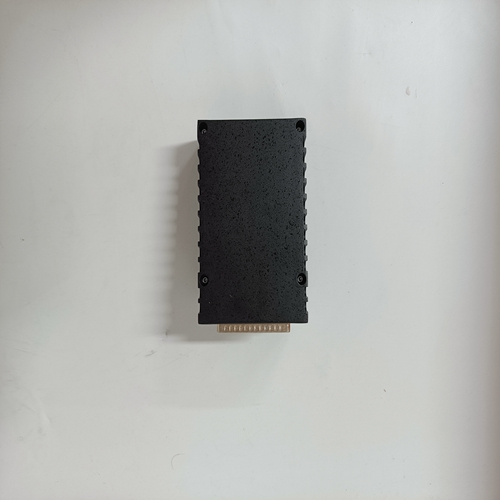

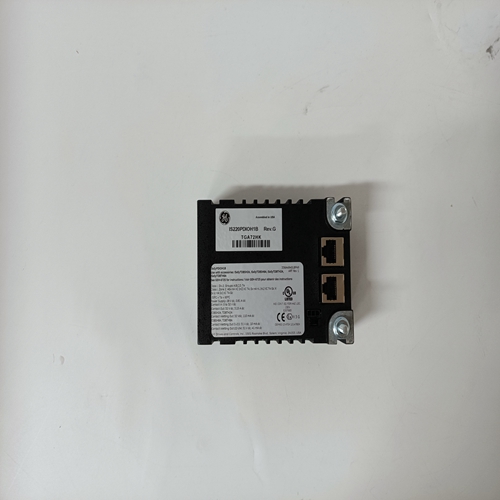

IS220PDIOH1B 336A5026ADP6燃机工控模块
测量功能（UIfPQ） 应用电压、电流、实际功率和视在功率的测量频率，例如用于在控制单元的监视器上显示或用于转移到高级站控制系统，以便进一步处理。
B、 特征单相测量（1个电压和1个电流I/P）相对地电压测量或相对相电压测量（如果安装了三相Y连接的v.t）基频分量的评估频率范围（0.9…1.1）内的高精度fN除非电压过低，否则测量的电压频率
在这种情况下，测量电流；如果两者都太低，则显示为0.000 Hz每秒至少测量一次
对电压和电流中的直流分量不敏感对电压和电流谐波不敏感
电路和测量补偿规定
相位误差。测量变量输入
测量变量输入可连接到以下装置：
资料来源：测量变量常数，整数或百分比范围。
保护功能测量变量，角度范围为±180.00°，电流和电压在相应的单元中传送。
来自IBB的输入，整数范围。模拟信道。3.6.4.1.6.测量变量输出
测量变量输出可连接到以下装置：水槽：测量编号1…64。每次FUPLA时，必须再次加载FUPLA代码
配置已更改。进行内部FUPLA更改后并复制文件“project1.bin”和这是一个项目。cfg'到FUPLA目录，从主目录中选择“编辑器”菜单，然后“返回”以加载新的FUPLA代码。
Measurement function (UIfPQ)
A. Application
Measurement of voltage, current, real and apparent power and
frequency, e.g. for display on the monitor of the control unit or for
transferring to a high level station control system for further
processing.
B. Features
single-phase measurement (1 voltage and 1 current I/P)
phase-to-ground or optionally phase-to-phase voltage measurement (providing three-phase Y connected v.t's are installed)
evaluation of the fundamental frequency components
high accuracy in the frequency range (0.9 ... 1.1) fN
frequency of voltage measured unless voltage too low, in
which case current is measured; if both are too low, the display is 0.000 Hz
at least 1 measurement per second
insensitive to DC components in voltage and current
insensitive to harmonics in voltage and current
provision for compensation of circuit and measurement
phase errors. Measured variable inputs
Measured variable inputs can be connected to the following
sources:
Measured variable constant,
integer or percent range.
Protection function measured variable,
the range for angles is ±180.00° and currents and voltages
are transferred in the corresponding units.
Input from the IBB,
integer range.
Analogue channels.
3.6.4.1.6. Measured variable outputs
Measured variable outputs can be connected to the following
sinks:
Measurements Nos. 1...64.The FUPLA code has to be loaded again each time the FUPLA
configuration is changed. After making internal FUPLA changes
and copying the new versions of the files ‘project1.bin’ and
‘project.cfg’ to the FUPLA directory, select “Editor” from the main
menu and then ‘RETURN’ to load the new FUPLA code.
