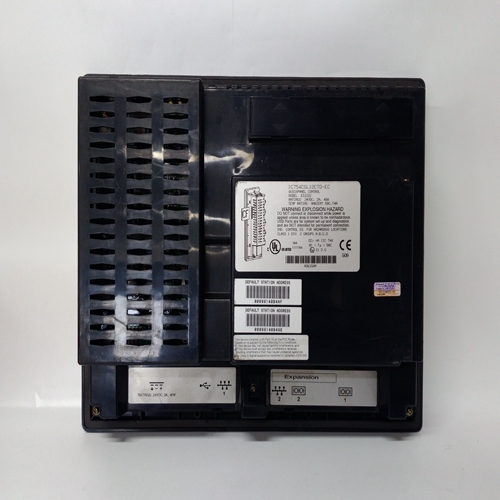

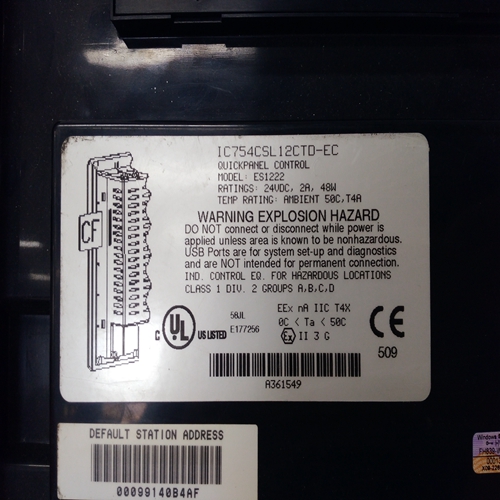

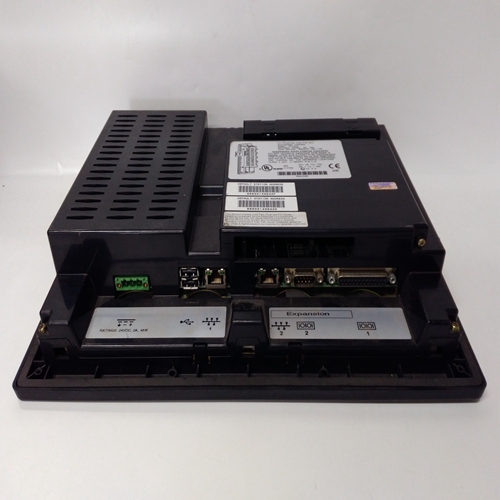

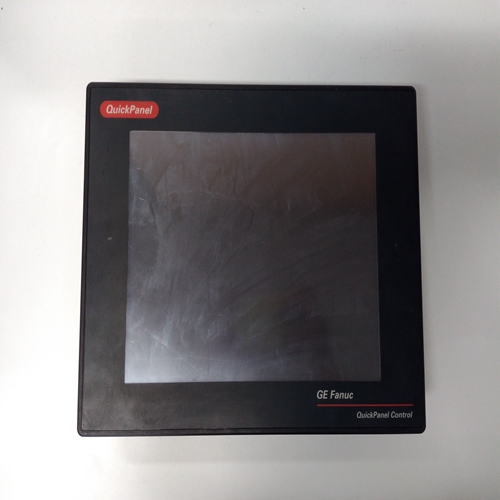

IC754CSL12CTD工控显示屏
这些操作说明适用于一般用途的设施无工程钥匙的系统操作和询问适合。
可能影响系统运行方式的设施包括在工程师操作说明第7章，涉及设施
安装工程钥匙时可用。用户操作例程
根据所操作的键盘功能按钮，可以执行以下用户操作例程：信道复位。
频道选择。查看报警级别。
催化传感器电流检查。传感器信号监控。
接受更新警报。查看时钟/日历。
启动维护记录打印输出。
通道复位和选择由通道卡复位执行/在执行其余功能时选择按钮，
使用工程卡选择通道控制卡时按钮控制。
在任何时间和同时只能选择一个通道卡选择其微处理器监控工程卡按钮功能，以确定应采取的行动。控制卡3.1重置
要重置通道控制卡，请短按并释放其前面板复位/选择按钮。
这将：a、 重置与控制相关的所有锁定和非激活报警卡片
b、 取消所有锁定和非活动警告消息。
c、 重置峰值读数显示。
d、 如果存在更新条件，则确认更新条件。
3.2重置TWA计算和最大/最小值
最大/最小信号值、STEL和LTEL值以及时间按下并按住可将计算重置为零
所需的通道卡复位/选择按钮大约五秒钟。在此期间，所选图标将开始闪烁
当闪烁停止时，复位完成。
3.3选择
为工程控制的操作选择通道卡卡，按住所需的通道卡复位/选择按钮约1.5秒，直到图标显示改变
从正常显示到所选显示，如下所示：选择正常操作
3.4取消选择要取消选择选定的通道卡，请短按其前面板复位/选择按钮。
通道卡将被取消选择，并且中的任何用户操作
尚未确认的进度将被取消。应该是请注意，除非重置，否则不会重置通道卡/再次瞬时按下选择按钮。
GENERAL
These operating instructions refer to the facilities available for general
operation and interrogation of the system without the Engineering Key
fitted.
Facilities that may effect the way the system operates are covered in
the Engineer's Operating Instructions Chapter 7 which refers to facilities
available when the Engineering Key is fitted.USER OPERATING ROUTINES
Depending upon which keypad function push-buttons are operated,
the following user operating routines may be performed:
Channel reset.
Channel select.
View alarm levels.
Catalytic sensor current check.
Sensor signal monitoring.
Accept an update alarm.
View clock/calendar.
Initiate a maintenance record printout.
Channel reset and select are performed by the channel card RESET/
SELECT push-button while the remaining functions are performed,
when a channel control card is selected using the Engineering Card
push-button controls.
Only one channel card can be selected at any one time and while
selected its microprocessor monitors the Engineering Card pushbutton functions to determine what action should take place.CONTROL CARD
3.1 Reset
To reset a channel control card, briefly push and release its front panel
RESET/SELECT push-button.
This will:
a. Reset all latched and non-active alarms associated with the control
card.
b. Cancel all latched and non-active warning messages.
c. Reset the peak reading display.
d. Acknowledge an update condition should one be present.
3.2 Reset TWA Calculations and Max/Min Values
The max/min signal values, STEL and LTEL values, and time
calculations may be reset to zero by pushing and holding down the
required channel card RESET/SELECT push-button for approximately
five seconds. During this period the selected icon will start to flash on
and off, and when the flashing stops the reset is complete.
3.3 Select
To select a channel card for operations controlled from the Engineering
Card, push and hold the required channel card RESET/SELECT pushbutton for approximately 1.5 seconds until the icon display changes
from the normal display to the selected display as shown below:
Normal Operation Selected
3.4 Deselect
To deselect a selected channel card, briefly push its front panel
RESET/SELECT push-button.
The channel card will be deselected and any user operations in
progress which have not been confirmed will be cancelled. It should be
noted that the channel card will not be reset unless the RESET/
SELECT push-button is again momentarily pushed.
