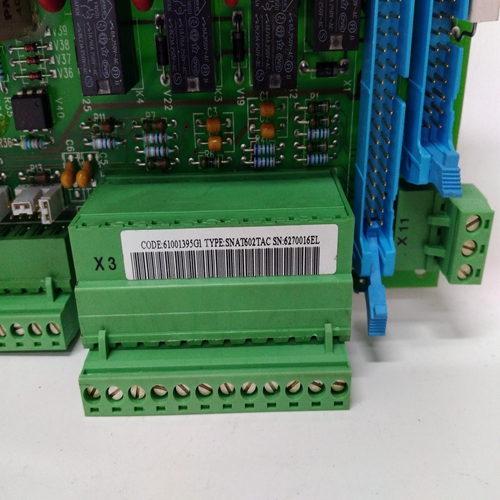

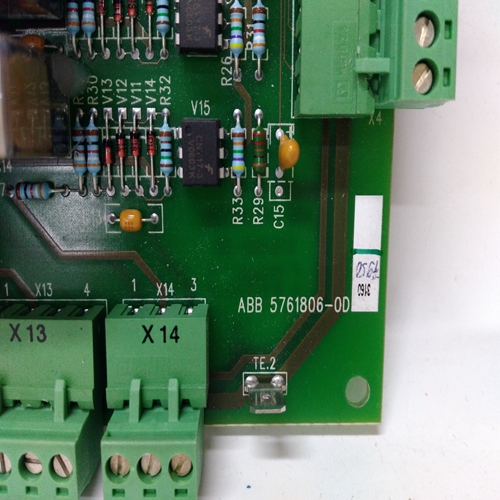

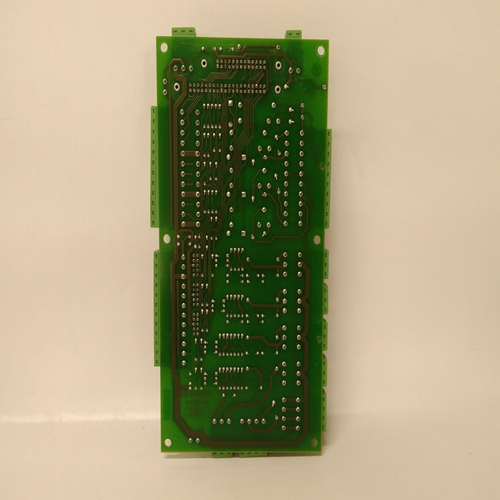

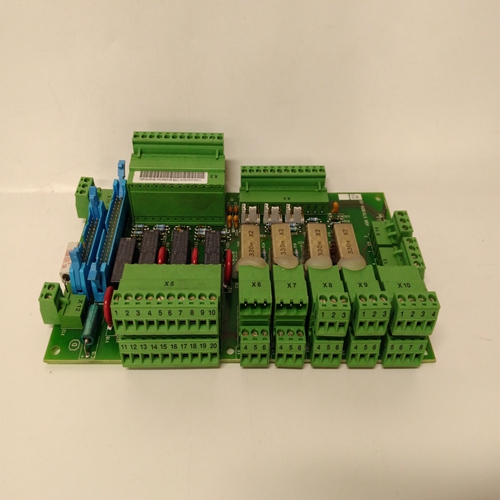

SNAT602TAC驱动板卡
回收运输材料ABB将所有运输材料设计为在可行的情况下可回收。交通工具的循环利用材料取决于材料类型和当地回收计划的可用性。
将系统接收到现场后，包装和运输锁定必须：远离的。根据当地法规回收运输材料。
1.3.4产品的处置处置产品时，应将其拆除，并回收组件根据当地法规。
1.3.4.1产品的拆卸和回收根据当地法规拆卸和回收产品的部件。
注意安全有些部件很重！执行以下操作的人员：系统必须具备必要的知识和技能来处理重型车辆避免发生事故和伤害风险的部件。
称重传感器：这些部件由结构钢制成
可根据本地指令。必须拆除所有辅助设备，如电缆或软管在回收材料之前。PFTL 101负载传感器称重传感器安装在滚动轴承下方，用于测量平行于安装表面。
传递来自卷材/带材的反作用力，该反作用力与卷材/带条张力成比例通过辊和轴承连接至称重传感器称重传感器通过接线盒连接到控制单元。控制单元转换称重传感器信号转换成与反作用力成比例的直流电压。取决于选择控制单元时，两个单独的称重传感器（A和B）、称重传感器信号的和（A+B）和/或称重传感器信号之间的差（A-B）
测量原理
称重传感器仅测量FR方向上的力。测量力可能为正或消极的称重传感器通常安装在滚动轴承下方。当有卷筒纸/条带时辊上的张力，张力（T）产生两个分力，一个沿称重传感器（FR）和直角传感器（FV）的测量
测量力取决于张力（T）和包角之间的关系由测量辊周围的卷材/带材形成。
Recycling the Transport Material
ABB designs all transport material to be recyclable where practical. The recycling of the transport
material depends on the material type and availability of local recycling programs.
After receiving the system into the site, the package and the transportation locking have to be
removed. Recycle the transport material according to local regulations.
1.3.4 Disposal of the Product
When the product is to be disposed, it should be dismantled and the components recycled
according to local regulations.
1.3.4.1 Dismantling and Recycling of the Product
Dismantle and recycle the components of the product according to local regulations.
CAUTION
Some of the components are heavy! The person who performs the dismantling of
the system must have the necessary knowledge and skills to handle heavy
components to avoid the risk of accidents and injury from occurring.
• Load cell: These parts are made of structural steel, which can be recycled according to
local instructions. All the auxiliary equipment, such as cabling or hoses must be removed
before recycling the material.
Loads cells PFTL 101
The load cells are installed under the roll bearings, where they measure forces parallel to the
mounting surface.
The reactive force from the web/strip, which is proportional to the web/strip tension, is transferred
to the load cells via the roll and the bearings
The load cells are connected to the control unit via a junction box. The control unit converts the
load cell signals to DC voltages that are proportional to the reaction force. Depending on which
control unit is chosen, it is possible to have the analog signals for the two individual load cells (A
and B), the sum of the load cell signals (A+B), and/or the difference between the load cell signals
(A-B)
Principle of Measurement
The load cell only measures force in the direction FR. The measurement force may be positive or
negative. The load cell is normally installed under the roll bearings. When there is a web/strip in
tension over the roll, the tension (T) gives rise to two force components, one in the direction of
measurement of the load cell (FR) and one at right angles (FV
).
The measuring force depends on the relationship between the tension (T) and the wrap angle
formed by the web/strip around the measuring roll.
