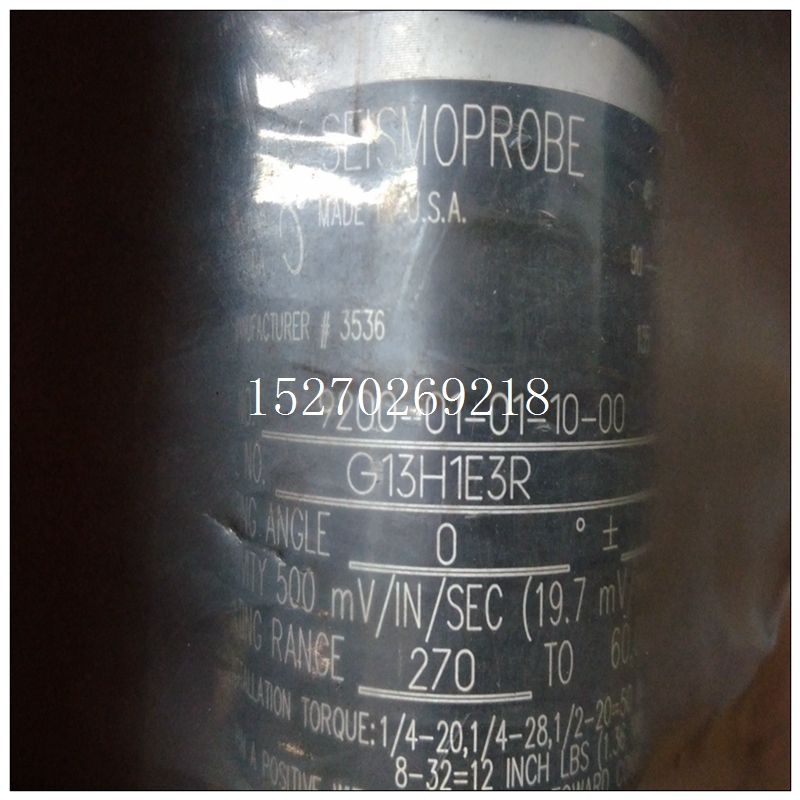

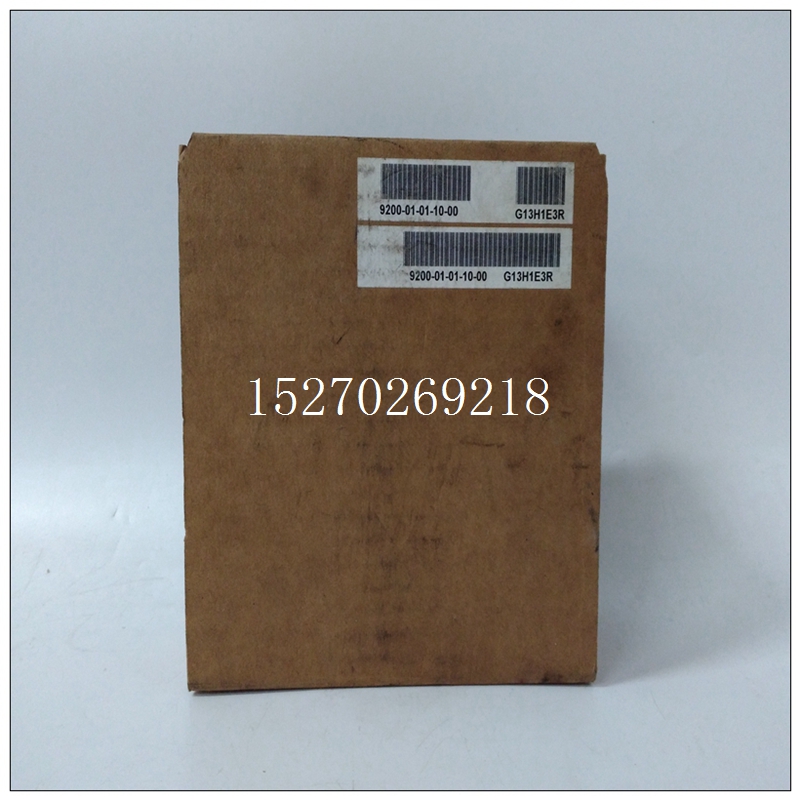

BENTLY 9200-01-01-10-00探头传感器
将标签放卷、牵引、送出、裁切的机构构成，可以由多种类型的标站，采用收放卷的高速运动控制技术来保障稳定的张力，以为精准送标、切标提供保障。标签的收放卷机构，其放卷必须确保与大盘同步，并能够进行补充调整，而收卷则采用扭矩控制模式，带摆辊的方式。通常送标带色标的方式，送标控制由电子凸轮控制及锁标（LATCH）功能配合完成，确保能够精准而又平稳的送标过程。在这个过程中，必须对色标、主轴编码器信号进行微秒级的预测和延时处理，以确保高速中的信号实时同步。
整机配置-紧凑型设计的ACOPOSmotor
BENTLY 9200-01-01-10-00探头传感器图5-贴标机系统配置图
从图5整个机器的配置可以看到，多达60个伺服电机，其高速同步性，由POWERLINK实时网络来保障，达到百微秒级的任务周期。而另一方面采用ACOPOSmotor伺服驱动与电机一体的设计，也让整个接线变得更少，且空间紧凑，易于机械的安装维护。
机器的功能性设计
在回转式贴标机中，针对冷胶、热熔胶、不干胶标准可以实现自动在线监测，自由配对，机械模块化、电气硬件模块化，同时软件也实现模块化。
配方存储与切换：在该机器中，由于经常需要重复生产，或者经常变化尺寸规格、材料等，工艺配方可以进行存储并调用。
缺瓶检测-确保无瓶不贴标，降低不必要的标签损耗，节省成本；自动换卷、换标、自动接标—可以实现连续生产，保持整个产线的高OEE运营状态-并可以对OEE状态进行计算并记录。步进电机作为一种开环控制的系统，和现代数字控制技术有着本质的联系。在目前国内的数字控制系统中，步进电机的应用十分广泛。随着全数字式交流伺服系统的出现，交流伺服电机也越来越多地应用于数字控制系统中。为了适应数字控制的发展趋势，运动控制系统中大多采用步进电机或全数字式交流伺服电机作为执行电动机。虽然两者在控制方式上相似（脉冲和方向信号），但在使用性能和应用场合上存在着较大的差异。现就二者的使用性能作一一比较。
基本结构
步进电机结构图
两相混合式步进电机步距角一般为 1.8°、0.9°，五相混合式步进电机步距角一般为0.72°、0.36°。也有一些高性能的步进电机通过细分后步距角更小。如鸣志公司（MOONS'）生产的二相混合式步进电机搭配其SR系列步进驱动器，其步距角可通过拨码有16档细分可以选择1.8°、0.9°、0.45°、0.36°、0.225°、0.18°、0.1125°、0.09°、0.072°、0.05625°、0.045°、0.036°、0.028125°、0.018°、0.0144°、0.014°，兼容了两相和五相混合式步进电机的步距角。
bidirectional thyristor and transistor. Therefore, for the output end of the circuit, there are corresponding types of "relay output, transistor output, bidirectional thyristor output". Relay output and transistor output are the most common in PLC. Although they are both control devices, they are different. Transistor input and output are not electrically isolated, while relay is electrically isolated. When the volume is limited and the response time is very short, transistor control is often used; When the voltage is relatively high and the current is relatively large, and personal safety should be paid attention to, relays are often used. The relay output is generally strong current controlled by weak current. The output current and voltage are written on the shell of the relay. The specific differences between the two are as follows:
1. Different types of load voltage and current
Load type: transistors can only carry DC loads, while relays can carry AC and DC loads. Current: the maximum transistor current is 0.75a, and the maximum relay current is 2A. Voltage: the transistor can be connected to DC 24V (generally the maximum is about DC 30V, and the relay can be connected to DC 24V, maximum 30V or AC 220V).
2. The load carrying capacity of transistors is less than that of relays. The load carrying capacity of transistors is less than that of relays. When using transistors, sometimes other things need to be added to drive large loads (such as relays, solid-state relays, etc.).
3. The overload capacity of transistor is less than that of relay. Generally speaking, when there is a large impulse
