SANYO DENKI Q3AA18200BBZTA交流电伺服电机 PDF资料

1.产 品 资 料 介 绍：

SANYO DENKI Q3AA18200BBZTA 交流伺服电机

产品简介

SANYO DENKI Q3AA18200BBZTA 是山洋电气（SANYO DENKI）高性能 AC Servo Motor（交流伺服电机） 系列中的一款型号，属于 SANMOTION Q 系列。该系列以高响应、高精度和紧凑设计著称，专为自动化设备和精密控制系统而开发。

主要性能特点

1. 高响应与高控制精度
   采用低转动惯量与高磁通密度设计，实现优异的加减速性能与动态响应能力。
   搭配山洋伺服驱动器使用时，可实现微米级的精确位置控制。

2. 强劲输出与节能设计
   电磁效率高，温升低，能在较小体积下输出较大扭矩，满足高负载工况。
   设计中采用优化绕组技术，有效降低能耗。

3. 内置高分辨率编码器
   内置高精度绝对值编码器（通常为 20-bit 或以上分辨率），实现精准位置反馈与平稳运行。

4. 紧凑轻量化结构
   电机采用高强度铝合金外壳与优化散热结构，体积小、重量轻，便于安装于空间受限的设备中。

5. 低噪音、低振动
   特殊的转子平衡与轴承布置，显著降低运行噪音与机械振动。

6. 多重保护设计
   具备过热、过流、过载等多项保护功能，适合长期稳定运行。

典型技术参数（参考）

• 额定功率：约 2.0 kW

• 额定电压：200 V（三相 AC）

• 额定转速：2000 rpm

• 额定扭矩：约 9.5 N·m

• 最大转速：5000 rpm

• 编码器类型：绝对值/增量式（可选）

• 冷却方式：自然风冷

• 防护等级：IP65（轴伸除外）

• 安装方式：法兰安装

SANYO DENKI Q3AA18200BBZTA交流电伺服电机 英文介绍

SANYO DENKI Q3AA18200BBZTA AC servo motor

Product Introduction

SANYO DENKI Q3AA18200BBZTA is a model in the SANYO DENKI high-performance AC Servo Motor series, belonging to the SANMOTION Q series. This series is known for its high response, high precision, and compact design, developed specifically for automation equipment and precision control systems.

Main performance characteristics

High response and high control accuracy

Adopting a low moment of inertia and high magnetic flux density design to achieve excellent acceleration and deceleration performance and dynamic response capability.

When used in conjunction with Shanyang servo drives, precise position control at the micrometer level can be achieved.

Strong output and energy-saving design

High electromagnetic efficiency, low temperature rise, able to output large torque in a small volume, meeting high load conditions.

Optimized winding technology is adopted in the design to effectively reduce energy consumption.

Built in high-resolution encoder

Built in high-precision absolute value encoder (usually with a resolution of 20 bit or higher), achieving precise position feedback and smooth operation.

Compact and lightweight structure

The motor adopts high-strength aluminum alloy shell and optimized heat dissipation structure, with small volume and light weight, making it easy to install in equipment with limited space.

Low noise, low vibration

Special rotor balance and bearing arrangement significantly reduce operating noise and mechanical vibration.

Multiple protection design

It has multiple protection functions such as overheating, overcurrent, overload, etc., suitable for long-term stable operation.

Typical technical parameters (reference)

Rated power: approximately 2.0 kW

Rated voltage: 200 V (three-phase AC)

Rated speed: 2000 rpm

Rated torque: approximately 9.5 N · m

Maximum speed: 5000 rpm

Encoder type: Absolute/Incremental (optional)

Cooling method: natural air cooling

Protection level: IP65 (excluding shaft extension)

Installation method: flange installation

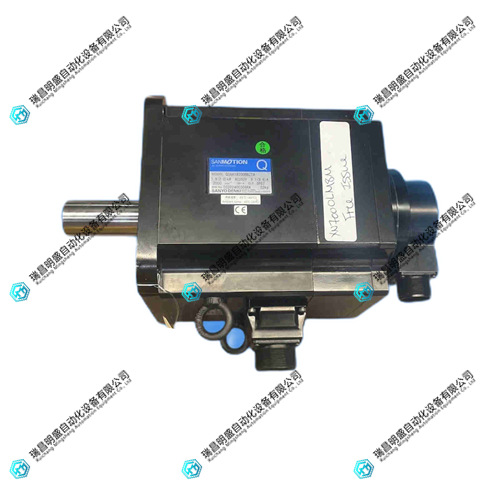

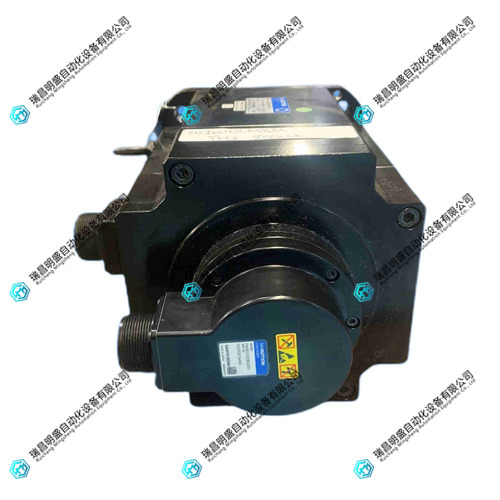

SANYO DENKI Q3AA18200BBZTA交流电伺服电机 产品展示
