SANYO DENKI 64BM180LXUL9伺服主轴电机 PDF资料
1.产 品 资 料 介 绍：
Sanyo Denki 64BM180LXUL9 伺服主轴电机特点
系列名称：BL Super / SANMOTION S 主轴伺服系列
类型：高性能交流伺服主轴电机
主要用途：用于数控机床、加工中心、磨床、车床等设备的主轴驱动
一、技术参数（参考同系列数据）
型号：64BM180LXUL9
额定功率：约 180 W
额定电压：220～240 V AC
额定电流：约 1.2 A
额定转速：约 1350 rpm
控制方式：矢量控制伺服系统
冷却方式：自然冷却或外部风冷
安装形式：法兰安装
防护等级：IP54～IP65（依据配置）
绝缘等级：F 级
二、性能特点
高精度与高稳定性 —— 主轴定位精度高，运行平稳，适用于精密加工。
高速性能优异 —— 具备高转速响应能力，适合长时间稳定运转。
结构紧凑 —— 电机体积小、惯量低，提升动态性能与加速响应。
扭矩输出平稳 —— 扭矩波动小，能保证加工表面质量。
高效率设计 —— 内部磁路优化，能量损耗低，发热量小。
低噪音、低振动 —— 采用高精度动平衡工艺与优质轴承系统。
可靠性高 —— 多重绝缘与防护结构，适应工业高负荷工作环境。
三、典型应用
CNC 数控主轴系统
精密磨削与切削机床
电子制造设备主轴驱动
自动化生产线主轴机构
高速钻孔、雕刻、加工中心等设备
SANYO DENKI 64BM180LXUL9伺服主轴电机 英文介绍
Sanyo Denki 64BM180LXUL9 servo spindle motor features
Series Name: BL Super/SANMOTION S Spindle Servo Series
Type: High performance AC servo spindle motor
Main application: Used for spindle drive of CNC machine tools, machining centers, grinders, lathes and other equipment
1、 Technical parameters (refer to the same series of data)
Model: 64BM180LXUL9
Rated power: approximately 180 W
Rated voltage: 220-240 V AC
Rated current: approximately 1.2 A
Rated speed: approximately 1350 rpm
Control method: Vector control servo system
Cooling method: natural cooling or external air cooling
Installation form: flange installation
Protection level: IP54~IP65 (depending on configuration)
Insulation level: F level
2、 Performance characteristics
High precision and high stability - The spindle has high positioning accuracy, runs smoothly, and is suitable for precision machining.
Excellent high-speed performance - with high-speed response capability, suitable for long-term stable operation.
Compact structure - the motor has a small volume and low inertia, improving dynamic performance and acceleration response.
Smooth torque output - with minimal torque fluctuations, it can ensure the quality of the machined surface.
Efficient design - optimized internal magnetic circuit, low energy loss, and low heat generation.
Low noise, low vibration - adopting high-precision dynamic balancing technology and high-quality bearing system.
High reliability - multiple insulation and protective structures, suitable for industrial high load working environments.
3、 Typical applications
CNC spindle system
Precision grinding and cutting machine tools
Spindle drive for electronic manufacturing equipment
Automated production line spindle mechanism
High speed drilling, carving, machining centers and other equipment

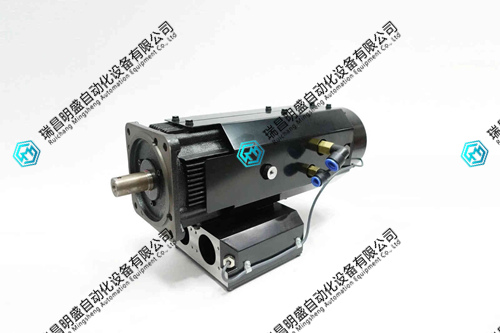

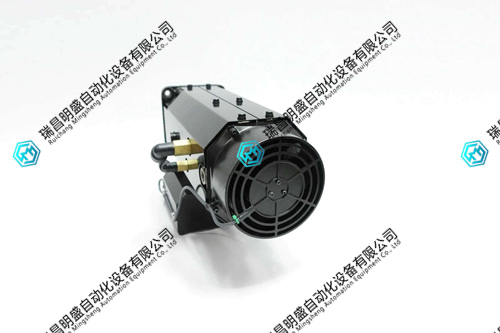

SANYO DENKI 64BM180LXUL9伺服主轴电机 产品展示
