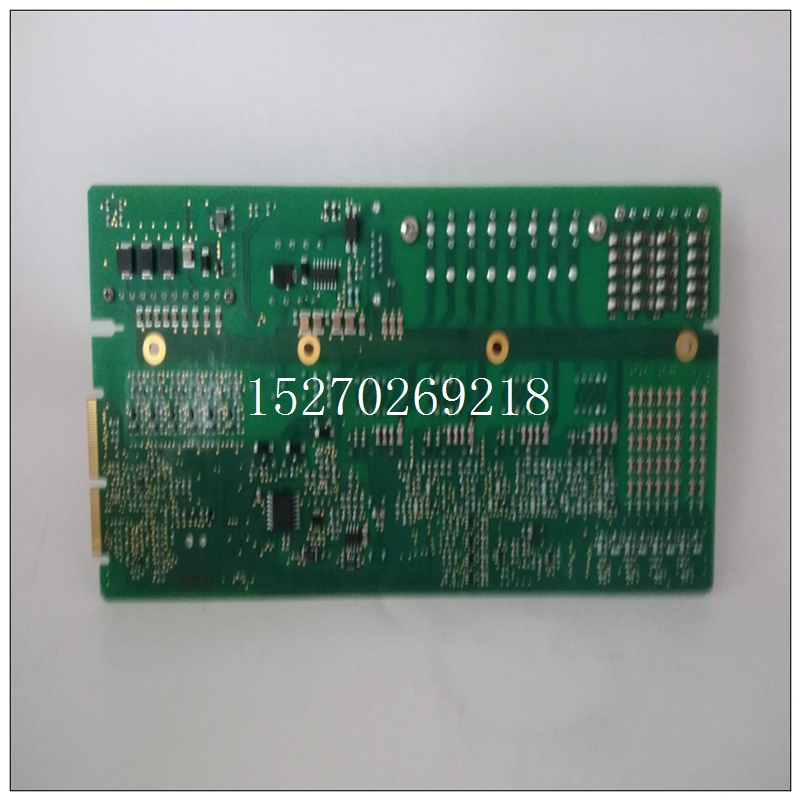

UAD206A101产品颜色,ABB卡件
电缆和卡边缘连接器CONFlGURATlONVMIVME-2511设计用于通过两根扁平带状电缆接收触点输入连接至连接器P3和P4，如图5-4所示。导线#1如图所示由于P3和P4的插脚#1，连接器插入收割台时的底部如图所示安装。使用以C行作为末端电路的扁平带状连接器，所有奇数由于P3和P4的C行为连接至VMEbus接地。因此，电缆的所有偶数编号导线是进入VMIVME-2511的触点输入信号。如果电缆连接器使用A行作为终端电路时，所有奇数编号的导线都是信号导线，而偶数编号的导线将接地。
UAD206A101产品颜色表5-2和5-3显示了64VMIVME-2511的输入通道。电缆导体/信号分配将取决于选择的电缆连接器类型（A行或C行作为终端电路）。VMIVME-2511的兼容电缆连接器是Panduit#I 20-964-455E。应变消除为Panduit#100-000-032。标题连接器15，Panduit#I 20-964-053A，焊接至P.C.板维护技术手册的本节提供了与VMIC产品的维护和保养。如果产品出现故障用户应验证以下内容：a、 软件b、 系统配置c、 电气连接d、 跳线或配置选项e、 电路板完全插入其正确的连接器位置f、 连接器引脚清洁且无接触g、 相邻板的任何组件均不受干扰；插入或从VMEbus卡czge卸下电路板h、 电缆和输入/输出连接的质量不建议进行用户级维修。6.2维护打印附录A包含供参考的图纸和图表。6.3保修VMIC的标准产品保证不存在以下缺陷：材料和工艺有效期为自签署之日起两年（24个月）
运输为解除本保修，VMlC同意在以下时间进行维修或更换：VMIC的设施以及由VMIC自行决定的任何零件、组件、子组件附件或任何硬件、软件或系统产品正常使用证明材料和工艺有缺陷。客户应在客户发现此类缺陷一周后。为了退回有缺陷的产品或零件，费用由VMIC承担客户必须联系VMIC的客户服务部门以获取电车票号码。在获得电话号码后，产品或零件
110 CABLE AND CARD-EDGE CONNECTOR CONFlGURATlON
The VMIVME-2511 is designed to receive contact inputs via two flat ribbon cables
connected to connectors P3 and P4 as shown in Figure 5-4. Conductor #1 is shown at
the bottom of the connector as it plugs into the header, due to pin #1 of P3 and P4
being mounted as shown.
Using a flat ribbon connector that has Row C as the end circuit, all of the odd
numbered conductors of the cable are grounded due to Row C of P3 and P4 being
connected to VMEbus ground. Therefore, all even numbered conductors of the cable
are contact input signals coming into the VMIVME-2511. If a cable connector were
used that has Row A as the end circuit, all odd numbered conductors would be signal
conductors, while the even numbered conductors would be ground.
Tables 5-2 and 5-3 shows the P3 and P4 connector pin assignment for the 64
input channels of the VMIVME-2511. Cable conductor/signal assignment will depend
on the type of cable connector chosen (Row A or Row C as end circuit).
A compatible cable connector for the VMIVME-2511 is Panduit #I 20-964-455E.
Strain relief is Panduit #100-000-032. Header connector 15, Panduit #I 20-964-053A,
is soldered to the P.C. BoardMAINTENANCE
This section of the technical manual provides information relative to the
care and maintenance of VMIC's products. Should the products malfunction, the
user should verify the following:
a. Software
b. System configuration
c. Electrical connections
d. Jumper or configuration options
e. Boards fully inserted into their proper connector location
f. Connector pins are clean and free from contamimtisn
g. No components of adjacent boards are disturbed wher; inserting or
removing the board from the VMEbus card czge
h. Quality of cables and I/O connections
User level repairs are not recommended. Contact factory for a Return
Authorization Number.
6.2 MAINTENANCE PRINTS
Appendix A contains drawings and diagrams for reference purposes.
6.3 WARRANTY
VMIC's Standard Products are warranted to be free from defects in
material and workmanship for a period of two years (24 months) from the date of
shipment. In discharge of this warranty, VMlC agrees to either repair or replace, at
VMIC's facility and at VMIC's discretion, any part, component, subassembly
accessory, or any hardware, software or system product, which under proper and
normal use proves defective in material and workmanship.
The customer shall provide notice to VMlC of each such defect within
one week after the customer's discovery of such defect.
In order to return the defective product or part at VMIC's expense, the
customer must contact VMIC's Customer Service Department to obtain a Call
Ticket Number. After a Call Ticket Number has been obtained, the product or part
