TRICONEX 3625数字 I/O 模块PDF资料
1.产 品 资 料 介 绍：
TRICONEX 3625 数字 I/O 模块 产品特点：
产品概述：
TRICONEX 3625 是 Tricon 安全控制系统（Tricon Safety System）中的数字输入/输出模块，用于采集现场数字信号及执行开关控制命令。该模块在安全关键应用中表现出极高的可靠性与容错性，是工业安全仪表系统（SIS）的核心部件之一。模块功能：
集成数字量输入与输出通道，能够实现设备状态检测、开关量控制、报警输出等功能，支持多种信号类型。三重冗余架构 (TMR)：
采用 Tricon 典型的 Triple Modular Redundant（三模冗余） 结构设计，三个独立的通道同时运行，通过投票机制确保任意单点故障不会影响系统整体运行安全。高可靠性与安全等级：
模块符合 IEC 61508 SIL3 安全完整性等级标准，适用于关键过程控制和安全防护系统。通道特性：
提供多路独立数字输入/输出点位（具体点数根据配置而定）
每通道具备独立隔离设计，防止信号干扰与串扰
输入支持干接点与有源信号采集，输出支持继电器或晶体管驱动
自诊断功能：
内置全面的自检和故障检测机制，可实时监测通道状态、信号完整性及通信健康状况，保证系统的安全运行。通讯与数据处理：
与 Tricon 主处理器（Main Processor Module）通过系统总线高速通信，实现信号同步与逻辑控制。可维护性强：
模块支持带电热插拔，更换方便，无需停机即可维护，极大减少系统停机时间。环境适应性：
设计符合工业级标准，具备防震、防尘、防电磁干扰能力，可在恶劣工况下稳定运行。应用领域：
石油天然气安全控制系统
炼化装置紧急停车系统 (ESD)
电厂锅炉与汽轮机保护系统
化工过程安全仪表系统 (SIS)
海上平台及关键过程控制系统
TRICONEX 3625数字 I/O 模块 英文介绍
TRICONEX 3625 Digital I/O Module Product Features:
Product Overview:
TRICONEX 3625 is a digital input/output module in the Tricon Safety System, used to collect on-site digital signals and execute switch control commands. This module exhibits extremely high reliability and fault tolerance in safety critical applications and is one of the core components of industrial safety instrumented systems (SIS).
Module function:
Integrated digital input and output channels enable device status detection, switch control, alarm output, and support for multiple signal types.
Triple Redundancy Architecture (TMR):
The typical Triple Modular Redundant (the third mock examination Redundant) structure design of Tricon is adopted. Three independent channels operate simultaneously, and the voting mechanism ensures that any single point of failure will not affect the overall operation safety of the system.
High reliability and safety level:
The module complies with the IEC 61508 SIL3 safety integrity level standard and is suitable for critical process control and safety protection systems.
Channel characteristics:
Provide multiple independent digital input/output points (the specific number of points depends on the configuration)
Each channel has an independent isolation design to prevent signal interference and crosstalk
Input supports dry contact and active signal acquisition, output supports relay or transistor drive
Self diagnostic function:
Built in comprehensive self checking and fault detection mechanisms can monitor channel status, signal integrity, and communication health in real-time, ensuring the safe operation of the system.
Communication and Data Processing:
Through high-speed communication with the Tricon Main Processor Module via the system bus, signal synchronization and logic control are achieved.
Strong maintainability:
The module supports hot swapping, making it easy to replace and maintain without shutting down, greatly reducing system downtime.
Environmental adaptability:
Designed to meet industrial standards, it has the ability to withstand shock, dust, and electromagnetic interference, and can operate stably under harsh working conditions.
Application fields:
Oil and gas safety control system
Emergency Shutdown System (ESD) for Refining Equipment
Power plant boiler and turbine protection system
Chemical Process Safety Instrumented System (SIS)
Offshore platform and critical process control system

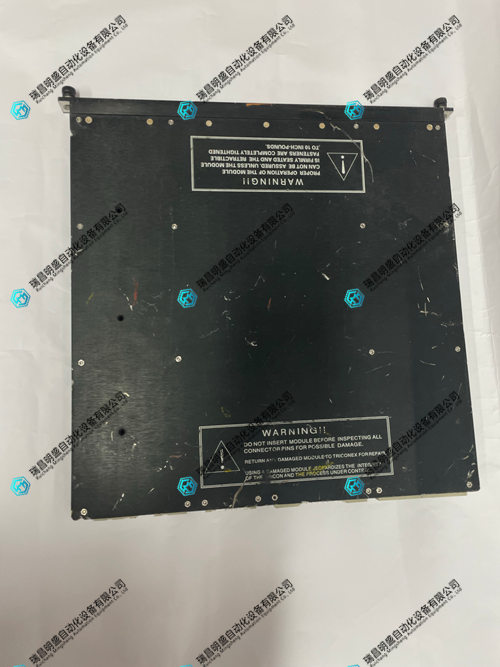

TRICONEX 3625数字 I/O 模块 产品展示
