Extreme Networks BR-VDX6940-24Q-AC-F端口网络开关模块 PDF资料
1.产 品 资 料 介 绍：
产品概述
BR-VDX6940-24Q-AC-F 是 Extreme Networks VDX 6940 系列中的一款高性能交换模块，专为数据中心环境设计，提供高密度的 40GbE 连接能力。
主要规格
端口配置：24 个 40GbE QSFP+ 端口
交换容量：2.88 Tbps
转发率：2.16 Bpps
功耗：典型功耗约 231W，最大功耗约 295W
尺寸：1U 机架式
电源类型：AC 电源
气流方向：非端口侧排风（Non-port-side exhaust airflow）
支持协议：支持 L2/L3 功能、VCS Fabric、VXLAN、ACL 等
产品特点
高密度端口：提供 24 个 40GbE QSFP+ 端口，适用于高带宽需求的环境。
灵活的上行链路：每个 40GbE 端口可通过 breakout 转换为 4 个 10GbE SFP+ 端口，提供灵活的网络拓扑设计。
高性能：具备高交换容量和转发率，满足大规模数据中心的性能需求。
节能设计：优化的功耗设计，适应高密度部署环境。
适用场景
数据中心核心交换：作为数据中心的核心交换设备，提供高速的内部连接。
高性能计算（HPC）环境：满足高性能计算集群对带宽和低延迟的需求。
虚拟化环境：支持 VXLAN 等虚拟化技术，适用于虚拟化部署。
云计算平台：提供可扩展的网络基础设施，支持云服务的部署和扩展。
Extreme Networks BR-VDX6940-24Q-AC-F端口网络开关模块 英文介绍
Product Overview
BR-VDX6940-24Q-AC-F is a high-performance switching module in the Extreme Networks VDX 6940 series, designed specifically for data center environments, providing high-density 40GbE connectivity.
Main Specifications
Port configuration: 24 40GbE QSFP+ports
Exchange capacity: 2.88 Tbps
Forwarding rate: 2.16 Bpps
Power consumption: Typical power consumption is about 231W, maximum power consumption is about 295W
Size: 1U rack mounted
Power type: AC power supply
Airflow direction: Non port side exhaust airflow
Supporting protocols: Supports L2/L3 functionality, VCS Fabric, VXLAN, ACL, etc
Product Features
High density ports: Provides 24 40GbE QSFP+ports, suitable for environments with high bandwidth requirements.
Flexible uplink: Each 40GbE port can be converted to 4 10GbE SFP+ports through a breakout, providing flexible network topology design.
High performance: With high switching capacity and forwarding rate, it meets the performance requirements of large-scale data centers.
Energy saving design: Optimized power consumption design to adapt to high-density deployment environments.
Applicable scenarios
Data center core exchange: As the core exchange equipment of the data center, it provides high-speed internal connections.
High performance computing (HPC) environment: meets the bandwidth and low latency requirements of high-performance computing clusters.
Virtualization environment: Supports virtualization technologies such as VXLAN, suitable for virtualization deployment.
Cloud computing platform: Provides scalable network infrastructure that supports the deployment and expansion of cloud services.

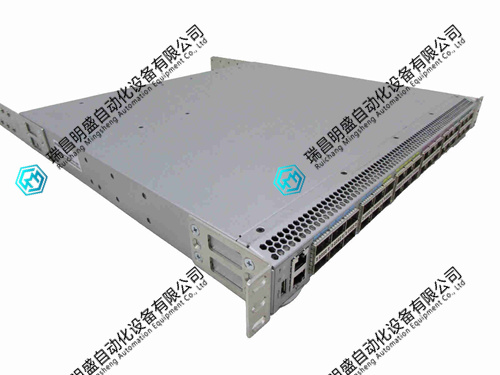

Extreme Networks BR-VDX6940-24Q-AC-F端口网络开关模块 产品展示
