Extreme Networks X435-24P-4S交换机模块 PDF资料
1.产 品 资 料 介 绍：
Extreme X435-24P-4S 交换机模块
产品简介
Extreme X435-24P-4S 是一款面向中小型企业网络接入层的全管理型以太网交换机，隶属于 Extreme Networks X435 系列。该设备支持 PoE+ 供电，具备灵活的上联接口配置和出色的管理功能，适用于办公、安防、无线接入等多场景应用。
主要特点
端口配置：提供 24 个 10/100/1000BASE-T RJ45 以太网端口，支持 PoE+ 供电。
上联接口：配备 4 个 1G SFP 光纤上联端口，用于连接汇聚或核心交换设备。
PoE 功能：符合 IEEE 802.3at 标准，总 PoE 功率预算最高可达 370W，可同时为多台 IP 电话、无线 AP 或摄像头供电。
性能参数：
交换容量约 56 Gbps
转发速率约 41.6 Mpps
MAC 地址表容量 16,000 条
管理与安全：支持 SNMP、CLI、Web、ExtremeCloud IQ 管理；支持 VLAN、ACL、安全访问控制、生成树协议等。
电源与设计：采用内置电源设计，支持节能以太网（EEE），机架式 1U 结构。
散热与噪音：采用智能风扇控制，运行安静，适合办公环境部署。
应用场景
中小型企业接入层网络
办公楼宇、教育机构或零售环境
无线 AP 与 IP 电话集中供电
视频监控与安防系统接入
支持基于云端的集中管理
使用建议
确认总 PoE 负载功率符合预算范围
合理分配上联端口带宽，避免汇聚瓶颈
定期更新固件以提升系统性能与安全性
若需要高可靠性，可考虑双机冗余或堆叠部署
Extreme Networks X435-24P-4S交换机模块 英文介绍
Extreme X435-24P-4S Switch Module
Product Introduction
Extreme X435-24P-4S is a fully managed Ethernet switch designed for the network access layer of small and medium-sized enterprises, belonging to the Extreme Networks X435 series. This device supports PoE+power supply, has flexible uplink interface configuration and excellent management functions, and is suitable for multi scenario applications such as office, security, and wireless access.
Main Features
Port configuration: Provides 24 10/100/1000BASE-T RJ45 Ethernet ports, supporting PoE+power supply.
Upstream interface: equipped with 4 1G SFP fiber upstream ports, used to connect aggregation or core switching equipment.
PoE Function: Compliant with IEEE 802.3at standard, the total PoE power budget can reach up to 370W, and can simultaneously power multiple IP phones, wireless APs, or cameras.
Performance parameters:
Exchange capacity of approximately 56 Gbps
The forwarding rate is about 41.6 Mpps
MAC address table capacity 16000 entries
Management and Security: Supports SNMP, CLI, Web, and ExtremeCloud IQ management; Support VLAN, ACL, secure access control, spanning tree protocol, etc.
Power Supply and Design: Adopting a built-in power supply design, supporting energy-efficient Ethernet (EEE), and a rack mounted 1U structure.
Heat dissipation and noise: Equipped with intelligent fan control, it runs quietly and is suitable for deployment in office environments.
Application scenarios
Small and medium-sized enterprise access layer network
Office buildings, educational institutions, or retail environments
Wireless AP and IP phone centralized power supply
Video surveillance and security system integration
Support cloud based centralized management
Usage recommendations
Confirm that the total PoE load power meets the budget range
Reasonably allocate upstream port bandwidth to avoid aggregation bottlenecks
Regularly update firmware to enhance system performance and security
If high reliability is required, dual machine redundancy or stacked deployment can be considered

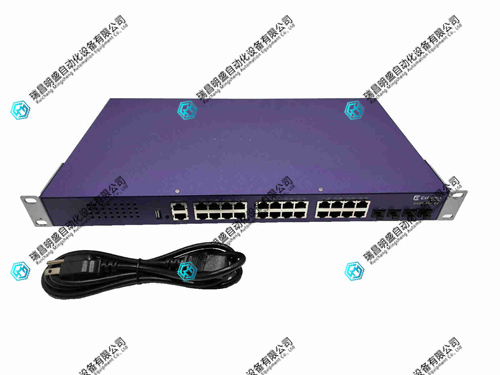

Extreme Networks X435-24P-4S交换机模块 产品展示
