Extreme Networks AL3600A16-E6交换机模块 PDF资料

1.产 品 资 料 介 绍：

Extreme EC4800A88-E6 以太网交换机

产品简介
Extreme EC4800A88-E6 属于 Extreme Networks VSP 4850GTS-PWR+ 系列，是一款支持 PoE+ 的高性能以太网交换机，专为企业网络接入层和汇聚层应用而设计。它提供高密度千兆以太网端口以及 10G 上联能力，适合对供电与带宽要求较高的场景。

主要特点

1. 端口配置：48 个 10/100/1000BASE-T RJ45 以太网端口，支持 PoE+ 功能。

2. 上联端口：2 个 Combo 1G（RJ45/SFP）端口和 2 个 10G SFP+ 上联端口。

3. 管理接口：提供控制台端口和 USB 管理端口，便于设备配置与监控。

4. PoE 供电能力：单电源时最大 PoE 功率约为 855W，双电源配置时可提升至约 1855W。

5. 性能参数：交换容量约 184 Gbps，转发速率约 102 Mpps，MAC 地址表容量 32,000 条。

6. 网络功能：支持静态路由、VRRP、策略路由、ACL、VLAN、生成树协议、多播管理等功能。

7. 硬件规格：1U 机架式结构，支持标准机柜安装，散热高效，维护简便。

应用场景

• 企业接入层，为终端设备提供高速网络连接与 PoE 供电

• 办公楼宇无线接入点和 IP 电话部署

• 视频监控系统接入与供电

• 中小型数据中心边缘或汇聚层交换

• 分支机构网络接入节点

使用建议

• 确认总 PoE 负载功率在供电预算范围内

• 建议使用双电源冗余配置以提高可靠性

• 部署时合理规划上联端口与链路聚合

• 定期升级固件以保持性能和安全

Extreme Networks AL3600A16-E6交换机模块 英文介绍

Extreme EC4800A88-E6 Ethernet Switch

Product Introduction

The Extreme EC4800A88-E6 belongs to the Extreme Networks VSP 4850GTS-PWR+series and is a high-performance Ethernet switch that supports PoE+. It is designed specifically for enterprise network access layer and aggregation layer applications. It provides high-density Gigabit Ethernet ports and 10G uplink capability, suitable for scenarios with high power and bandwidth requirements.

Main Features

Port configuration: 48 10/100/1000BASE-T RJ45 Ethernet ports, supporting PoE+functionality.

Upstream ports: 2 Combo 1G (RJ45/SFP) ports and 2 10G SFP+upstream ports.

Management interface: Provides console port and USB management port for device configuration and monitoring.

PoE power supply capability: The maximum PoE power is about 855W when using a single power supply, and can be increased to about 1855W when using a dual power supply configuration.

Performance parameters: Switching capacity of approximately 184 Gbps, forwarding rate of approximately 102 Mpps, MAC address table capacity of 32000 entries.

Network function: supports static routing VRRP、 Strategic routing ACL、VLAN、 Generative tree protocol, multicast management, and other functions.

Hardware specifications: 1U rack mounted structure, supporting standard cabinet installation, efficient heat dissipation, and easy maintenance.

Application scenarios

Enterprise access layer provides high-speed network connection and PoE power supply for terminal devices

Wireless access points and IP phone deployment in office buildings

Video surveillance system access and power supply

Edge or aggregation layer switching in small and medium-sized data centers

Branch network access node

Usage recommendations

Confirm that the total PoE load power is within the power supply budget range

Suggest using dual power redundancy configuration to improve reliability

Reasonably plan uplink ports and link aggregation during deployment

Regularly upgrade firmware to maintain performance and security

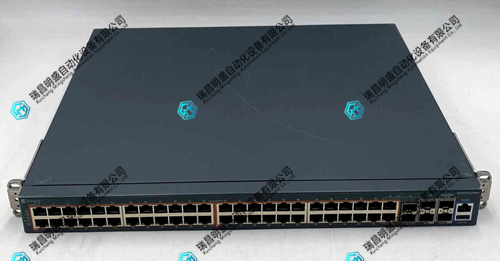

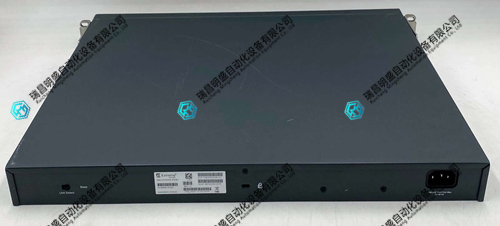

Extreme Networks AL3600A16-E6交换机模块 产品展示

3.其他产品

5761773-0B PCB板
G3ENa/HENF450268R2 工业控制系统模块
PPD512A10-150000 处理器模块

4.其他英文产品

MOTOROLA AET-3047 Industrial Control DCS System Module
MOTOROLA MVME2604761 IO PLC System Spare Parts Module
NI PXI-8516 Spare Parts Module

本篇文章出自瑞昌明盛自动化设备有限公司官网，转载请附上此链接:http://www.jiangxidcs

品牌：Extreme Networks

型号：AL3600A16-E6交换机模块

质保：一年

成色：全新/二手

优势产品：ABB、GE、FOXBORO、TRICONEX、BENTLY、A-B、MOTOROLA、HONEYWELL 、SCHNEIDER

                    WOODWARD、EMERSON、RELIANCE、DEIF、NI、XYVOM等

特点：主营产品各种模块/卡件，控制器，触摸屏，伺服驱动器。

应用行业：广泛应用于冶金、石油天然气、玻璃制造业、铝业、石油化工、煤矿、造纸印刷、纺织印染、机械、电子制造、汽车制造、烟草、塑胶机械、电力、水利、水处理/环保、市政工程、锅炉供暖、能源、输配电等

快递方式：国内顺丰、德邦、京东快递包邮，按照实际报价货期发货
