1.产 品 资 料 介 绍：
Extreme X770-32Q 电源模块
电源模块概述
X770-32Q 交换机采用模块化电源设计，支持多种电源配置，可根据部署需求提供高可靠性供电。模块支持热插拔和冗余配置，适合企业和数据中心环境。
主要参数
输入电压：100–240 V AC，50/60 Hz
输入电流：100 V 时约 2.25 A，240 V 时约 0.9 A
功率：225 W
热耗散：768 BTU/h
安装方式：热插拔，支持前后气流方向
冗余：支持双电源模块冗余配置，提高系统可用性
电源模块选项
AC 电源模块：550W，支持前后气流方向
DC 电源模块：550W，支持前后气流方向
包装内容
两个 550W 电源模块
风扇模块若干
电源线（根据地区配置）
使用注意事项
建议使用双模块冗余配置保证供电可靠性
安装或更换电源模块时，应遵循热插拔操作规范
确保电源类型（AC 或 DC）与机柜及供电环境匹配
Extreme Networks X770-32Q电源模块 英文介绍
Extreme X770-32Q power module
Overview of power module
The X770-32Q switch adopts a modular power design, supports multiple power configurations, and can provide high reliability power supply according to deployment needs. The module supports hot swapping and redundant configuration, suitable for enterprise and data center environments.
Main parameters
Input voltage: 100-240 V AC, 50/60 Hz
Input current: approximately 2.25 A at 100 V, approximately 0.9 A at 240 V
Power: 225 W
Heat dissipation: 768 BTU/h
Installation method: Hot swappable, supports front and rear airflow direction
Redundancy: Supports dual power module redundancy configuration to improve system availability
Power module options
AC power module: 550W, supports front and rear airflow direction
DC power module: 550W, supports front and rear airflow direction
package contents
Two 550W power modules
Several fan modules
Power cord (configured according to region)
Precautions for use
Suggest using dual module redundant configuration to ensure power supply reliability
When installing or replacing power modules, follow the hot plug operation specifications
Ensure that the power type (AC or DC) matches the cabinet and power supply environment

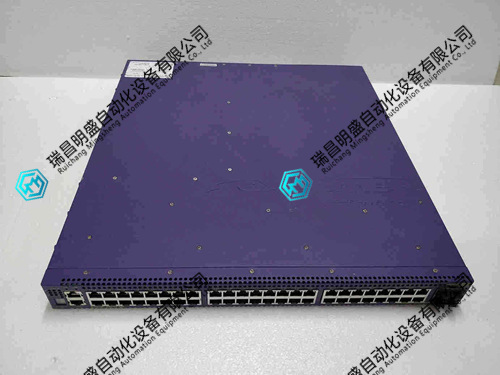

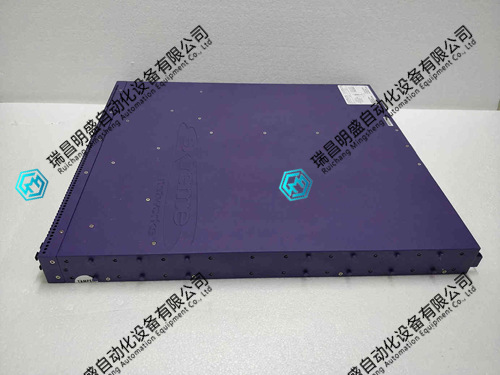

Extreme Networks X770-32Q电源模块 产品展示
