Extreme Networks X670V-48T交换机 PDF资料
1.产 品 资 料 介 绍：
X670V-48T 交换机产品特点
产品简介
X670V-48T 是 Extreme Networks Summit 系列的一款高性能可堆叠 10 千兆以太网交换机，主要面向企业数据中心和核心网络。该交换机提供高密度端口和灵活的堆叠能力，适合对带宽和可靠性要求较高的环境。
主要特点
端口配置：48 个 10GBASE-T RJ-45 端口，支持 10/100/1000/10000 Mbps 自适应速率。
组合端口：4 个组合端口，支持 10GBASE-T 或 10GBASE-X SFP+。
上行接口：4 个 40GBASE-X QSFP+ 上行端口，可用于高速连接或堆叠。
堆叠能力：通过 SummitStack-V 技术支持多台交换机堆叠，堆叠带宽高达 320 Gbps。
模块扩展：提供 VIM4 插槽，可安装 VIM4-40G4X 模块，增加 4 个 40GBASE-X QSFP+ 端口。
管理接口：包含 1 个 10/100/1000 Mbps 管理端口和 1 个串行控制台端口，支持远程及本地管理。
电源配置：支持双冗余、热插拔电源模块，提供 AC 和 DC 电源选项。
操作系统：运行 ExtremeXOS，支持统一管理和配置。
物理规格
尺寸：高 4.4 cm，宽 44.1 cm，深 51.9 cm，适合 1U 机架安装。
重量：约 7.0 kg。
性能指标
交换容量：1280 Gbps
转发速率：952 Mpps
MAC 地址表大小：128,000 条
延迟：小于 3.3 微秒
应用场景
企业数据中心核心交换
高性能计算与虚拟化环境
大规模堆叠部署
高带宽应用，如高清视频流或大数据分析
使用注意事项
堆叠配置前需规划链路和冗余策略。
确认上行端口和堆叠端口带宽满足网络流量需求。
定期升级固件以保证性能与安全性。
Extreme Networks X670V-48T交换机 英文介绍
X670V-48T Switch Product Features
Product Introduction
X670V-48T is a high-performance stackable 10 Gigabit Ethernet switch from the Extreme Networks Summit series, primarily designed for enterprise data centers and core networks. This switch provides high-density ports and flexible stacking capabilities, suitable for environments with high bandwidth and reliability requirements.
Main Features
Port configuration: 48 10GBASE-T RJ-45 ports, supporting adaptive speeds of 10/100/1000/10000 Mbps.
Combination ports: 4 combination ports, supporting 10GBASE-T or 10GBASE-X SFP+.
Upstream interface: 4 40GBASE-X QSFP+upstream ports, suitable for high-speed connection or stacking.
Stacking capability: Multiple switches can be stacked using SummitStack-V technology, with a stacking bandwidth of up to 320 Gbps.
Module Expansion: Provides VIM4 slot for installing VIM4-40G4X modules, adding 4 40GBASE-X QSFP+ports.
Management interface: includes 1 10/100/1000 Mbps management port and 1 serial console port, supporting remote and local management.
Power configuration: Supports dual redundant, hot swappable power modules, providing AC and DC power options.
Operating System: Runs ExtremeXOS and supports unified management and configuration.
Physical specifications
Dimensions: Height 4.4 cm, Width 44.1 cm, Depth 51.9 cm, suitable for 1U rack installation.
Weight: Approximately 7.0 kg.
performance metrics
Switching capacity: 1280 Gbps
Forwarding rate: 952 Mpps
MAC address table size: 128000 entries
Delay: less than 3.3 microseconds
Application scenarios
Enterprise Data Center Core Exchange
High performance computing and virtualization environment
Large scale stacking deployment
High bandwidth applications, such as high-definition video streaming or big data analytics
Precautions for use
Link and redundancy strategies need to be planned before stacking configurations.
Confirm that the bandwidth of the upstream and stacked ports meets the network traffic requirements.
Regularly upgrade firmware to ensure performance and security.

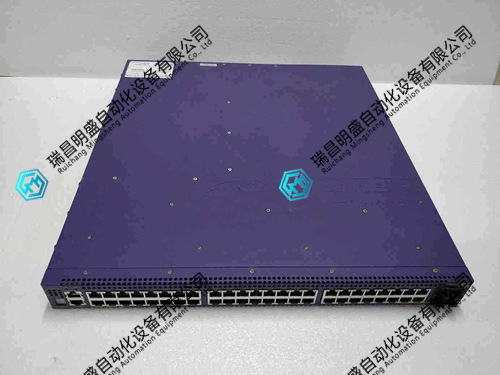

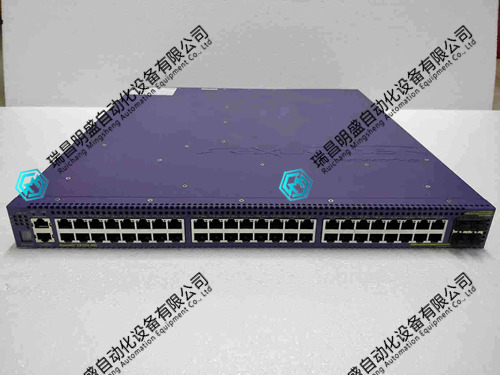

Extreme Networks X670V-48T交换机 产品展示
