Extreme Networks 7H4382-49端口光学板 PDF资料
1.产 品 资 料 介 绍：
Enterasys 7H4382-49 端口光学板
一、产品简介
Enterasys 7H4382-49 是 Matrix / DFE 系列中的高密度交换模块，主要提供 48 个 10/100 Mbps 以太网端口，并可选配“端口光学板”，扩展若干个光纤接口。该模块用于机箱式网络系统中，负责数据交换、转发和上联通信。
二、光学板作用
光学板用于扩展模块的上联能力，提供额外的光纤接口。
支持远距离链路连接，实现铜缆与光纤混合部署。
通过内部总线与主模块通信，共享数据交换与流量控制功能。
适用于需要高速或长距离传输的应用场景。
三、产品特性
具备 48 个 10/100Base-TX 电口 + 若干光纤端口。
支持自动协商与全双工通信。
模块具备桥接与转发功能，可连接不同背板总线。
支持 QoS 流量控制、优先级管理、带宽分配等功能。
可通过系统管理接口进行配置和监控。
四、应用领域
| 应用场景 | 说明 |
|---|---|
| 企业核心网络 | 用于大型企业或校园网的核心层，实现模块间及上联的光纤连接。 |
| 数据中心 | 作为机箱系统内部或机架间的光纤汇聚节点，提高网络带宽。 |
| 工业控制网络 | 应用于工厂自动化或过程控制系统，实现可靠的光纤通信。 |
| 通信与运营商网络 | 作为边缘或汇聚节点，连接上级核心交换设备。 |
| 政府与教育网络 | 提供灵活的光电混合端口结构，便于扩展与升级。 |
Extreme Networks 7H4382-49端口光学板 英文介绍
Enterasys 7H4382-49 port optical board
1、 Product Introduction
Enterasys 7H4382-49 is a high-density switching module in the Matrix/DFE series, which mainly provides 48 10/100 Mbps Ethernet ports and can be optionally equipped with a "port optical board" to expand several fiber optic interfaces. This module is used in chassis based network systems, responsible for data exchange, forwarding, and uplink communication.
2、 Optical plate function
The optical board is used to expand the uplink capability of the module and provide additional fiber optic interfaces.
Support long-distance link connection and achieve mixed deployment of copper cables and optical fibers.
Communicate with the main module through an internal bus to share data exchange and flow control functions.
Suitable for application scenarios that require high-speed or long-distance transmission.
3、 Product Features
Equipped with 48 10/100Base TX electrical ports and several fiber optic ports.
Support automatic negotiation and full duplex communication.
The module has bridging and forwarding functions and can connect different backplane buses.
Support QoS traffic control, priority management, bandwidth allocation, and other functions.
It can be configured and monitored through the system management interface.
4、 Application Fields
Application scenario description
The enterprise core network is used as the core layer of large enterprises or campus networks to achieve fiber optic connections between modules and upstream connections.
The data center serves as a fiber optic aggregation node within the chassis system or between racks, increasing network bandwidth.
Industrial control networks are applied to factory automation or process control systems to achieve reliable fiber optic communication.
Communication and operator networks serve as edge or aggregation nodes, connecting higher-level core switching devices.
The government and education network provide flexible optoelectronic hybrid port structures for easy expansion and upgrading.

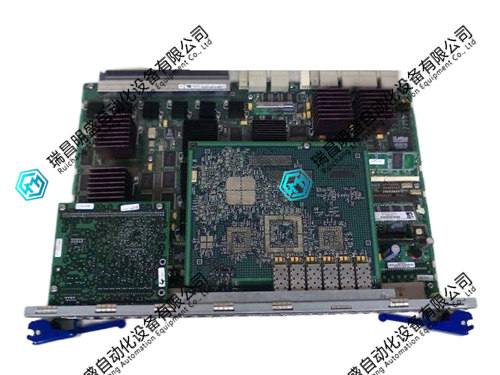

Extreme Networks 7H4382-49端口光学板 产品展示
