Extreme Networks BDXB-100G4X-XL端口模块 PDF资料

1.产 品 资 料 介 绍：

Extreme Networks BDXB-100G4X-XL（型号 48062）是为 BlackDiamond X8 系列交换机设计的高性能交换模块，提供 4 个 100GBASE-X CFP2 接口，适用于高密度、高带宽的网络环境。

核心规格

• 模块类型：交换线路卡

• 上行端口：4 个 100GBASE-X CFP2 接口，或配置为 40 个 10GBASE-X SFP+ 接口

• 适配平台：ExtremeSwitching X8 系列交换机

• TCAM 容量：支持约 100 万条 TCAM 条目

• 机箱支持：在 BDX8 机箱中最多可安装 8 个该模块，支持高达 32 个 100G 或 320 个 10G 端口

• 交换容量：兼容 2.56 Tbps 或 5.12 Tbps 的交换背板

• 模块编号：48062

应用场景

BDXB-100G4X-XL 模块适用于以下场景：

• 数据中心骨干网络：在核心交换节点之间提供高速互联，满足大流量数据传输需求。

• 叶-脊架构：作为 spine 节点，连接多个 leaf 节点，实现高效的数据交换。

• 高性能计算环境：支持大规模并行计算和数据处理，满足高带宽、低延迟的要求。

• 企业核心网络：在企业核心交换机中提供高速连接，支持大规模用户接入和数据传输。

优势特点

• 高密度端口：每个模块提供 4 个 100G 或 40 个 10G 端口，节省机箱空间。

• 灵活部署：支持与其他速率模块混插，构建多层次网络架构。

• 高性能转发：支持线速转发，确保在高流量条件下维持低延迟和高吞吐量。

• 模块化设计：支持热插拔，便于维护和扩展。

• 广泛兼容性：支持多种光模块和 DAC，适应不同的部署需求。

Extreme Networks BDXB-100G4X-XL端口模块 英文介绍

Extreme Networks BDXB-100G4X-XL (model 48062) is a high-performance switching module designed for BlackDiamond X8 series switches, providing four 100GBASE-X CFP2 interfaces, suitable for high-density, high bandwidth network environments.

Core specifications

Module type: Switching line card

Upstream ports: 4 100GBASE-X CFP2 interfaces, or configured with 40 10GBASE-X SFP+interfaces

Adaptation platform: ExtremeSwitching X8 series switches

TCAM capacity: supports approximately 1 million TCAM entries

Chassis support: Up to 8 modules can be installed in the BDX8 chassis, supporting up to 32 100G or 320 10G ports

Switching capacity: compatible with 2.56 Tbps or 5.12 Tbps switching backboards

Module Number: 48062

Application scenarios

The BDXB-100G4X-XL module is suitable for the following scenarios:

Backbone network of data center: Provides high-speed interconnection between core switching nodes to meet the needs of high traffic data transmission.

Leaf spine architecture: As a spine node, it connects multiple leaf nodes to achieve efficient data exchange.

High performance computing environment: supports large-scale parallel computing and data processing, meeting the requirements of high bandwidth and low latency.

Enterprise Core Network: Provides high-speed connectivity in enterprise core switches, supporting large-scale user access and data transmission.

Advantages and Features

High density ports: Each module provides 4 100G or 40 10G ports, saving chassis space.

Flexible deployment: Supports mixing with other rate modules to build a multi-level network architecture.

High performance forwarding: Supports line speed forwarding to ensure low latency and high throughput under high traffic conditions.

Modular design: Supports hot swapping, making it easy to maintain and expand.

Wide compatibility: Supports multiple optical modules and DACs to meet different deployment requirements.

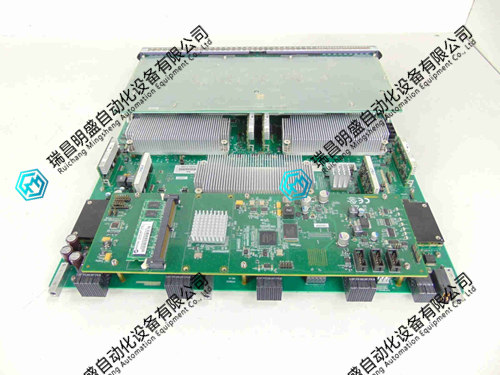

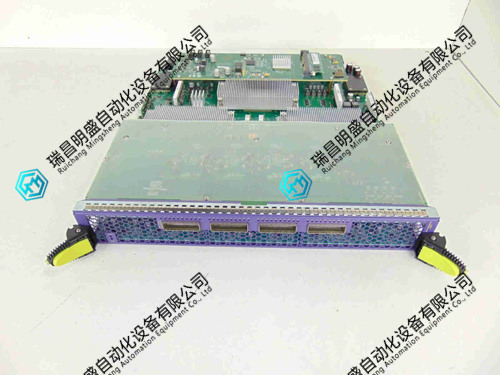

Extreme Networks BDXB-100G4X-XL端口模块 产品展示
