Extreme Networks BDXA-40G24X交换机模块 PDF资料
1.产 品 资 料 介 绍：
Extreme Networks BDXA-40G24X（模块号 48051）是为 BlackDiamond X8 系列交换机设计的高密度 40G 光口交换模块，提供 24 个 QSFP+ 接口，适用于数据中心和企业核心网络的高速连接需求。
核心规格
端口配置：24 个 40G QSFP+ 光口
适配平台：BlackDiamond X8 系列机箱
模块类型：交换模块
性能：支持高达 40 Gbps 的数据传输速率
尺寸：3.0 英寸高 × 17.0 英寸宽 × 18.0 英寸深
最大插槽数：每个机箱最多可插入 8 块此类模块
兼容性：支持多种光模块和直连铜缆（DAC）
应用场景
BDXA-40G24X 模块适用于以下场景：
数据中心骨干网络：在核心交换节点之间提供高速互联，满足大流量数据传输需求。
叶-脊架构：作为 spine 节点，连接多个 leaf 节点，实现高效的数据交换。
高性能计算环境：支持大规模并行计算和数据处理，满足高带宽、低延迟的要求。
企业核心网络：在企业核心交换机中提供高速连接，支持大规模用户接入和数据传输。
优势特点
高密度端口：每个模块提供 24 个 40G 光口，节省机箱空间。
灵活部署：支持与其他速率模块混插，构建多层次网络架构。
高性能转发：支持线速转发，确保在高流量条件下维持低延迟和高吞吐量。
模块化设计：支持热插拔，便于维护和扩展。
广泛兼容性：支持多种光模块和 DAC，适应不同的部署需求。
Extreme Networks BDXA-40G24X交换机模块 英文介绍
Extreme Networks BDXA-40G24X (module number 48051) is a high-density 40G optical port switching module designed for BlackDiamond X8 series switches, providing 24 QSFP+interfaces and suitable for high-speed connectivity needs in data centers and enterprise core networks.
Core specifications
Port configuration: 24 40G QSFP+optical ports
Adaptation platform: BlackDiamond X8 series chassis
Module type: Exchange module
Performance: Supports data transmission rates up to 40 Gbps
Size: 3.0 inches high x 17.0 inches wide x 18.0 inches deep
Maximum number of slots: Each chassis can accommodate up to 8 modules of this type
Compatibility: Supports multiple optical modules and direct copper cables (DAC)
Application scenarios
The BDXA-40G24X module is suitable for the following scenarios:
Backbone network of data center: Provides high-speed interconnection between core switching nodes to meet the needs of high traffic data transmission.
Leaf spine architecture: As a spine node, it connects multiple leaf nodes to achieve efficient data exchange.
High performance computing environment: supports large-scale parallel computing and data processing, meeting the requirements of high bandwidth and low latency.
Enterprise Core Network: Provides high-speed connectivity in enterprise core switches, supporting large-scale user access and data transmission.
Advantages and Features
High density ports: Each module provides 24 40G optical ports, saving chassis space.
Flexible deployment: Supports mixing with other rate modules to build a multi-level network architecture.
High performance forwarding: Supports line speed forwarding to ensure low latency and high throughput under high traffic conditions.
Modular design: Supports hot swapping, making it easy to maintain and expand.
Wide compatibility: Supports multiple optical modules and DACs to meet different deployment requirements.

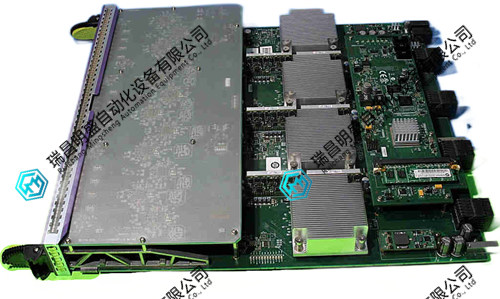

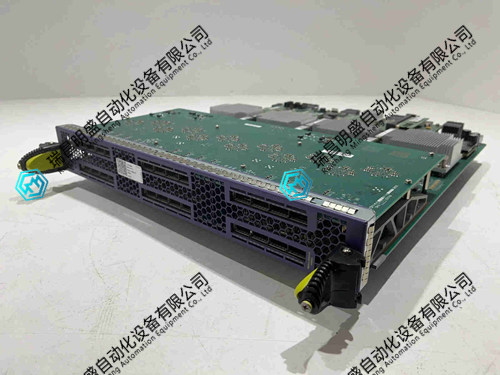

Extreme Networks BDXA-40G24X交换机模块 产品展示
