AMAT Applied Materials 531796-2 9005保险丝板 PDF资料
1.产 品 资 料 介 绍：
一、产品概述
AMAT Applied Materials 531796-2 9005 保险丝板是一款用于半导体设备电源保护的电路板组件。该模块主要用于为各分支电路提供过流保护与电源分配功能，是 AMAT 晶圆处理与真空系统中关键的电气安全部件之一。
它通过在主电源与下游控制板、驱动单元之间安装独立保险丝，实现电流过载保护，防止电路及元件损坏。
二、技术参数
以下参数为同类 AMAT 保险丝板的典型规格，531796-2 属于其中的高可靠型版本：
产品型号：531796-2 / 9005
产品类型：Fuse Board（保险丝板）
主要功能：过流保护、电源分配
适用系统：Applied Materials 主控机架、电源控制框架
输入电压范围：DC 24V / 48V 或 AC 115V（取决于配置）
保险丝规格：
快速熔断型（Fast-Acting）
典型额定值：1A–10A，可根据回路不同配置
接口类型：多针端子 / PCB 插槽接口
板材类型：多层玻纤板，阻燃等级 FR-4
工作环境温度：0 °C – 55 °C
结构尺寸：标准 6U 插板尺寸（约 233 × 160 mm）
版本号：Rev.E（部分批次印刷）
AMAT Applied Materials 531796-2 9005保险丝板 英文介绍
1、 Product Overview
AMAT Applied Materials 531796-2 9005 fuse board is a circuit board component used for power protection of semiconductor equipment. This module is mainly used to provide overcurrent protection and power distribution functions for various branch circuits, and is one of the key electrical safety components in AMAT wafer processing and vacuum systems.
It achieves current overload protection and prevents circuit and component damage by installing independent fuses between the main power supply and downstream control boards and drive units.
2、 Technical parameters
The following parameters are typical specifications of similar AMAT fuse boards, and 531796-2 belongs to the high reliability version:
Product Model: 531796-2/9005
Product type: Fuse Board
Main functions: overcurrent protection, power distribution
Applicable systems: Applied Materials main control rack, power control framework
Input voltage range: DC 24V/48V or AC 115V (depending on configuration)
Fuse specifications:
Fast Acting type
Typical rated value: 1A – 10A, can be configured according to different circuits
Interface type: Multi pin terminal/PCB slot interface
Board type: multi-layer fiberglass board, flame retardant grade FR-4
Working environment temperature: 0 ° C -55 ° C
Structural dimensions: Standard 6U plug-in board size (approximately 233 × 160 mm)
Version number: Rev. E (partial batch printing)

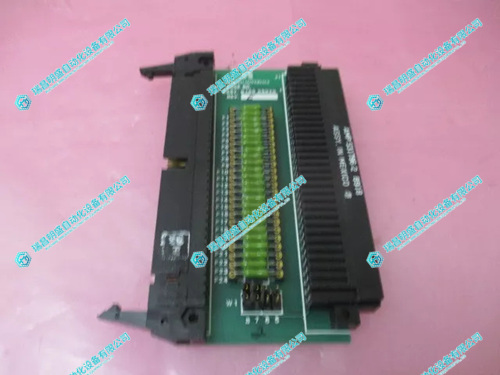

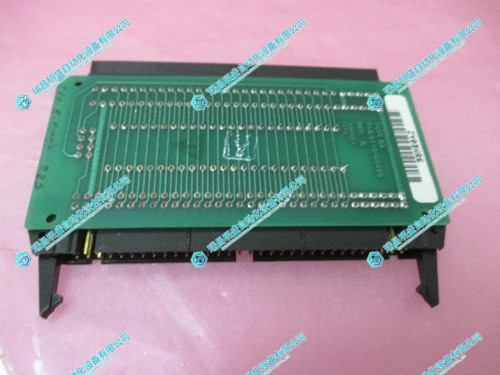

AMAT Applied Materials 531796-2 9005保险丝板 产品展示
