AMAT Applied Materials 0190-00405驱动硬盘 PDF资料
1.产 品 资 料 介 绍：
一、产品概述
AMAT Applied Materials 0190-00405 是一款专用于 AMAT 半导体制造设备的 工业级驱动硬盘模块（Industrial Hard Disk Drive Assembly），主要用于 设备控制计算机（Controller PC）或工艺控制单元（Process Controller） 的系统存储与数据运行支持。
该硬盘模块用于存储 设备操作系统、工艺配方（Recipe）、设备参数文件、运行日志、报警记录 等关键数据，是 AMAT 系统控制架构中核心的信息存储与启动单元。
与普通商用硬盘不同，0190-00405 采用 高可靠性、抗震动、长寿命的工业级磁盘设计，确保设备在真空、高温、震动等复杂工艺环境中仍能稳定运行。
二、技术参数（典型规格）
产品类型：工业级硬盘驱动器（Industrial HDD / Drive Assembly）
容量范围：40 GB ～ 160 GB（视具体系统版本而定）
接口类型：IDE / SATA / SCSI（根据配套控制计算机型号）
转速：5400 RPM 或 7200 RPM
平均寻道时间：8–12 ms
工作电压：+5 V / +12 V DC
运行温度：0～60°C（工业环境）
抗震性能：运行时 2G，非运行时 300G
安装方式：嵌入 AMAT 控制机箱内部的专用硬盘托架
支持系统：AMAT Centura、Endura、Producer、P5000、DPS、EPI 等主控平台
三、产品特点
高可靠性工业级设计
0190-00405 硬盘专为 AMAT 半导体设备设计，采用工业级磁头与电机系统。
支持长时间连续运行（MTBF > 50,000 小时），适合 24/7 连续生产环境。
加强内部减震机构与抗振电路，确保在真空泵、气体面板及射频系统干扰下稳定运行。
数据完整性保障
具备断电保护、ECC 自动纠错、SMART 健康监测功能。
提供高速缓存机制，提高系统数据读写的可靠性与响应速度。
支持系统冗余备份，可在设备重启后快速恢复运行状态。
AMAT Applied Materials 0190-00405驱动硬盘 英文介绍
1、 Product Overview
AMAT Applied Materials 0190-00405 is an industrial hard disk drive assembly specifically designed for AMAT semiconductor manufacturing equipment. It is primarily used for system storage and data operation support in equipment control computers (Controller PCs) or process control units (Process Controllers).
This hard disk module is used to store key data such as device operating systems, process recipes, device parameter files, operation logs, alarm records, etc. It is the core information storage and boot unit in the AMAT system control architecture.
Unlike ordinary commercial hard drives, 0190-00405 adopts an industrial grade disk design with high reliability, anti vibration, and long lifespan, ensuring that the equipment can still operate stably in complex process environments such as vacuum, high temperature, and vibration.
2、 Technical parameters (typical specifications)
Product Type: Industrial HDD/Drive Assembly
Capacity range: 40 GB to 160 GB (depending on the specific system version)
Interface type: IDE/SATA/SCSI (depending on the matching control computer model)
Speed: 5400 RPM or 7200 RPM
Average seek time: 8-12 ms
Working voltage:+5 V/+12 V DC
Operating temperature: 0-60 ° C (industrial environment)
Seismic performance: 2G during operation, 300G during non operation
Installation method: A dedicated hard drive rack embedded inside the AMAT control chassis
Supporting systems: AMAT Centura, Endura, Producer, P5000, DPS, EPI and other main control platforms
3、 Product Features
High reliability industrial grade design
The 0190-00405 hard drive is designed specifically for AMAT semiconductor equipment, using industrial grade magnetic heads and motor systems.
Supports long-term continuous operation (MTBF>50000 hours), suitable for 24/7 continuous production environments.
Strengthen internal shock absorption mechanisms and anti vibration circuits to ensure stable operation under interference from vacuum pumps, gas panels, and RF systems.
Data integrity assurance
Equipped with power-off protection, ECC automatic error correction, and SMART health monitoring functions.
Provide a high-speed caching mechanism to improve the reliability and response speed of system data reading and writing.
Support system redundancy backup, which can quickly restore the running state after device restart.

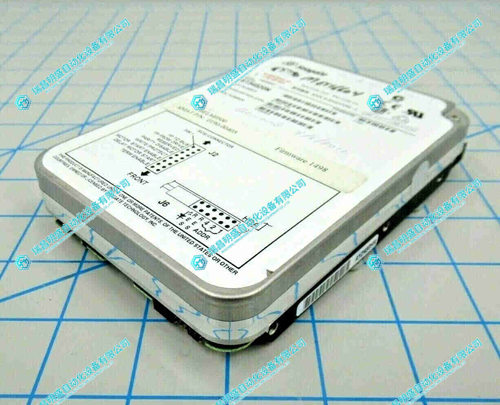

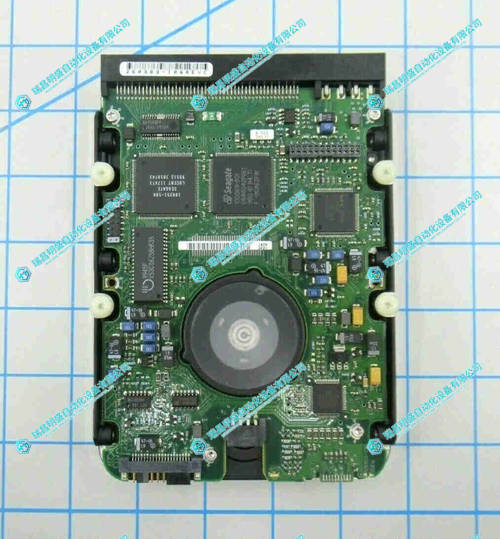

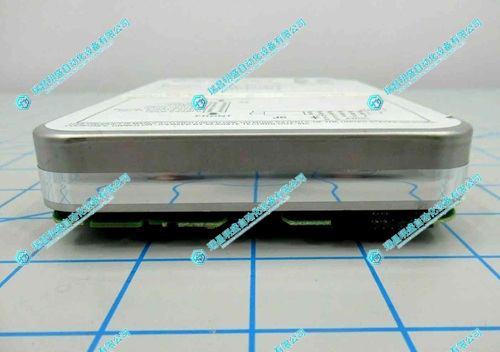

AMAT Applied Materials 0190-00405驱动硬盘 产品展示
