FORCE COMPUTERS CPU-30电路板模块 PDF资料
1.产 品 资 料 介 绍：
产品概述
FORCE COMPUTERS CPU-30 是一款 嵌入式单板计算机（SBC）模块，用于工业自动化、嵌入式控制和通信系统。该板卡集成 处理器、内存、I/O 接口和总线接口，可在 VME、cPCI 或 PC/104 系统中作为核心控制单元使用。CPU-30 以 高可靠性、工业级设计和灵活扩展性 为特点，适合长期连续运行环境。
技术参数（典型特征）
处理器：Intel 或 PowerPC 系列（具体型号根据版本不同）
缓存：板载一级/二级缓存，用于提升运算效率
内存：板载 SDRAM，容量通常 64MB~512MB，可扩展
存储接口：板载 Flash/EEPROM，用于固件和启动程序
总线接口：
支持 VME、cPCI 或 PC/104（根据配置）
高速数据传输，兼容工业总线标准
I/O 接口：
多路串口（RS-232 / RS-422 / RS-485）
并口或 GPIO
以太网接口（10/100 Mbps，可选千兆）
操作系统支持：VxWorks、Linux、Windows Embedded 等
电源：板载稳压设计，兼容工业背板供电
工业级设计：支持宽温运行、抗振动和抗冲击能力
应用场景
工业自动化：PLC、机器人和生产线控制核心
嵌入式系统：数据采集、处理和实时控制
通信系统：交换机、基站或嵌入式网络节点
交通控制：铁路、地铁及航空地面控制系统
测试与测量系统：高速数据采集与仪器控制
FORCE COMPUTERS CPU-30电路板模块 英文资料：
Product Overview
FORCE COMPUTERS CPU-30 is an embedded single board computer (SBC) module used in industrial automation, embedded control, and communication systems. This board integrates processors, memory, I/O interfaces, and bus interfaces, and can be used as a core control unit in VME, cPCI, or PC/104 systems. CPU-30 is characterized by high reliability, industrial grade design, and flexible scalability, making it suitable for long-term continuous operation environments.
Technical parameters (typical features)
Processor: Intel or PowerPC series (specific model varies depending on version)
Cache: On board first/second level cache, used to improve computational efficiency
Memory: onboard SDRAM, typically 64MB~512MB in capacity, expandable
Storage interface: onboard Flash/EEPROM, used for firmware and boot programs
Bus interface:
Supports VME, cPCI, or PC/104 (depending on configuration)
High speed data transmission, compatible with industrial bus standards
I/O interface:
Multiple serial ports (RS-232/RS-422/RS-485)
Parallel port or GPIO
Ethernet interface (10/100 Mbps, optional gigabit)
Operating system support: VxWorks, Linux, Windows Embedded, etc
Power supply: Onboard voltage regulation design, compatible with industrial backplane power supply
Industrial grade design: supports wide temperature operation, anti vibration and anti impact capabilities
Application scenarios
Industrial Automation: PLC, Robotics, and Production Line Control Core
Embedded systems: data acquisition, processing, and real-time control
Communication system: switches, base stations, or embedded network nodes
Traffic control: Ground control systems for railways, subways, and aviation
Testing and Measurement System: High speed Data Acquisition and Instrument Control

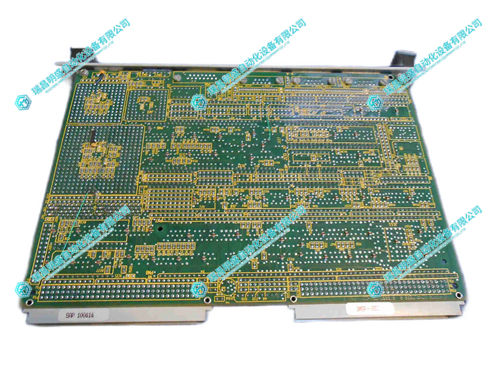

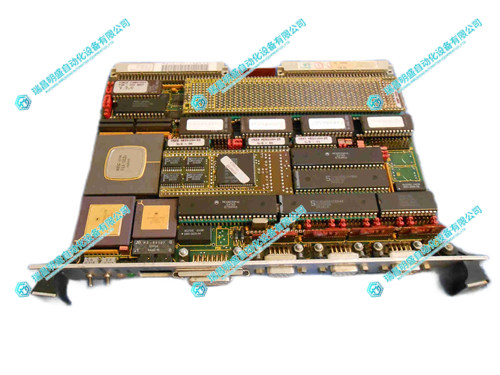

FORCE COMPUTERS CPU-30电路板模块 产品展示
