FORCE COMPUTERS CPU-23XB 单板计算机 PDF资料
1.产 品 资 料 介 绍：
产品概述
FORCE COMPUTERS CPU-23XB 是一款高性能 嵌入式单板计算机（SBC），适用于工业控制、嵌入式系统和通信设备。它集成 处理器、内存、I/O 接口，可在紧凑型 VME 或 PC/104 等总线系统中作为核心控制单元使用。该板卡以 可靠性高、扩展灵活 为特点，适合对连续运行和实时控制有要求的环境。
技术参数（典型特征）
处理器：Intel 或 PowerPC 系列（具体型号视版本而定），主频可达数百 MHz
缓存：一级/二级缓存配置（视 CPU 型号而定）
内存：板载 SDRAM，容量通常 64MB~512MB，可通过扩展插槽增加
存储接口：板载 Flash/EEPROM，用于固件和启动程序
总线接口：
VME、PC/104 或 ISA/PCI 总线可选
支持高速数据传输与系统扩展
I/O 接口：
多路串口（RS-232/RS-422/RS-485）
并口或 GPIO
以太网接口（10/100 Mbps）
操作系统支持：VxWorks、Linux、Windows Embedded 等嵌入式系统
电源：板载稳压设计，兼容标准背板供电
环境适应性：工业级设计，支持宽温和抗振动、抗冲击
应用场景
工业自动化：PLC、机器人和运动控制系统的核心控制单元
嵌入式计算平台：数据采集、处理和通信控制
电信与网络：交换机、基站或边缘计算节点
交通控制系统：铁路、地铁信号及调度控制
测试与测量系统：高速数据采集和仪器控制
FORCE COMPUTERS CPU-23XB 单板计算机 英文资料：
Product Overview
FORCE COMPUTERS CPU-23XB is a high-performance embedded single board computer (SBC) suitable for industrial control, embedded systems, and communication devices. It integrates processors, memory, and I/O interfaces and can be used as the core control unit in compact bus systems such as VME or PC/104. This board is characterized by high reliability and flexible expansion, making it suitable for environments that require continuous operation and real-time control.
Technical parameters (typical features)
Processor: Intel or PowerPC series (specific model depends on version), with a clock speed of several hundred MHz
Cache: Level 1/Level 2 cache configuration (depending on CPU model)
Memory: onboard SDRAM, typically 64MB~512MB in capacity, can be increased through expansion slots
Storage interface: onboard Flash/EEPROM, used for firmware and boot programs
Bus interface:
VME, PC/104, or ISA/PCI buses are optional
Support high-speed data transmission and system expansion
I/O interface:
Multi channel serial port (RS-232/RS-422/RS-485)
Parallel port or GPIO
Ethernet interface (10/100 Mbps)
Operating system support: VxWorks, Linux, Windows Embedded and other embedded systems
Power supply: Onboard voltage regulation design, compatible with standard backplane power supply
Environmental adaptability: Industrial grade design, supporting wide temperature, vibration resistance, and impact resistance
Application scenarios
Industrial Automation: The Core Control Unit for PLCs, Robots, and Motion Control Systems
Embedded computing platform: data acquisition, processing, and communication control
Telecommunication and network: switch, base station or edge computing node
Traffic Control System: Railway, Subway Signal and Dispatch Control
Testing and Measurement System: High speed Data Acquisition and Instrument Control

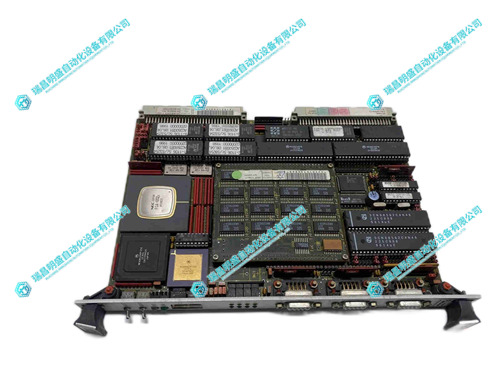

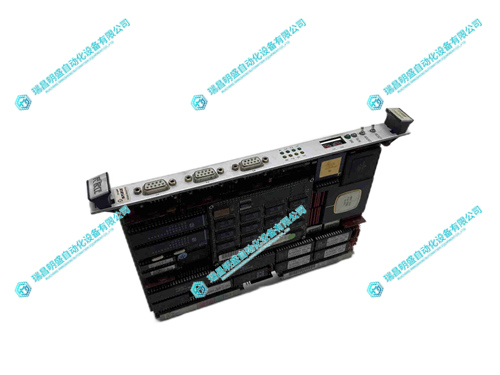

FORCE COMPUTERS CPU-23XB 单板计算机 产品展示
