Motorola MVME7100-0173 通讯模块 PDF资料
1.产 品 资 料 介 绍：
产品概述
Motorola MVME7100-0173 是 MVME7100 系列单板计算机（SBC） 的通讯扩展模块，用于 VME 总线系统中，实现 高速数据传输和外部设备接口管理。该模块与 MVME7100 系列主板配合使用，可为工业、国防和通信系统提供可靠的通讯能力。
技术参数（参考同系列通讯模块特性）
总线接口：VME64 总线，兼容 A24/A32 地址模式和 D32/D64 数据宽度
处理能力：依赖主 CPU 模块，模块自身主要负责 I/O 管理
通讯接口类型：
串行接口（RS-232 / RS-422 / RS-485 多通道，可同时运行）
以太网接口（10/100Mbps，可选）
可支持专用总线或工业协议接口
缓冲与中断：集成 FIFO 缓冲区，支持中断触发，降低主板 CPU 负载
电源：通过 VME 背板供电（+5V / ±12V）
工作环境：工业级设计，支持连续运行及宽温度范围
产品应用场景
工业自动化：PLC、传感器和执行器之间的数据通讯与控制
电信系统：交换机、基站、信号节点的数据接口管理
军事与航空：嵌入式指挥控制系统的数据收发模块
交通控制：铁路、地铁信号系统的数据通讯接口
测试与测量：与仪器设备主控板配合，实现高速数据采集和通讯
产品特点
多通道通信：支持多路串行接口，便于系统内并行数据传输
高可靠性：工业级设计，适合连续 7×24 小时运行
降低主 CPU 负载：板载 FIFO 缓冲和中断机制，实现高效数据处理
兼容性好：与 MVME7100 系列 CPU 模块及 VME 总线系统无缝集成
应用灵活：支持 RS-232、RS-422、RS-485 等多种工业通信标准
Motorola MVME7100-0173 通讯模块 英文资料：
Product Overview
Motorola MVME7100-0173 is a communication expansion module for MVME7100 series single board computers (SBC), used in VME bus systems to achieve high-speed data transmission and external device interface management. This module, when used in conjunction with the MVME7100 series motherboard, can provide reliable communication capabilities for industrial, defense, and communication systems.
Technical parameters (refer to the characteristics of communication modules in the same series)
Bus interface: VME64 bus, compatible with A24/A32 address mode and D32/D64 data width
Processing capability: dependent on the main CPU module, the module itself is mainly responsible for I/O management
Communication interface type:
Serial interface (RS-232/RS-422/RS-485 multi-channel, can run simultaneously)
Ethernet interface (10/100Mbps, optional)
Can support dedicated buses or industrial protocol interfaces
Buffer and Interrupt: Integrated FIFO buffer, supports interrupt triggering, reduces motherboard CPU load
Power supply: Powered by VME backplane (+5V/± 12V)
Work environment: Industrial grade design, supporting continuous operation and wide temperature range
Product application scenarios
Industrial automation: data communication and control between PLC, sensors, and actuators
Telecommunications system: data interface management of switches, base stations, and signal nodes
Military and Aviation: Data Transmission and Reception Module of Embedded Command and Control System
Traffic Control: Data Communication Interface for Railway and Subway Signal Systems
Testing and Measurement: Cooperate with the main control board of the instrument equipment to achieve high-speed data acquisition and communication
Product Features
Multi channel communication: supports multiple serial interfaces, facilitating parallel data transmission within the system
High reliability: Industrial grade design, suitable for continuous 7 × 24-hour operation
Reduce main CPU load: onboard FIFO buffer and interrupt mechanism for efficient data processing
Good compatibility: seamlessly integrated with MVME7100 series CPU modules and VME bus systems
Flexible application: Supports multiple industrial communication standards such as RS-232, RS-422, RS-485, etc

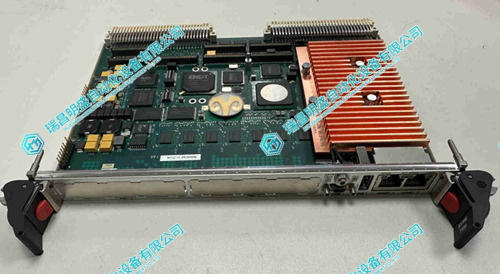

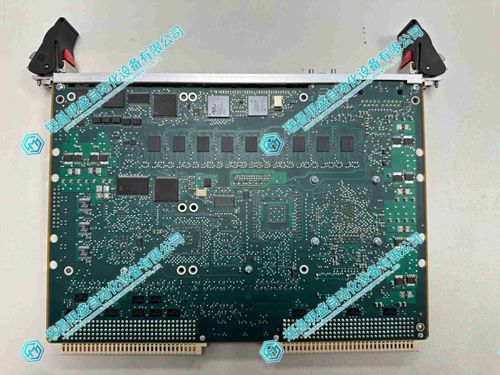

Motorola MVME7100-0173 通讯模块 产品展示
