Motorola MVME172PA-644SE自动化控制模块 PDF资料
1.产 品 资 料 介 绍：
产品概述
Motorola MVME172PA-644SE 是一款基于 Motorola 68k 系列处理器（MC68060/MC68040 可选）的 VME 总线单板计算机（SBC），专为 自动化控制与嵌入式计算 设计。它属于 MVME172 系列的扩展型号，集成了处理器、内存和多种通信接口，能够作为 工业控制系统的核心控制模块 使用。
技术参数（典型特征，参考 MVME172 系列）
处理器：Motorola MC68060（或部分版本为 MC68040），主频约 50MHz~66MHz。
内存：
DRAM（支持 16MB~64MB，部分版本可扩展至更高容量）
Flash/EPROM（用于固件和系统启动）
总线接口：符合 VMEbus 标准，可作为系统控制器运行。
I/O 接口：
串口（RS-232/RS-422，可用于终端、调试或设备通信）
以太网接口（10Mbps）
SCSI 接口（支持外部存储和外围设备）
并口和定时/中断控制接口
电源：由 VME 背板供电（+5V/±12V）。
操作系统支持：VxWorks、LynxOS、pSOS 等实时操作系统。
应用场景
工业自动化：作为生产线、机器人和数控设备的主控单元。
电信设备：在早期交换机、信号处理设备中作为嵌入式处理核心。
交通控制：铁路、地铁信号和调度系统中的逻辑与通信控制。
军事与航空航天：用于嵌入式指挥控制和数据处理平台。
测试与测量系统：作为仪器设备的数据采集和运算控制模块。
Motorola MVME172PA-644SE自动化控制模块 英文资料：
Product Overview
The Motorola MVME172PA-644SE is a VME bus single board computer (SBC) designed specifically for automation control and embedded computing, based on the Motorola 68k series processors (MC68060/MC68040 optional). It belongs to the extended model of MVME172 series, integrating a processor, memory, and multiple communication interfaces, and can be used as the core control module of industrial control systems.
Technical parameters (typical features, refer to MVME172 series)
Processor: Motorola MC68060 (or some versions of MC68040), with a clock frequency of approximately 50MHz~66MHz.
Memory:
DRAM (supports 16MB~64MB, some versions can be expanded to higher capacity)
Flash/EPROM (for firmware and system startup)
Bus interface: Complies with the VMEbus standard and can operate as a system controller.
I/O interface:
Serial port (RS-232/RS-422, can be used for terminal, debugging, or device communication)
Ethernet interface (10Mbps)
SCSI interface (supporting external storage and peripheral devices)
Parallel port and timing/interrupt control interface
Power supply: Powered by the VME backplane (+5V/± 12V).
Operating system support: real-time operating systems such as VxWorks, Lynx OS, pSOS, etc.
Application scenarios
Industrial automation: as the main control unit for production lines, robots, and CNC equipment.
Telecommunications equipment: used as an embedded processing core in early switches and signal processing devices.
Traffic control: Logic and communication control in railway, subway signal and dispatch systems.
Military and Aerospace: Used for embedded command and control and data processing platforms.
Testing and Measurement System: As a data acquisition and operation control module for instrument equipment.

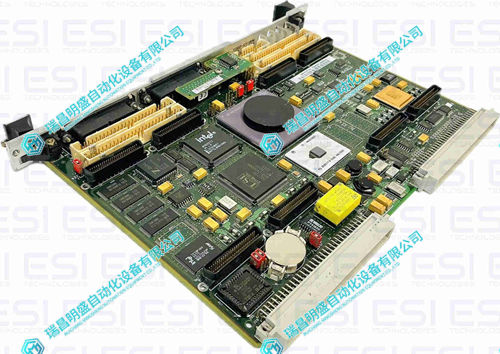

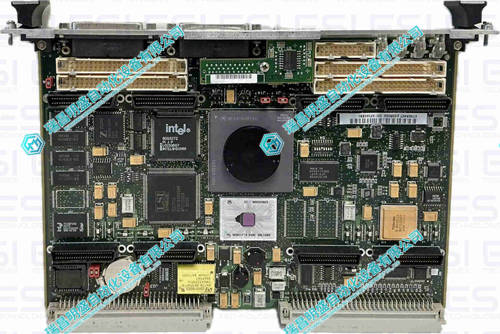

Motorola MVME172PA-644SE自动化控制模块 产品展示
