1.产 品 资 料 介 绍：
Motorola VME162PA-252SE PCB 板槽
产品概述
Motorola VME162PA-252SE 是一款 VMEbus 架构的 PCB 板槽（Backplane / Slot Module），用于 MVME162 系列嵌入式控制器系统。该模块提供 标准化的插槽接口，用于安装 CPU 模块、I/O 模块和扩展模块，实现 VME 总线系统中各模块的电气互联和高速数据传输。VME162PA-252SE 可支持多种板卡插入，并保证信号完整性和系统稳定性，是 MVME162 系列嵌入式系统的关键基础组件。
技术参数
总线接口：VMEbus 标准
支持 16/32 位数据总线
支持 A16/A24/A32 地址空间
插槽数量：根据系统设计，可支持多个 CPU/I/O/扩展模块插入
电气特性：
符合 VMEbus 电气标准
信号缓冲与保护设计，确保长期稳定运行
兼容性：与 MVME162 系列 CPU、I/O 和扩展模块完全兼容
结构设计：PCB 板槽设计便于模块插拔和维护
工作环境：工业级设计，抗干扰能力强，适合长期连续运行
应用场景
工业自动化系统
为 MVME162 系列控制器和 I/O 模块提供标准化连接，实现生产线控制。
机床与运动控制系统
提供模块化接口，用于多轴控制和状态监控模块插入。
测试与测量系统
连接数据采集、实验控制和信号处理模块。
通信与嵌入式控制系统
为嵌入式节点和协议处理模块提供可靠的总线接口。
能源与电力系统
为监控与控制模块提供电气连接，保证系统实时响应和稳定性。
Motorola VME162PA-252SE PCB板槽 英文资料：
Motorola VME162PA-252SE PCB board slot
Product Overview
Motorola VME162PA-252SE is a PCB Backplane/Slot Module with VMEbus architecture, used for MVME162 series embedded controller systems. This module provides standardized slot interfaces for installing CPU modules, I/O modules, and expansion modules, enabling electrical interconnection and high-speed data transmission of various modules in the VME bus system. VME162PA-252SE supports multiple card insertions and ensures signal integrity and system stability, making it a key foundational component of the MVME162 series embedded systems.
Technical Specifications
Bus interface: VMEbus standard
Supports 16/32-bit data bus
Support A16/A24/A32 address space
Number of slots: According to the system design, it can support the insertion of multiple CPU/I/O/expansion modules
Electrical characteristics:
Compliant with VMEbus electrical standards
Signal buffering and protection design to ensure long-term stable operation
Compatibility: Fully compatible with MVME162 series CPUs, I/O, and expansion modules
Structural design: PCB board slot design facilitates module insertion and maintenance
Work environment: Industrial grade design, strong anti-interference ability, suitable for long-term continuous operation
Application scenarios
Industrial automation system
Provide standardized connections for MVME162 series controllers and I/O modules to achieve production line control.
Machine Tool and Motion Control System
Provide modular interfaces for inserting multi axis control and status monitoring modules.
Testing and Measurement System
Connect data acquisition, experimental control, and signal processing modules.
Communication and Embedded Control Systems
Provide reliable bus interfaces for embedded nodes and protocol processing modules.
Energy and Power Systems
Provide electrical connections for monitoring and control modules to ensure real-time response and stability of the system.

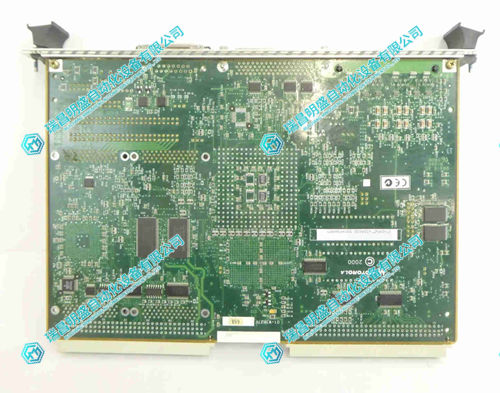

Motorola VME162PA-252SE PCB板槽 产品展示
