Motorola VME162PA-242LE嵌入式控制器 PDF资料
1.产 品 资 料 介 绍：
Motorola VME162PA-242LE 嵌入式控制器
产品概述
Motorola VME162PA-242LE 是一款基于 VMEbus 架构的嵌入式控制器模块，属于 MVME162 系列。该控制器集成了 CPU、内存、总线接口和 I/O 控制功能，用于工业自动化、机床控制、测试测量及嵌入式实时系统。它可作为系统核心计算单元，与 VME 总线及其他扩展模块协同工作，实现高速数据处理和可靠控制。
技术参数
处理器：Motorola MC68EC030/MC68030 系列 CPU
内存：
RAM：2 MB – 8 MB 可扩展
ROM/Flash：用于固件和引导程序
NVRAM：带实时时钟功能
总线接口：VMEbus 标准，支持 16/32 位数据传输
I/O 接口：
多路串行接口（RS-232/RS-422）
并行接口
定时器与看门狗功能
控制功能：
总线仲裁与 DMA 数据传输
中断管理
支持自检和状态监控
系统兼容性：支持 VxWorks、pSOS 等嵌入式实时操作系统
工作环境：工业级设计，适应宽温和长期连续运行
应用场景
工业自动化与过程控制
管理生产线、PLC 系统和工业设备的数据采集与执行控制。
机床与运动控制系统
支持多轴同步控制、脉冲输出及伺服驱动管理。
测试与测量系统
数据采集、实验设备控制和信号处理平台。
通信与嵌入式系统
嵌入式网络节点和协议处理。
能源与电力系统
发电、变电及配电系统实时监控与控制。
Motorola VME162PA-242LE嵌入式控制器 英文资料：
Motorola VME162PA-242LE Embedded Controller
Product Overview
Motorola VME162PA-242LE is an embedded controller module based on the VMEbus architecture, belonging to the MVME162 series. This controller integrates CPU, memory, bus interface, and I/O control functions, and is used for industrial automation, machine tool control, testing and measurement, and embedded real-time systems. It can serve as the core computing unit of the system, working in conjunction with the VME bus and other expansion modules to achieve high-speed data processing and reliable control.
Technical Specifications
Processor: Motorola MC68EC030/MC68030 series CPU
Memory:
RAM: 2 MB -8 MB expandable
ROM/Flash: Used for firmware and boot programs
NVRAM: with real-time clock function
Bus interface: VMEbus standard, supports 16/32-bit data transmission
I/O interface:
Multi channel serial interface (RS-232/RS-422)
Parallel Interface
Timer and watchdog function
Control function:
Bus arbitration and DMA data transfer
interrupt management
Support self inspection and status monitoring
System compatibility: Supports embedded real-time operating systems such as VxWorks and pSOS
Work environment: Industrial grade design, suitable for wide and long-term continuous operation
Application scenarios
Industrial Automation and Process Control
Manage data collection and execution control for production lines, PLC systems, and industrial equipment.
Machine Tool and Motion Control System
Support multi axis synchronous control, pulse output, and servo drive management.
Testing and Measurement System
Data collection, experimental equipment control, and signal processing platform.
Communication and Embedded Systems
Embedded network nodes and protocol processing.
Energy and Power Systems
Real time monitoring and control of power generation, transformation, and distribution systems.

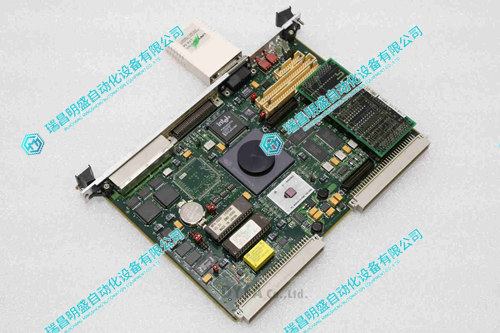

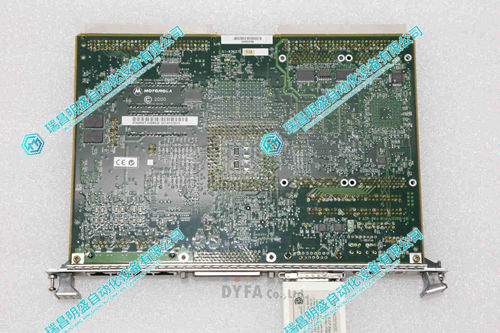

Motorola VME162PA-242LE嵌入式控制器 产品展示
