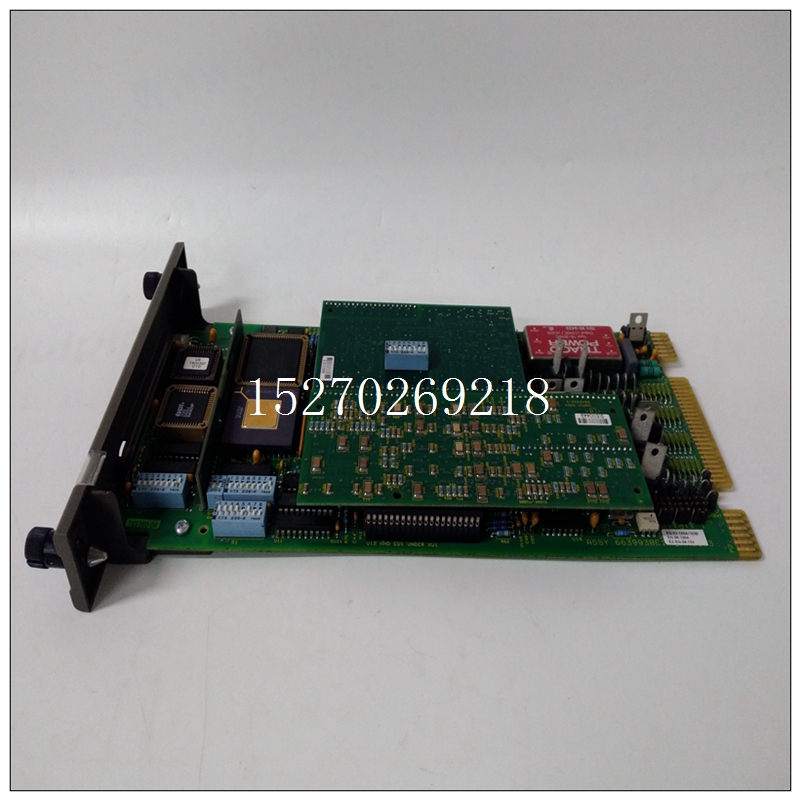

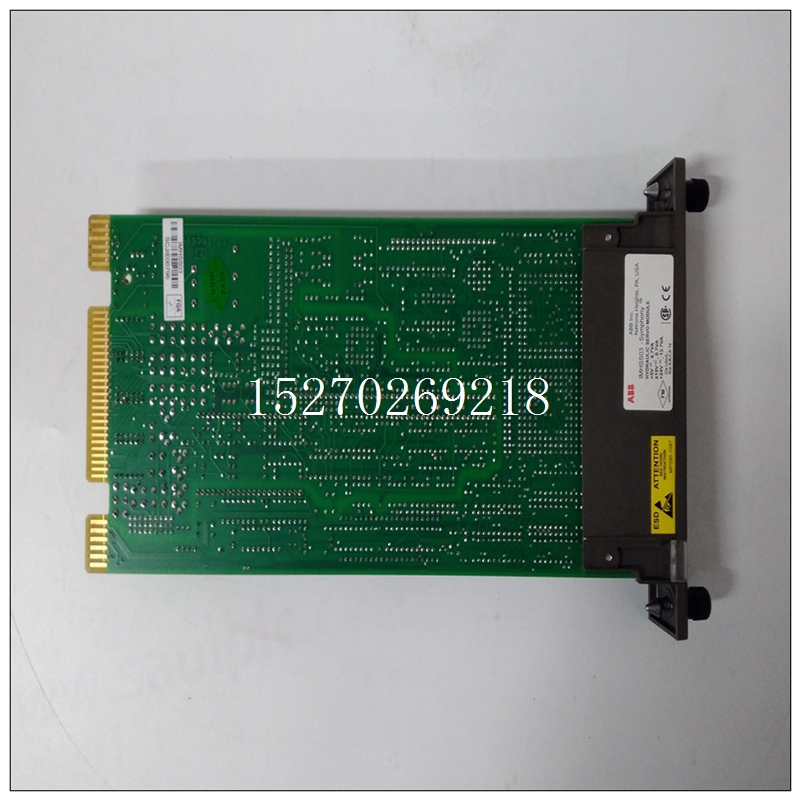

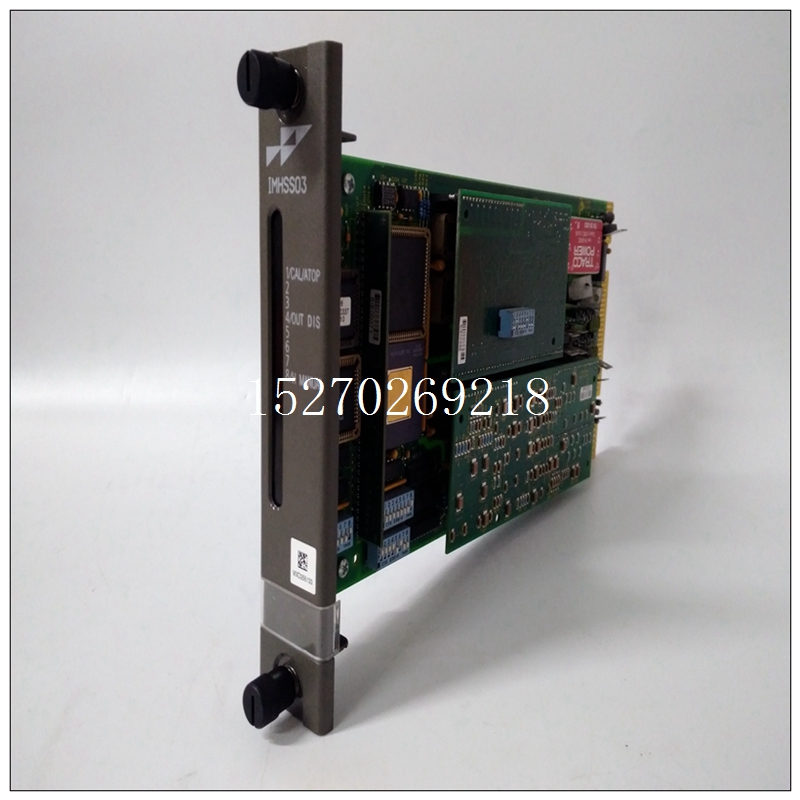

IMHSS03配置教程,ABB模件
支持SRTP通道、Modbus/TCP服务器和Modbus/TCP客户端
完整编程和配置服务
综合电站管理和诊断工具
带有内部网络的两个全双工10BaseT/100BaseT/TX（RJ-45连接器）端口提供自动协商网络速度、双工模式和交叉检测的交换机。
用户可配置的冗余IP地址
IMHSS03配置教程 以太网上SNTP时间服务器的时间同步（与Release一起使用时5.00或更高版本的CPU模块）。规格注：对于环境规范和标准符合性（例如FCC或欧盟指令），请参阅PACSystems RX7i安装手册GFK-2223的附录A。电池：关于电池的选择、安装和估计寿命，请参阅
PACSystems控制器电池和能量包手册，GFK-2741。
程序存储高达64 MB的电池支持RAM64 MB非易失性闪存用户内存功率要求：CPE030
CPE040 +5 VDC：标称3.2安培+12 VDC：标称0.003安培
-12 VDC：标称0.003安培+5 VDC：标称6.8安培+12 VDC：标称0.003安培-12 VDC：标称0.003安培工作温度：CPE030 CPE040 0至50°C（32°F至122°F）0至60°C（32°F至140°F），带风扇托盘0至60°C（32°F至140°F），需要风扇托盘布尔执行速度，典型值：CPE030
CPE040每1000个布尔触点/线圈0.069ms每1000个布尔触点/线圈0.02391ms每天时钟精度的最大漂移为±2秒经过时间时钟（内部计时）精度最大±0.01%嵌入式通信RS-232、RS-485、以太网接口串行协议支持Modbus RTU从站、SNP、串行输入/输出嵌入式自动传感10/100Mbps半/全双工以太网端口界面
VME兼容性系统设计用于支持VME64标准ANSI/VITA 1
Support for SRTP Channels, Modbus/TCP Server, and Modbus/TCP Client
Full programming and configuration services
Comprehensive station management and diagnostic tools
Two full-duplex 10BaseT/100BaseT/TX (RJ-45 Connector) ports with an internal network
switch providing auto-negotiated network speed, duplex mode, and crossover detection.
User-configurable Redundant IP address
Time synchronization to SNTP time server on Ethernet network (when used with Release
5.00 or later CPU module).Specifications
Note: For environmental specifications and compliance to standards (for example, FCC or European Union Directives),
refer to Appendix A of the PACSystems RX7i Installation Manual, GFK-2223.
Battery: Memory retention For battery selection, installation and estimated life, refer to the
PACSystems Controller Battery and Energy Pack Manual, GFK-2741.
Program storage Up to 64 Mbytes of battery-backed RAM
64 Mbytes of non-volatile flash user memory
Power requirements: CPE030
CPE040
+5 VDC: 3.2 Amps nominal
+12 VDC: 0.003 Amps nominal
-12 VDC: 0.003 Amps nominal
+5 VDC: 6.8 Amps nominal
+12 VDC: 0.003 Amps nominal
-12 VDC: 0.003 Amps nominal
Operating temperature: CPE030
CPE040
0 to 50°C (32°F to 122°F)
0 to 60°C (32°F to 140°F) with fan tray
0 to 60°C (32°F to 140°F), fan tray required
Boolean execution speed, typical: CPE030
CPE040
0.069ms per 1000 Boolean contacts/coils
0.02391ms per 1000 Boolean contacts/coils
Time of Day Clock accuracy Maximum drift of ±2 seconds per day
Elapsed Time Clock (internal timing) accuracy ±0.01% maximum
Embedded communications RS-232, RS-485, Ethernet interface
Serial Protocols supported Modbus RTU Slave, SNP, Serial I/O
Ethernet Ports Embedded auto-sensing 10/100 Mbps half/full duplex Ethernet
interface
VME Compatibility System designed to support the VME64 standard ANSI/VITA 1
