GIDINGS&LEWIS M.1019.7789阅读器头组件 PDF资料

1.产 品 资 料 介 绍：

GIDDINGS & LEWIS M.1019.7789 阅读器头组件

产品概述

M.1019.7789 是 Giddings & Lewis 系统中的 阅读器头组件，通常用于读取旋转或直线编码器的位置信息。它将编码器磁盘或光栅条上的信号转换为电信号，提供精确的位置信息给控制器或 CPU 模块，实现高精度位置控制和速度反馈。

产品特点

1. 高精度读数

• 能够精确采集编码器信号，支持高分辨率位置和速度检测。

2. 信号稳定可靠

• 内部设计确保读取过程抗干扰，保证控制系统信号的准确性。

3. 模块化结构

• 易于安装、更换和维护，兼容 Giddings & Lewis 控制系统。

4. 耐用性强

• 工业级设计，适应机床及自动化环境中的振动、温度和粉尘。

5. 多类型兼容

• 可配合多种旋转编码器或线性编码器使用，适应不同轴和运动装置。

6. 快速响应

• 实时输出位置和速度信号，满足闭环控制对延迟的严格要求。

7. 维护便捷

• 可单独拆卸或替换，便于日常检修和故障排查。

英文资料：

GIDINGS&LEWIS M.1019.7789 Reader Head Components

Product Overview

M. 1019.7789 is a reader head component in the Giddings&Lewis system, typically used to read position information from rotary or linear encoders. It converts the signals on the encoder disk or grating strip into electrical signals, providing accurate position information to the controller or CPU module, achieving high-precision position control and speed feedback.

Product Features

High precision reading

Capable of accurately collecting encoder signals and supporting high-resolution position and velocity detection.

Signal stability and reliability

The internal design ensures anti-interference during the reading process and guarantees the accuracy of control system signals.

Modular structure

Easy to install, replace, and maintain, compatible with Giddings&Lewis control systems.

High durability

Industrial grade design, suitable for vibration, temperature, and dust in machine tools and automation environments.

Multi type compatibility

Can be used with various rotary encoders or linear encoders to adapt to different axes and motion devices.

quick response

Real time output of position and velocity signals to meet the strict delay requirements of closed-loop control.

Convenient maintenance

It can be disassembled or replaced separately for easy daily maintenance and troubleshooting.

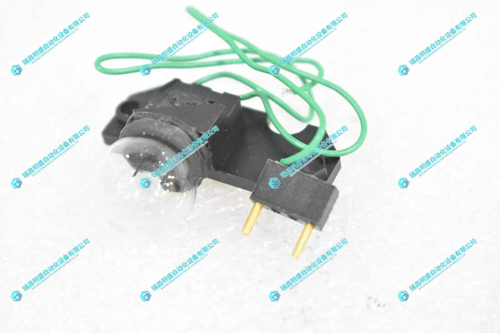

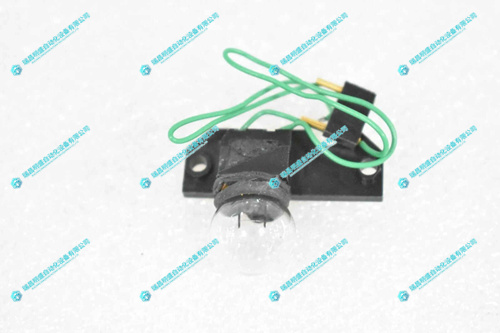

2.产      品      展      示
