GIDDINGS&LEWIS 502-03551-00 输出模块

一、产品概述

GIDDINGS&LEWIS 502-03551-00 是一款工业控制系统用 输出模块，用于将控制系统的数字或模拟信号输出至执行器、继电器或其他工业设备。该模块可与 CPU 或控制器模块配合，实现精确动作控制与信号驱动，广泛应用于数控机床、自动化生产线、机器人系统及工业自动化控制环境。

二、技术参数（典型指标，实际以实物为准）

• 模块类型：输出模块

• 输出类型：数字量输出或模拟量输出（依据配置）

• 输出电压/电流：DC 5V/24V 或依系统配置

• 通道数量：多通道输出，支持并行控制多路执行器

• 驱动能力：适用于继电器、伺服/步进驱动器、灯光或其他工业执行器

• 接口方式：模块化插槽设计，兼容 GIDDINGS&LEWIS 系列总线系统

• 工作环境：工业级温度、抗振动、抗电磁干扰

• 保护功能：短路、过流和过压保护

• 状态指示：LED 显示各通道输出状态及电源状态

三、应用场景

1. 数控机床

• 控制主轴夹具、进给轴驱动器或限位机构，实现加工动作的精准执行。

2. 自动化生产线

• 输出控制信号至机械手、输送设备或夹具，实现生产工序动作。

3. 机器人系统

• 驱动末端执行器或关节驱动器，实现精确运动和动作控制。

4. 印刷与包装设备

• 控制卷绕、送料、张力或对位装置，实现高精度加工和包装。

5. 检测与实验设备

• 驱动实验平台、测试仪器或其他执行装置，实现可靠动作输出。

英文资料：

GIDDINGS&LEWIS 502-03551-00 output module

1、 Product Overview

GIDDINGS&LEWIS 502-03551-00 is an output module for industrial control systems, used to output digital or analog signals of the control system to actuators, relays, or other industrial equipment. This module can be used in conjunction with CPU or controller modules to achieve precise motion control and signal drive, and is widely used in CNC machine tools, automated production lines, robot systems, and industrial automation control environments.

2、 Technical parameters (typical indicators, actual subject to physical object)

Module type: Output module

Output type: digital output or analog output (depending on configuration)

Output voltage/current: DC 5V/24V or according to system configuration

Number of channels: Multi channel output, supporting parallel control of multiple actuators

Drive capability: Suitable for relays, servo/stepper drivers, lighting or other industrial actuators

Interface method: Modular slot design, compatible with GIDDINGS&LEWIS series bus systems

Working environment: industrial grade temperature, anti vibration, anti electromagnetic interference

Protection function: Short circuit, overcurrent, and overvoltage protection

Status indication: LED displays the output status and power status of each channel

3、 Application scenarios

CNC machine tool

Control the spindle fixture, feed axis driver, or limit mechanism to achieve precise execution of machining actions.

Automatic production line

Output control signals to robotic arms, conveying equipment, or fixtures to achieve production process actions.

robot system

Drive end effectors or joint drivers to achieve precise motion and action control.

Printing and packaging equipment

Control winding, feeding, tension or alignment devices to achieve high-precision processing and packaging.

Testing and experimental equipment

Drive experimental platforms, testing instruments, or other execution devices to achieve reliable action output.

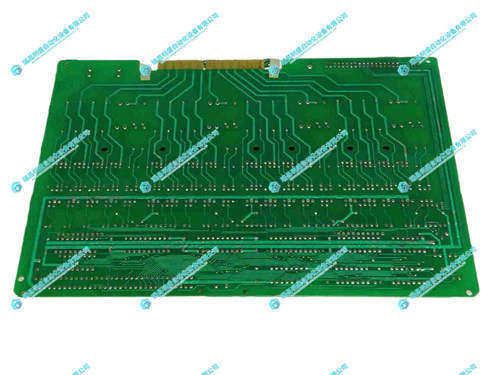

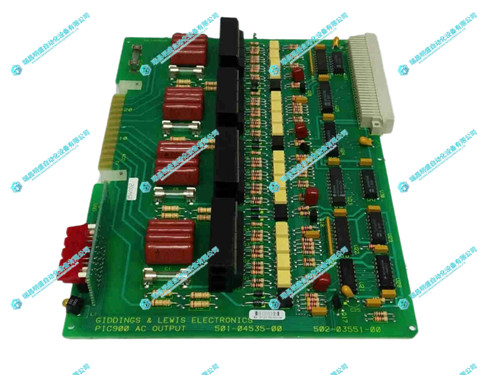

2.产      品      展      示
