GIDINGS&LEWIS M.1302.7848数字线轴模块  PDF资料

1.产 品 资 料 介 绍：

GIDDINGS&LEWIS M.1302.7848 数字线轴模块

一、产品概述

GIDDINGS&LEWIS M.1302.7848 是一款工业控制系统用 数字线轴模块（Digital Spindle Module），用于对机床主轴或其他旋转轴的速度、方向和位置进行数字化控制。该模块可与伺服驱动器、CPU 模块和编码器配合，实现高精度旋转控制、闭环调速和多轴协调控制。其模块化设计便于在数控机床、自动化生产线及高精度加工设备中安装和维护。

二、技术参数（典型指标，实际以实物为准）

• 模块类型：数字线轴模块

• 控制对象：主轴或旋转轴

• 输入信号：数字编码器反馈、CPU 指令信号

• 输出信号：伺服驱动器控制信号

• 速度控制范围：高速至低速连续可调（具体依系统配置）

• 精度：微米级定位与速度控制，支持闭环控制

• 接口方式：模块化插槽设计，兼容 GIDDINGS&LEWIS 系列总线系统

• 工作电压：由机架提供 DC 5V / 24V

• 工作环境：工业级温度范围，抗振动和抗电磁干扰

• 状态指示：LED 指示模块运行、故障及通信状态

三、应用场景

1. 数控机床

• 精确控制主轴转速与位置，实现复杂切削、钻孔和铣削操作。

• 支持多轴同步控制和高速插补加工。

2. 自动化生产线

• 控制旋转输送轴、分料轴或卷绕轴，实现生产节拍和工序协调。

3. 机器人系统

• 控制旋转关节或旋转平台，实现高精度定位和轨迹控制。

4. 印刷与包装设备

• 控制卷绕、张力轴和旋转送料装置，实现高精度印刷和包装。

5. 实验与检测平台

• 控制旋转平台或测试轴，实现实验或检测过程中高精度的角度和速度控制。

英文资料：

GIDDINGS&LEWIS M.1302.7848 digital spool module

1、 Product Overview

GIDDINGS&LEWIS M.1302.7848 is a digital spindle module for industrial control systems, used to digitally control the speed, direction, and position of machine tool spindles or other rotating axes. This module can be combined with servo drivers, CPU modules, and encoders to achieve high-precision rotation control, closed-loop speed regulation, and multi axis coordinated control. Its modular design facilitates installation and maintenance in CNC machine tools, automated production lines, and high-precision machining equipment.

2、 Technical parameters (typical indicators, actual subject to physical object)

Module type: Digital spool module

Control object: spindle or rotation axis

Input signal: feedback from digital encoder, CPU instruction signal

Output signal: servo drive control signal

Speed control range: continuously adjustable from high speed to low speed (depending on system configuration)

Accuracy: Micron level positioning and speed control, supporting closed-loop control

Interface method: Modular slot design, compatible with GIDDINGS&LEWIS series bus systems

Working voltage: DC 5V/24V provided by the rack

Working environment: Industrial grade temperature range, anti vibration and anti electromagnetic interference

Status indication: LED indicates module operation, fault, and communication status

3、 Application scenarios

CNC machine tool

Accurately control the spindle speed and position to achieve complex cutting, drilling, and milling operations.

Support multi axis synchronous control and high-speed interpolation machining.

Automatic production line

Control the rotating conveyor shaft, material distribution shaft, or winding shaft to achieve production rhythm and process coordination.

robot system

Control rotary joints or rotary platforms to achieve high-precision positioning and trajectory control.

Printing and packaging equipment

Control the winding, tension shaft, and rotating feeding device to achieve high-precision printing and packaging.

Experimental and Testing Platform

Control the rotating platform or testing axis to achieve high-precision angle and speed control during experiments or testing processes.

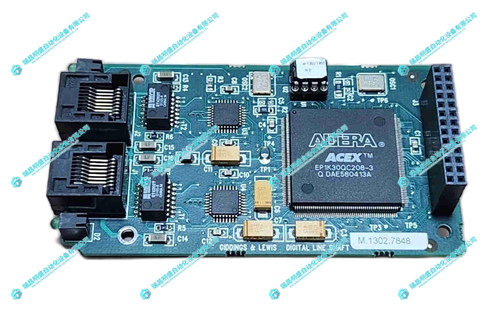

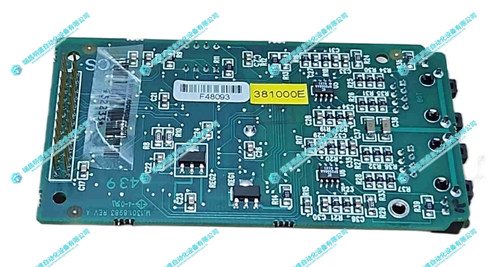

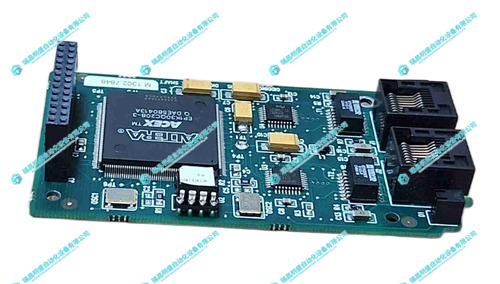

2.产      品      展      示
