GIDINGS&LEWIS 503-26842-00 隔离器模块 PDF资料
1.产 品 资 料 介 绍:
GIDDINGS&LEWIS 503-26842-00 隔离器模块
一、产品概述
GIDDINGS&LEWIS 503-26842-00 是一款工业控制系统用 信号隔离模块,主要用于隔离和保护控制系统中的输入/输出信号。通过电气隔离,该模块可以防止高电压、干扰或故障信号传递到 CPU、I/O 模块和伺服驱动器,从而提高系统的安全性和可靠性。该模块广泛应用于数控机床、自动化生产线、机器人系统及其他工业控制环境。
二、技术参数(典型指标,实际以实物为准)
模块类型:信号隔离模块
隔离电压:≥1500 V AC(输入与输出之间)
信号类型:数字量和/或模拟量信号
通道数量:多通道输入/输出隔离(视具体配置)
响应时间:≤1 ms(典型值,适合实时控制)
接口方式:模块化插槽设计,兼容 GIDDINGS&LEWIS 系统总线
工作电压:由机架提供 DC 5V / 24V
工作环境:工业级温度、抗振动、抗电磁干扰
状态指示:LED 指示模块工作及信号状态
三、应用场景
数控机床
隔离主轴、进给轴及限位开关信号,保护 CPU 和 I/O 模块免受过压或干扰。
自动化生产线
对传感器、按钮和执行器信号进行隔离,提高生产线系统安全性。
机器人系统
隔离多关节编码器、限位开关及伺服驱动器信号,防止故障扩散。
印刷与包装设备
隔离张力传感器和位置检测信号,确保精确控制和设备安全。
过程控制与实验平台
在化工、制药、检测实验设备中,隔离关键控制信号,保证系统稳定性。
英文资料:
GIDDINGS&LEWIS 503-26842-00 isolator module
1、 Product Overview
GIDDINGS&LEWIS 503-26842-00 is a signal isolation module for industrial control systems, mainly used to isolate and protect input/output signals in control systems. Through electrical isolation, this module can prevent high voltage, interference, or fault signals from being transmitted to the CPU, I/O modules, and servo drives, thereby improving the safety and reliability of the system. This module is widely used in CNC machine tools, automated production lines, robot systems, and other industrial control environments.
2、 Technical parameters (typical indicators, actual subject to physical object)
Module type: Signal isolation module
Isolation voltage: ≥ 1500 V AC (between input and output)
Signal type: digital and/or analog signal
Number of channels: Multi channel input/output isolation (depending on specific configuration)
Response time: ≤ 1 ms (typical value, suitable for real-time control)
Interface method: Modular slot design, compatible with GIDDINGS&LEWIS system bus
Working voltage: DC 5V/24V provided by the rack
Working environment: industrial grade temperature, anti vibration, anti electromagnetic interference
Status indication: LED indicates the working and signal status of the module
3、 Application scenarios
CNC machine tool
Isolate the spindle, feed axis, and limit switch signals to protect the CPU and I/O modules from overvoltage or interference.
Automatic production line
Isolate sensor, button, and actuator signals to improve the safety of the production line system.
robot system
Isolate signals from multi joint encoders, limit switches, and servo drivers to prevent the spread of faults.
Printing and packaging equipment
Isolate tension sensors and position detection signals to ensure precise control and equipment safety.
Process Control and Experimental Platform
In chemical, pharmaceutical, and testing experimental equipment, isolate key control signals to ensure system stability.

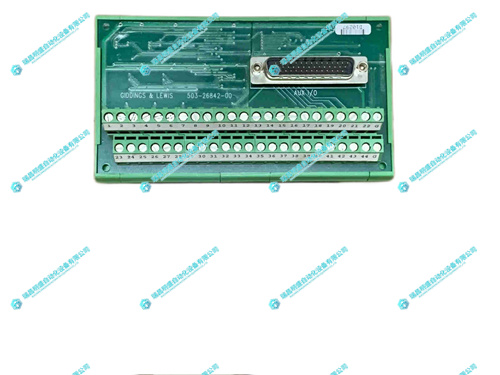

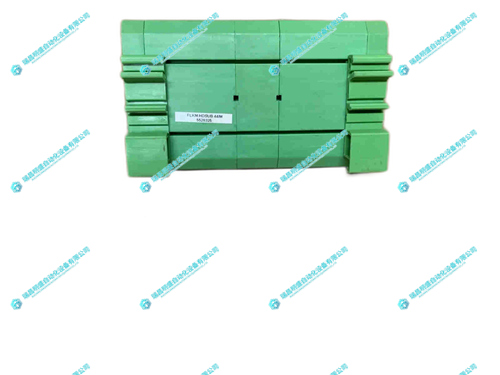

2.产 品 展 示
