GIDINGS&LEWIS  502-03679-00热电偶模块 PDF资料

1.产 品 资 料 介 绍：

GIDDINGS&LEWIS 502-03679-00 热电偶模块

一、产品概述

GIDDINGS&LEWIS 502-03679-00 热电偶模块是一款用于工业自动化系统的 温度测量输入模块。它通过接入不同类型的热电偶（如 J、K、T、E 型等），将温度信号转换为控制器可识别的数字信号，提供高精度的过程温度监控与闭环控制功能。该模块广泛应用于数控机床、过程控制、制造业和实验测试设备中。

二、技术参数（典型指标，具体以实物为准）

• 模块类型：热电偶输入模块

• 支持传感器：J、K、T、E、N、R、S、B 等多种热电偶类型

• 通道数：多通道输入（常见 4/8 路）

• 输入范围：-200℃ 至 +1800℃（依热电偶类型而定）

• 分辨率：0.1℃ 或更高精度

• 精度：±0.5% 满量程（典型）

• 冷端补偿：内置自动补偿功能，保证测量准确度

• 隔离方式：通道与系统总线隔离，增强抗干扰能力

• 接口方式：模块化插槽设计，兼容 GIDDINGS&LEWIS 502 系列系统总线

• 采样速度：典型 100ms–500ms/通道

三、应用场景

1. 数控机床与热处理设备

• 对主轴轴承、刀具、热处理炉等进行温度检测与保护。

2. 过程工业

• 在化工、冶金、能源行业中用于温度监控与自动控制。

3. 自动化生产线

• 对注塑、印刷、纺织等工艺环节进行温度闭环调节。

4. 实验与测试平台

• 用于科研或质量检测系统中的精密温度测量。

5. 能源与动力系统

• 应用于锅炉、涡轮机组等设备的温度监控，保障安全运行。

英文资料：

GIDDINGS&LEWIS 502-03679-00 Thermocouple Module

1、 Product Overview

GIDDINGS&LEWIS 502-03679-00 thermocouple module is a temperature measurement input module used in industrial automation systems. It converts temperature signals into digital signals recognizable by the controller by connecting different types of thermocouples (such as J, K, T, E, etc.), providing high-precision process temperature monitoring and closed-loop control functions. This module is widely used in CNC machine tools, process control, manufacturing, and experimental testing equipment.

2、 Technical parameters (typical indicators, specific subject to physical object)

Module type: thermocouple input module

Support sensors: J, K, T, E, N, R, S, B and other types of thermocouples

Number of channels: Multi channel input (commonly 4/8 channels)

Input range: -200 ℃ to+1800 ℃ (depending on thermocouple type)

Resolution: 0.1 ℃ or higher accuracy

Accuracy: ± 0.5% full scale (typical)

Cold end compensation: Built in automatic compensation function to ensure measurement accuracy

Isolation method: Channel and system bus isolation to enhance anti-interference capability

Interface method: Modular slot design, compatible with GIDDINGS&LEWIS 502 series system bus

Sampling speed: typical 100ms-500ms/channel

3、 Application scenarios

Numerical Control Machine Tools and Heat Treatment Equipment

Temperature detection and protection of spindle bearings, cutting tools, heat treatment furnaces, etc.

process industry

Used for temperature monitoring and automatic control in the chemical, metallurgical, and energy industries.

Automatic production line

Perform temperature closed-loop regulation on injection molding, printing, textile and other process links.

Experimental and testing platform

Used for precise temperature measurement in scientific research or quality inspection systems.

Energy and Power Systems

Applied to temperature monitoring of equipment such as boilers and turbine units to ensure safe operation.

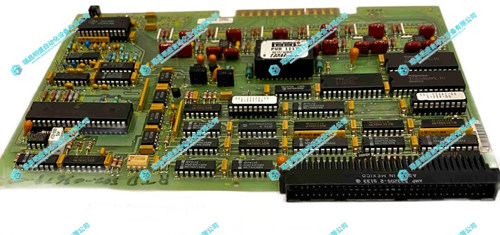

2.产      品      展      示
