1.产 品 资 料 介 绍：

GIDDINGS & LEWIS 502-02833-20 接口模块

产品概述

GIDDINGS & LEWIS 502-02833-20 接口模块主要用于工业自动化系统中，作为主控制器与外围设备之间的数据与信号交互单元。该模块具备稳定的电气隔离和多通道接口能力，能够实现高速、可靠的数据传输，确保系统的协调运行。

技术参数（典型特性，具体以实际型号为准）

• 接口类型：支持多种工业总线及I/O信号输入输出

• 数据传输速率：满足实时控制需求，具备低延迟性能

• 电气隔离：模块化隔离设计，提升系统抗干扰能力

• 兼容性：与 G&L 多种数控系统、伺服驱动器及控制单元兼容

• 安装方式：插卡式或机架式安装，便于系统扩展与维护

产品应用领域

1. 数控机床系统

• 用于机床控制器与执行部件之间的信号交换。

• 提供高速数据接口，确保复杂加工中的实时性。

2. 工业自动化产线

• 作为 PLC 或 CNC 与传感器、执行机构之间的接口模块。

• 应用于装配、搬运、检测等自动化工序。

3. 机器人控制系统

• 实现机器人控制器与外围伺服驱动、电机及传感器的信号交互。

• 支持多轴同步和高精度动作执行。

4. 过程控制与监测

• 应用于化工、冶金、造纸等连续性工厂，保证信号采集与反馈的可靠性。

• 实现远程监控与控制系统的联动。

5. 物流与仓储系统

• 驱动输送带、分拣机、堆垛机等设备的实时通信。

• 确保仓储调度和物料搬运的高效运行。

英文资料：

GIDINGS&LEWIS 502-02833-20 Interface Module

Product Overview

The GIDINGS&LEWIS 502-02833-20 interface module is mainly used in industrial automation systems as a data and signal exchange unit between the main controller and peripheral devices. This module has stable electrical isolation and multi-channel interface capabilities, which can achieve high-speed and reliable data transmission, ensuring the coordinated operation of the system.

Technical parameters (typical characteristics, specific subject to actual model)

Interface type: Supports multiple industrial buses and I/O signal input and output

Data transmission rate: meets real-time control requirements and has low latency performance

Electrical isolation: Modular isolation design enhances the system's anti-interference capability

Compatibility: Compatible with various CNC systems, servo drives, and control units of G&L

Installation method: Plug in or rack mounted for easy system expansion and maintenance

Product application areas

Numerical Control Machine Tool System

Used for signal exchange between machine tool controllers and executing components.

Provide high-speed data interface to ensure real-time performance in complex machining.

Industrial automation production line

As an interface module between PLC or CNC and sensors/actuators.

Applied to automated processes such as assembly, handling, and inspection.

Robot control system

Realize signal interaction between robot controller and peripheral servo drives, motors, and sensors.

Support multi axis synchronization and high-precision action execution.

Process Control and Monitoring

Applied to continuous factories such as chemical, metallurgical, and papermaking industries, ensuring the reliability of signal acquisition and feedback.

Realize the linkage between remote monitoring and control systems.

Logistics and warehousing system

Real time communication for driving conveyor belts, sorting machines, stacker cranes, and other equipment.

Ensure efficient operation of warehouse scheduling and material handling.

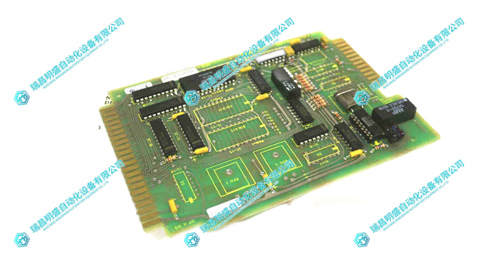

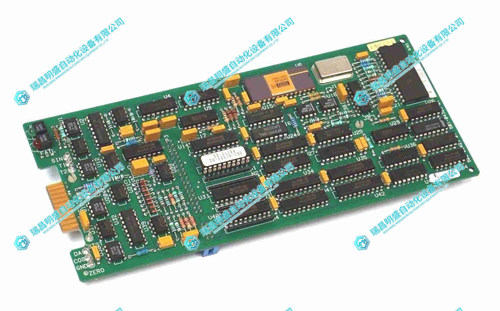

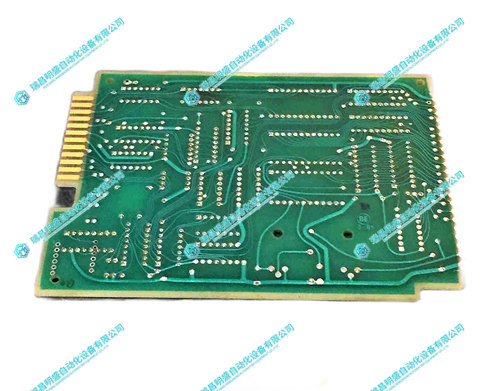

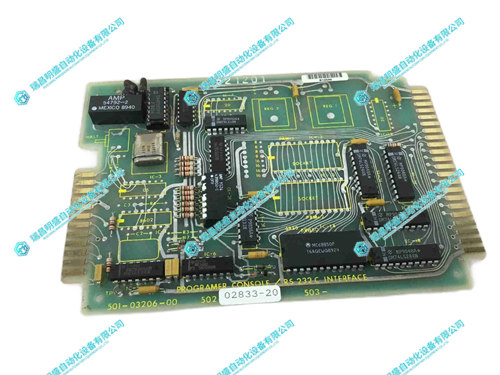

2.产      品      展      示
