GIDINGS&LEWIS 502-03616-02机器控制电路板 PDF资料
1.产 品 资 料 介 绍：
产品概述
Giddings & Lewis 502-03616-02 机器控制电路板是 PiC 系列控制系统中的核心模块，用于执行机床或自动化设备的逻辑控制和顺序动作管理。它能够接收来自传感器、开关和控制器的信号，并驱动执行机构，实现精确的机器操作和自动化流程控制。
产品应用领域
数控机床
控制主轴及进给轴动作顺序，实现加工程序执行。
管理机床夹具、液压和气动装置的开关操作。
自动化生产线
协调输送设备、装配机械和分拣系统的动作顺序。
控制多设备联动，实现高效自动化生产。
过程控制系统
驱动工业阀门、泵及报警装置，实现自动化过程控制。
提供逻辑判断和顺序操作功能，保证系统安全稳定运行。
工业设备监控与安全
集成故障检测和紧急停机功能，提高设备操作安全性。
可配合输入/输出模块，实现实时状态监控和报警处理。
实验与测试设备
控制精密测试设备的动作顺序，实现高重复精度操作。
支持多通道信号输入和输出，满足复杂测试流程需求。
英文资料：
Product Overview
The Giddings&Lewis 502-03616-02 machine control circuit board is the core module in the PiC series control system, used to perform logical control and sequential action management of machine tools or automation equipment. It can receive signals from sensors, switches, and controllers, and drive actuators to achieve precise machine operation and automated process control.
Product application areas
CNC machine tool
Control the sequence of spindle and feed axis actions to achieve the execution of machining programs.
Manage the switch operation of machine tool fixtures, hydraulic and pneumatic devices.
Automatic production line
Coordinate the sequence of actions for conveying equipment, assembly machinery, and sorting systems.
Control the linkage of multiple devices to achieve efficient automated production.
process control system
Drive industrial valves, pumps, and alarm devices to achieve automated process control.
Provide logical judgment and sequential operation functions to ensure the safe and stable operation of the system.
Industrial equipment monitoring and safety
Integrate fault detection and emergency shutdown functions to improve equipment operation safety.
Can be combined with input/output modules to achieve real-time status monitoring and alarm processing.
Experimental and testing equipment
Control the sequence of actions of precision testing equipment to achieve high repeatability and precision operations.
Support multi-channel signal input and output to meet the requirements of complex testing processes.

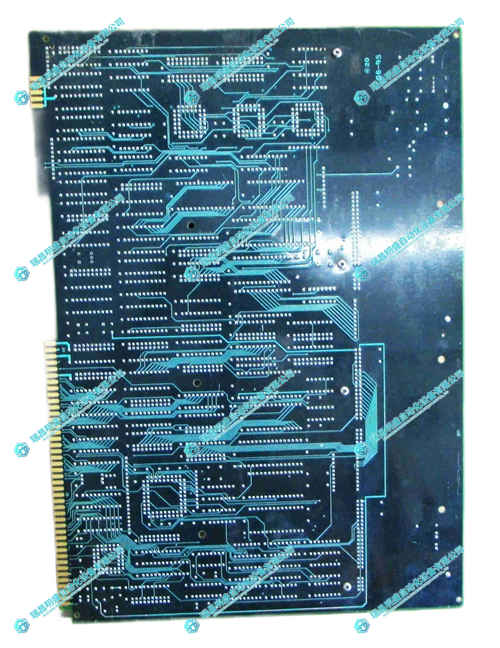

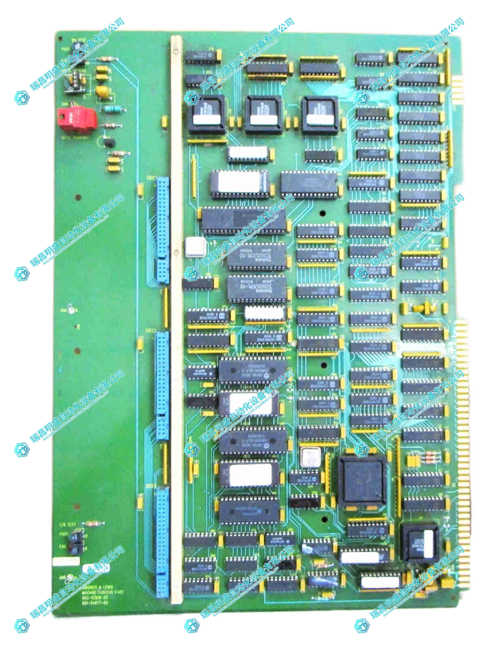

2.产 品 展 示
