GIDINGS&LEWIS  501-02984-01接口板 PDF资料

1.产 品 资 料 介 绍：

产品概述

Giddings & Lewis 501-02984-01 接口板是 PiC 系列控制系统中的关键模块，用于实现控制器与外部设备或其他模块之间的信号接口转换。它能够接收来自处理器或输入模块的信号，并将其转换为适合下级设备的控制信号，同时也可以将外部设备的反馈信号传送至控制系统，实现信号的双向传递和处理。

产品特点

1. 多通道信号接口

• 提供多个独立输入/输出通道，可同时处理多路信号。

• 支持数字量和逻辑信号，满足多种工业控制需求。

2. 高可靠性设计

• 工业级电子元件制造，保证长期稳定运行。

• 抗振动、抗冲击能力强，适应复杂工业环境。

3. 电气隔离与保护

• 输入输出通道具备光电隔离，提高系统抗干扰能力。

• 内置过流和短路保护，防止模块及连接设备损坏。

4. 状态指示与维护便捷

• LED 指示灯显示信号状态和模块工作情况。

• 模块化设计，方便现场安装、调试及更换。

5. 兼容性与扩展性

• 可与 PiC 系列控制器及输入/输出模块无缝连接。

• 支持系统扩展，适用于中大型自动化控制系统。

应用领域

• 数控机床：连接传感器、编码器及执行器，实现机床运动和加工过程控制。

• 自动化生产线：实现控制器与输送系统、分拣机械及装配设备的信号接口。

• 过程控制系统：处理传感器信号并控制阀门、泵及报警装置。

• 工业设备监控：提供数据采集和控制接口，实现设备状态监控与控制。

英文资料：

Product Overview

The Giddings&Lewis 501-02984-01 interface board is a key module in the PiC series control system, used to implement signal interface conversion between the controller and external devices or other modules. It can receive signals from processors or input modules and convert them into control signals suitable for downstream devices. At the same time, it can also transmit feedback signals from external devices to the control system, achieving bidirectional signal transmission and processing.

Product Features

Multi channel signal interface

Provide multiple independent input/output channels, capable of processing multiple signals simultaneously.

Supports digital quantities and logical signals to meet various industrial control requirements.

High reliability design

Manufacturing of industrial grade electronic components to ensure long-term stable operation.

Strong resistance to vibration and impact, suitable for complex industrial environments.

Electrical isolation and protection

The input and output channels have optoelectronic isolation to improve the system's anti-interference ability.

Built in overcurrent and short-circuit protection to prevent damage to modules and connected devices.

Convenient status indication and maintenance

The LED indicator light displays the signal status and module operation.

Modular design facilitates on-site installation, debugging, and replacement.

Compatibility and Scalability

Can seamlessly connect with PiC series controllers and input/output modules.

Support system expansion, suitable for medium and large-scale automation control systems.

Application field

Numerical Control Machine Tool: Connect sensors, encoders, and actuators to achieve machine tool motion and machining process control.

Automated production line: Implement signal interfaces between controllers and conveyor systems, sorting machinery, and assembly equipment.

Process control system: processes sensor signals and controls valves, pumps, and alarm devices.

Industrial equipment monitoring: Provide data acquisition and control interfaces to achieve equipment status monitoring and control.

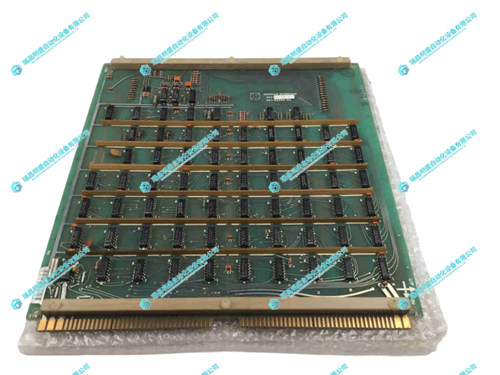

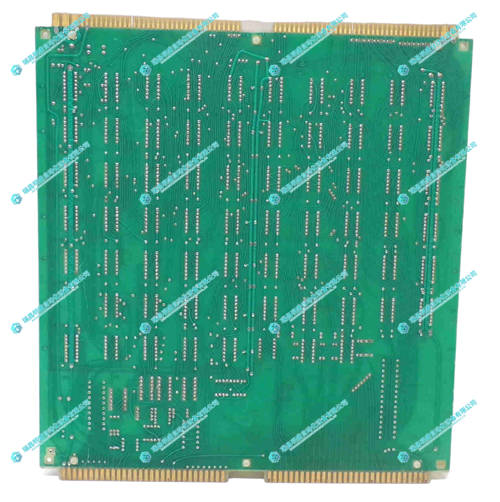

2.产      品      展      示
