GIDINGS&LEWIS 502-03550-02输出模块 PDF资料

1.产 品 资 料 介 绍：

产品概述

Giddings & Lewis 502-03550-02 是 PiC 系列控制系统中的 输出模块，主要用于将控制器的逻辑信号转换为可驱动外部负载的电气信号。它在工业自动化设备、数控机床及过程控制系统中，负责驱动执行器、继电器、电磁阀和指示设备，实现控制系统与实际机械动作的接口。

产品特点

1. 多通道输出

• 提供多个独立输出通道，可同时控制多路负载。

• 通道之间相互隔离，减少干扰与故障传播风险。

2. 直流/交流兼容

• 可根据具体型号驱动直流或交流负载。

• 输出电压和电流能力适合工业级设备要求。

3. 电气保护

• 具备光电隔离，提高系统安全性和抗干扰能力。

• 内置过流、短路保护，防止模块或负载损坏。

4. 状态指示与维护便利

• LED 指示灯显示输出通道工作状态，便于现场诊断。

• 模块化设计，便于安装、替换和系统扩展。

5. 工业级可靠性

• 抗振动、抗冲击设计，适应复杂工业环境。

• EMC 抗干扰能力强，保证模块在噪声环境下稳定运行。

应用领域

• 数控机床：驱动夹具、电磁阀、润滑泵及其他执行装置。

• 自动化生产线：控制输送、分拣和装配机械动作。

• 过程控制系统：驱动阀门、泵和报警装置。

• 信号指示与报警系统：驱动指示灯、蜂鸣器，实现状态显示与报警输出。

英文资料：

Product Overview

Giddings&Lewis 502-03550-02 is an output module in the PiC series control system, mainly used to convert the logic signal of the controller into an electrical signal that can drive external loads. It is responsible for driving actuators, relays, solenoid valves, and indicator devices in industrial automation equipment, CNC machine tools, and process control systems, and achieving the interface between the control system and actual mechanical actions.

Product Features

Multi channel output

Provide multiple independent output channels to simultaneously control multiple loads.

Isolation between channels reduces the risk of interference and fault propagation.

DC/AC compatibility

It can drive DC or AC loads according to specific models.

The output voltage and current capability are suitable for industrial grade equipment requirements.

electrical protection

Equipped with optoelectronic isolation to enhance system security and anti-interference capability.

Built in overcurrent and short-circuit protection to prevent module or load damage.

Status indication and convenient maintenance

The LED indicator light displays the working status of the output channel, facilitating on-site diagnosis.

Modular design facilitates installation, replacement, and system expansion.

Industrial grade reliability

Anti vibration and anti impact design, suitable for complex industrial environments.

EMC has strong anti-interference ability, ensuring stable operation of the module in noisy environments.

Application field

Numerical control machine tools: drive fixtures, solenoid valves, lubrication pumps, and other actuating devices.

Automated production line: controls the mechanical actions of conveying, sorting, and assembly.

Process control system: drive valves, pumps, and alarm devices.

Signal indication and alarm system: Drive indicator lights and buzzers to achieve status display and alarm output.

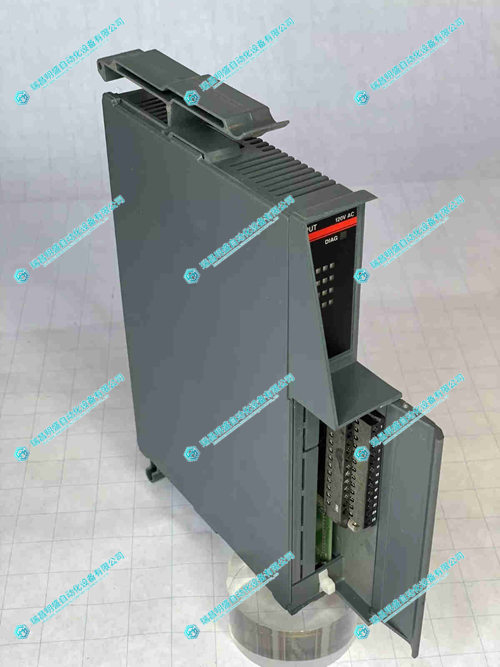

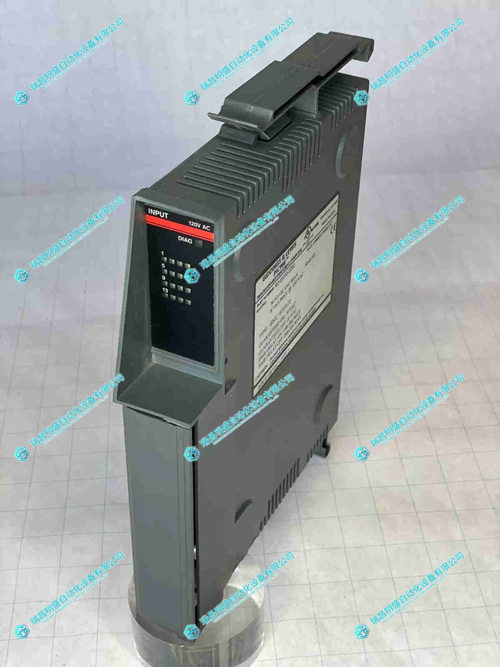

2.产      品      展      示
