GIDINGS&LEWIS 501-04090-00电路板 PDF资料

1.产 品 资 料 介 绍：

产品概述

Giddings & Lewis 501-04090-00 电路板是工业控制系统中的功能模块，主要用于信号处理和逻辑控制。它能够接收来自控制器或其他输入模块的数字或模拟信号，并将处理后的输出信号发送至执行元件，如继电器、电磁阀或指示灯。该模块通常用于数控机床和自动化设备的控制系统中，作为接口和控制信号转换单元。

产品特点

1. 多通道信号处理

• 提供多个独立输入和输出通道，可同时处理多路信号。

• 支持数字量或特定逻辑信号的处理和转发。

2. 高可靠性设计

• 工业级电子元器件，保证长期稳定运行。

• 具备抗振动、抗冲击和抗干扰能力。

3. 灵活接口

• 可与控制器及其他 PiC 系列模块无缝连接。

• 提供标准插入式或螺丝端子接口，便于接线和安装。

4. 状态指示与维护便捷

• LED 指示灯显示信号状态或模块工作情况。

• 便于现场故障诊断和维护，提高系统可用性。

5. 工业环境适应性

• 适应宽温度和湿度范围，满足复杂工业环境的要求。

• EMC 抗干扰设计，确保模块在噪声环境下稳定工作。

应用领域

• 数控机床：用于机床控制系统中的信号接口、逻辑转换及输出控制。

• 自动化生产线：控制机械动作、传感器信号处理和执行器驱动。

• 过程控制设备：用于工业自动化设备的逻辑控制与信号管理。

• 报警与指示系统：驱动指示灯、蜂鸣器等，实现状态显示和报警功能。

英文资料：

Product Overview

The Giddings&Lewis 501-04090-00 circuit board is a functional module in industrial control systems, mainly used for signal processing and logic control. It is capable of receiving digital or analog signals from controllers or other input modules, and sending processed output signals to actuators such as relays, solenoid valves, or indicator lights. This module is commonly used in control systems of CNC machine tools and automation equipment as an interface and control signal conversion unit.

Product Features

Multi channel signal processing

Provide multiple independent input and output channels, capable of processing multiple signals simultaneously.

Support the processing and forwarding of digital quantities or specific logical signals.

High reliability design

Industrial grade electronic components ensure long-term stable operation.

Capable of resisting vibration, impact, and interference.

Flexible interface

Can seamlessly connect with controllers and other PiC series modules.

Provide standard plug-in or screw terminal interfaces for easy wiring and installation.

Convenient status indication and maintenance

The LED indicator light displays the signal status or module operation.

Facilitate on-site fault diagnosis and maintenance, and improve system availability.

Industrial environment adaptability

Adapt to a wide temperature and humidity range to meet the requirements of complex industrial environments.

EMC anti-interference design ensures stable operation of the module in noisy environments.

Application field

Numerical Control Machine Tool: Used for signal interface, logic conversion, and output control in machine tool control systems.

Automated production line: controlling mechanical actions, sensor signal processing, and actuator driving.

Process control equipment: used for logical control and signal management of industrial automation equipment.

Alarm and indication system: Drive indicator lights, buzzers, etc. to achieve status display and alarm functions.

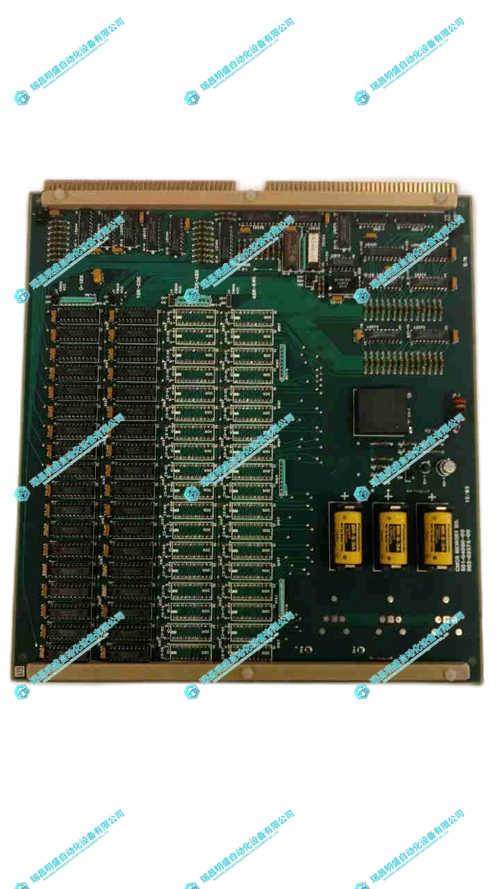

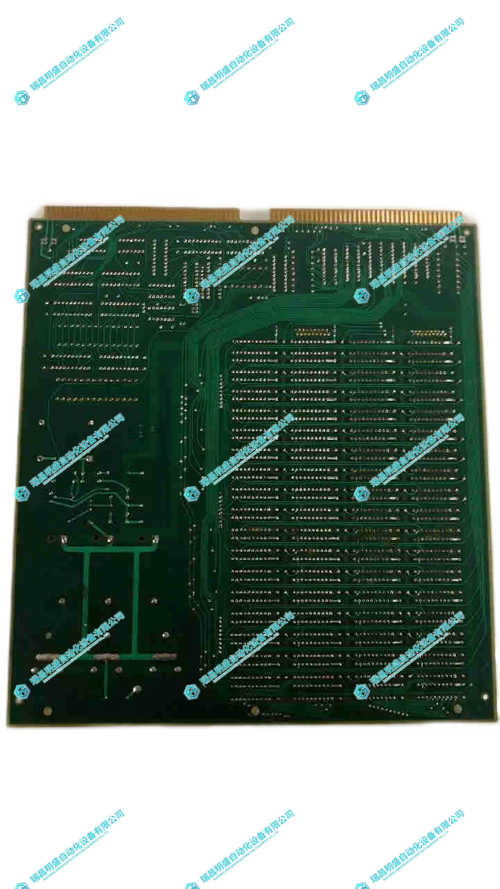

2.产      品      展      示
