GIDINGS&LEWIS 502-03567-00输出电路板模块 PDF资料

1.产 品 资 料 介 绍：

产品概述

Giddings & Lewis 502-03567-00 输出电路板模块是 PiC900 控制系统中的重要部件，用于将控制器的逻辑信号转化为可驱动外部负载的电气输出信号。它主要应用于数控机床、自动化生产线以及其他工业设备中，用于驱动执行器、继电器、电磁阀及信号装置。

产品特点

1. 多通道设计

• 提供多个独立输出点，可同时控制多路负载。

• 通道之间相互隔离，降低干扰和故障传播风险。

2. 直流输出能力

• 采用标准 24V 直流输出，适配工业常用控制电压。

• 每通道具备稳定的电流驱动能力，可直接驱动中小功率负载。

3. 电气隔离与保护

• 通过光电隔离设计，提高系统安全性和抗干扰性能。

• 内置过流、短路保护功能，避免模块及外部设备损坏。

4. 状态监控与诊断

• 配备 LED 指示灯，可实时显示各输出通道的工作状态。

• 便于现场维护和故障排查，减少停机时间。

5. 模块化与兼容性

• 插入式模块结构，可直接安装在 PiC900 控制系统机架上。

• 支持系统灵活扩展，便于升级和更换。

6. 工业环境适应性

• 符合工业环境抗电磁干扰标准，可靠性高。

• 通过抗振动、抗冲击测试，适合在复杂环境下长期运行。

总结

502-03567-00 输出电路板模块具备 多通道、高可靠性、隔离保护、状态可视化 等特点，能够满足 CNC 机床、自动化生产线和过程控制系统的输出控制需求，为工业设备提供稳定、安全的执行信号。

英文资料：

Product Overview

The Giddings&Lewis 502-03567-00 output circuit board module is an important component in the PiC900 control system, used to convert the logic signals of the controller into electrical output signals that can drive external loads. It is mainly used in CNC machine tools, automated production lines, and other industrial equipment to drive actuators, relays, solenoid valves, and signal devices.

Product Features

Multi-channel Design

Provide multiple independent output points to simultaneously control multiple loads.

Isolation between channels reduces the risk of interference and fault propagation.

DC output capability

Adopting standard 24V DC output, compatible with commonly used industrial control voltages.

Each channel has stable current driving capability and can directly drive small and medium power loads.

Electrical isolation and protection

Improve system security and anti-interference performance through optoelectronic isolation design.

Built in overcurrent and short-circuit protection functions to prevent damage to modules and external devices.

Status monitoring and diagnosis

Equipped with LED indicator lights, it can display the working status of each output channel in real time.

Easy on-site maintenance and troubleshooting, reducing downtime.

Modularity and compatibility

Plug in module structure, can be directly installed on the PiC900 control system rack.

Support flexible system expansion, easy to upgrade and replace.

Industrial environment adaptability

Compliant with industrial environment anti electromagnetic interference standards, high reliability.

Through anti vibration and anti impact testing, it is suitable for long-term operation in complex environments.

summary

The 502-03567-00 output circuit board module has the characteristics of multi-channel, high reliability, isolation protection, and status visualization, which can meet the output control requirements of CNC machine tools, automated production lines, and process control systems, and provide stable and safe execution signals for industrial equipment.

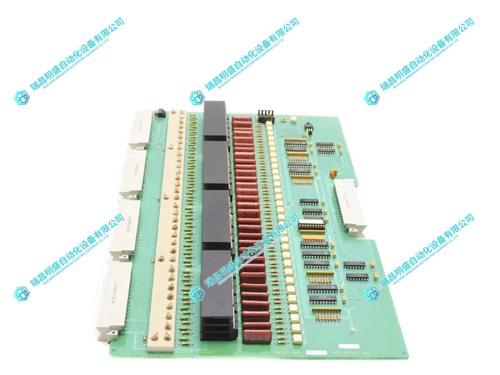

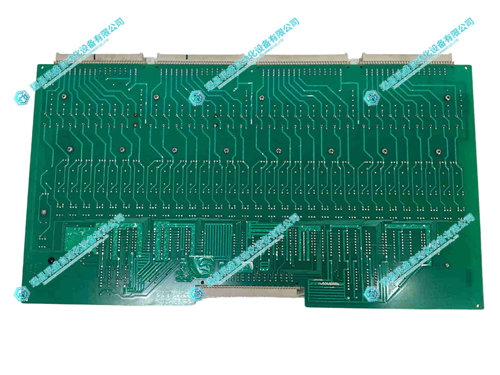

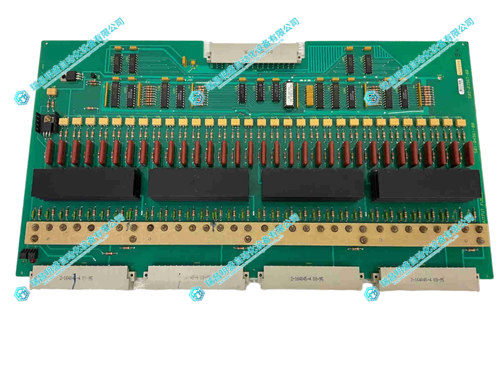

2.产      品      展      示
