GIDINGS&LEWIS 502-03782-00输入编码器模块 PDF资料

1.产 品 资 料 介 绍：

产品概述

Giddings & Lewis 502-03782-00 输入编码器模块是 PiC900 系列控制系统的关键部件之一，主要用于接收和处理多通道增量编码器的反馈信号。它能够为数控机床、伺服系统和自动化设备提供精确的位置与速度反馈，是高性能运动控制系统中的核心模块。

产品特点

1. 多通道支持

• 支持最多 4 通道增量编码器输入，适合多轴控制系统。

• 每个通道可同时处理 A/B 相和索引脉冲信号。

2. 高精度计数

• 内置 24 位上/下计数器，能实现高分辨率的脉冲计数。

• 提供位置锁存功能，可由编码器索引脉冲或外部快速输入触发。

3. 高速信号处理

• 标准版本可支持高达 250 kHz 的输入频率。

• 高速版本可处理高达 2.5 MHz 的输入频率，适合高速伺服系统。

4. 信号兼容性强

• 支持差分输入和单端输入方式，适应不同编码器类型。

• 电压输入范围宽，能够兼容不同规格的编码器。

5. 工业环境适应性

• 具备良好的电磁兼容性和抗干扰性能，适应复杂工业环境。

• 通过抗振动和抗冲击测试，适合长期稳定运行。

• 工作温度范围 7℃ 至 55℃，储存温度 –40℃ 至 85℃，湿度 5%–95%（无凝结）。

6. 安装与维护便捷

• 模块化设计，插入 PiC900 背板即可使用。

• 提供 LED 状态指示，便于诊断与维护。

• 接线方式灵活，采用卡边式连接器与螺丝端子。

总结

502-03782-00 输入编码器模块具备 多通道、高精度、高速处理和工业级可靠性 等特点，非常适合用于数控机床、伺服驱动、多轴运动控制和自动化生产线等需要精确位置反馈和速度监控的场合。

英文资料：

Product Overview

The Giddings&Lewis 502-03782-00 input encoder module is one of the key components of the PiC900 series control system, mainly used to receive and process feedback signals from multi-channel incremental encoders. It can provide precise position and velocity feedback for CNC machine tools, servo systems, and automation equipment, and is the core module in high-performance motion control systems.

Product Features

Multi channel support

Supports up to 4 channels of incremental encoder input, suitable for multi axis control systems.

Each channel can simultaneously process A/B phase and index pulse signals.

High precision counting

Built in 24 bit up/down counter, capable of achieving high-resolution pulse counting.

Provide position locking function, which can be triggered by encoder index pulse or external fast input.

high speed signal processing

The standard version can support input frequencies up to 250 kHz.

The high-speed version can handle input frequencies up to 2.5 MHz, making it suitable for high-speed servo systems.

Strong signal compatibility

Supports differential input and single ended input methods, suitable for different encoder types.

Wide voltage input range, compatible with encoders of different specifications.

Industrial environment adaptability

Has good electromagnetic compatibility and anti-interference performance, suitable for complex industrial environments.

Suitable for long-term stable operation through anti vibration and anti impact testing.

The working temperature range is 7 ℃ to 55 ℃, the storage temperature is -40 ℃ to 85 ℃, and the humidity is 5% to 95% (no condensation).

Easy installation and maintenance

Modular design, can be used by inserting the PiC900 backplane.

Provide LED status indication for easy diagnosis and maintenance.

The wiring method is flexible, using card edge connectors and screw terminals.

summary

The 502-03782-00 input encoder module has the characteristics of multi-channel, high precision, high-speed processing, and industrial grade reliability, making it very suitable for applications such as CNC machine tools, servo drives, multi axis motion control, and automated production lines that require precise position feedback and speed monitoring.

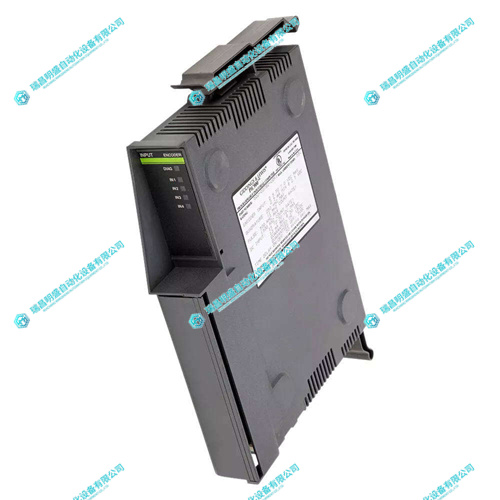

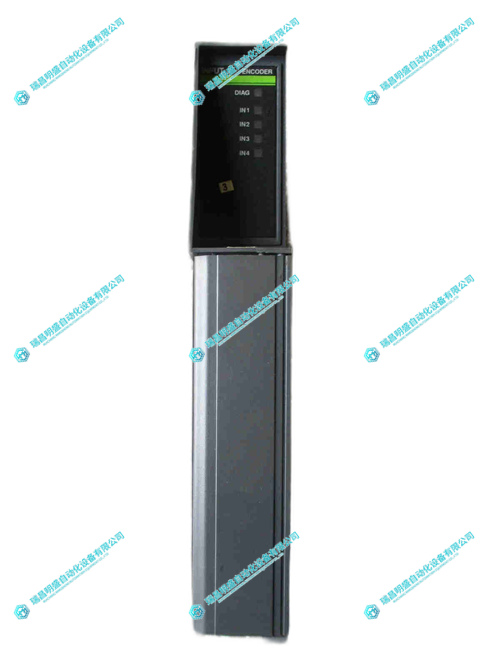

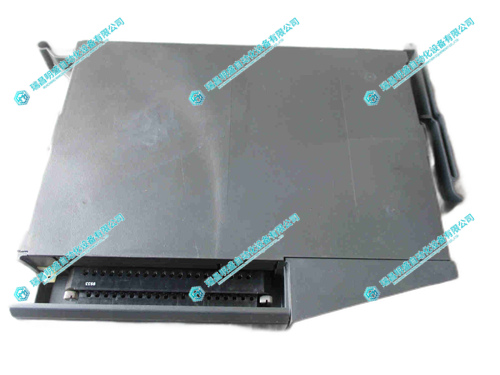

2.产      品      展      示
