GIDINGS&LEWIS 502-03518-00直流输出模块 PDF资料

1.产 品 资 料 介 绍：

GIDINGS&LEWIS 502-03518-00 直流输出模块

产品概述

502-03518-00 是 Giddings & Lewis 控制系统中的 直流输出模块，用于将控制信号转换为直流电压或电流输出，以驱动执行器、继电器、电磁阀或其他直流负载。该模块适用于工业自动化和数控系统，具有高可靠性、响应快速和易于集成的特点。

产品特点

1. 高可靠性

• 工业级设计，抗振动、耐高温、抗电磁干扰，适合恶劣工业环境。

• 内置过流、短路和过温保护，保障模块及负载安全。

2. 精确输出

• 提供稳定的直流电压或电流输出，保证执行元件精确动作。

• 适合闭环控制和精密自动化系统使用。

3. 模块化设计

• 可直接安装在控制系统机架中，方便维护和更换。

• 与 G&L CPU、I/O 模块及其他控制单元无缝配合。

4. 快速响应

• 输入信号到输出动作延迟小，满足高速启动、停止及频繁切换需求。

5. 多用途应用

• 可用于电机驱动、继电器控制、开关量输出及其他直流负载控制。

• 支持数控机床、自动化生产线、工业机器人及包装机械等多种场景。

产品应用领域

• 数控机床系统：控制辅助设备、直流马达及执行机构。

• 自动化生产线：驱动输送设备、分拣机构和定位装置。

• 工业机器人：控制夹具、末端执行器及辅助动作。

• 包装与印刷机械：控制送料器、夹紧机构和摆臂运动。

• 测试与实验平台：提供多通道直流输出控制，支持实验和检测设备。

英文资料：

GIDINGS&LEWIS 502-03518-00 DC output module

Product Overview

502-03518-00 is a DC output module in the Giddings&Lewis control system, used to convert control signals into DC voltage or current outputs to drive actuators, relays, solenoid valves, or other DC loads. This module is suitable for industrial automation and numerical control systems, and has the characteristics of high reliability, fast response, and easy integration.

Product Features

high reliability

Industrial grade design, resistant to vibration, high temperature, and electromagnetic interference, suitable for harsh industrial environments.

Built in overcurrent, short circuit, and over temperature protection to ensure the safety of modules and loads.

Accurate output

Provide stable DC voltage or current output to ensure precise action of the executing components.

Suitable for use in closed-loop control and precision automation systems.

modular design

It can be directly installed in the control system rack for easy maintenance and replacement.

Seamless integration with G&L CPUs, I/O modules, and other control units.

quick response

The delay from input signal to output action is small, meeting the requirements of high-speed start, stop, and frequent switching.

Multi purpose application

Can be used for motor drive, relay control, switch output, and other DC load control.

Supports various scenarios such as CNC machine tools, automated production lines, industrial robots, and packaging machinery.

Product application areas

CNC machine tool system: controls auxiliary equipment, DC motors, and actuators.

Automated production line: drives conveying equipment, sorting mechanisms, and positioning devices.

Industrial robots: control fixtures, end effectors, and auxiliary actions.

Packaging and printing machinery: control the movement of feeders, clamping mechanisms, and swing arms.

Testing and experimental platform: Provides multi-channel DC output control and supports experimental and testing equipment.

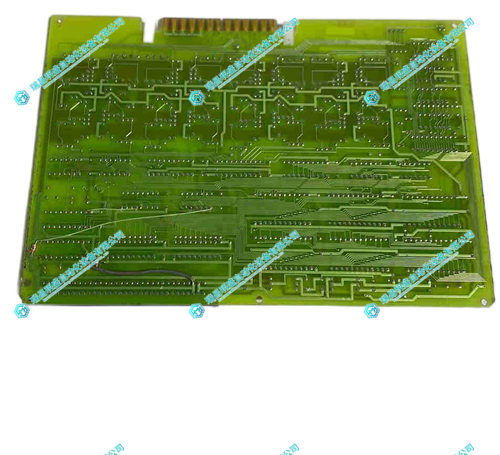

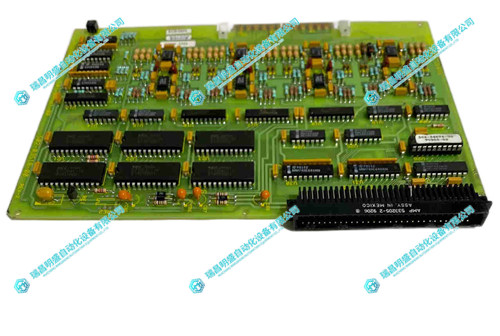

2.产      品      展      示
