GIDINGS&LEWIS 502-02738-01伺服控制板 PDF资料

1.产 品 资 料 介 绍：

GIDINGS&LEWIS 502-02738-01 伺服控制板

产品概述

502-02738-01 是 Giddings & Lewis 控制系统中的 伺服控制板，用于驱动和控制伺服电机，实现精密的位置、速度和转矩控制。该板支持闭环控制，能够与编码器、CPU 模块及其他 I/O 模块协同工作，是数控机床及自动化设备运动控制的核心模块之一。

产品应用领域

1. 数控机床系统

• 控制主轴及进给轴的伺服电机，实现高精度加工。

• 支持多轴联动和刀具路径插补。

2. 自动化生产线

• 驱动输送设备、搬运机构或定位装置的伺服电机。

• 实现生产线设备的同步和高精度运动控制。

3. 工业机器人系统

• 控制机器人关节及末端执行器的伺服运动。

• 支持复杂轨迹规划和高动态响应。

4. 包装与印刷机械

• 控制送料器、摆臂、夹持机构及其他运动部件。

• 确保产品加工、包装及印刷的精度与一致性。

5. 精密加工与测试设备

• 控制微型平台或精密执行机构的运动。

• 提供高分辨率反馈，实现微米级定位。

产品优势

• 高精度控制：闭环控制与编码器反馈保证位置和速度精确。

• 高动态响应：适应高速启动、停止及频繁换向工况。

• 系统集成度高：可与 G&L CPU 模块、I/O 模块及编码器无缝配合。

• 工业级可靠性：抗干扰、耐振动和耐温设计，适合工业环境长期使用。

• 多用途应用：支持位置、速度及转矩多种控制模式，灵活性高

英文资料：

GIDINGS&LEWIS 502-02738-01 servo control board

Product Overview

502-02738-01 is a servo control board in the Giddings&Lewis control system, used to drive and control servo motors, achieving precise position, speed, and torque control. This board supports closed-loop control and can work in conjunction with encoders, CPU modules, and other I/O modules. It is one of the core modules for motion control of CNC machine tools and automation equipment.

Product application areas

Numerical Control Machine Tool System

Control the servo motor of the spindle and feed axis to achieve high-precision machining.

Support multi axis linkage and tool path interpolation.

Automatic production line

Servo motors that drive conveying equipment, handling mechanisms, or positioning devices.

Realize synchronization and high-precision motion control of production line equipment.

Industrial Robot System

Control the servo motion of robot joints and end effectors.

Support complex trajectory planning and high dynamic response.

Packaging and Printing Machinery

Control the feeder, swing arm, clamping mechanism, and other moving parts.

Ensure the accuracy and consistency of product processing, packaging, and printing.

Precision machining and testing equipment

Control the movement of micro platforms or precision actuators.

Provide high-resolution feedback to achieve micrometer level positioning.

Product advantages

High precision control: Closed loop control and encoder feedback ensure precise position and speed.

High dynamic response: Suitable for high-speed starting, stopping, and frequent reversing conditions.

High system integration: can seamlessly integrate with G&L CPU modules, I/O modules, and encoders.

Industrial grade reliability: anti-interference, vibration resistant, and temperature resistant design, suitable for long-term use in industrial environments.

Multi purpose application: supports multiple control modes for position, speed, and torque, with high flexibility

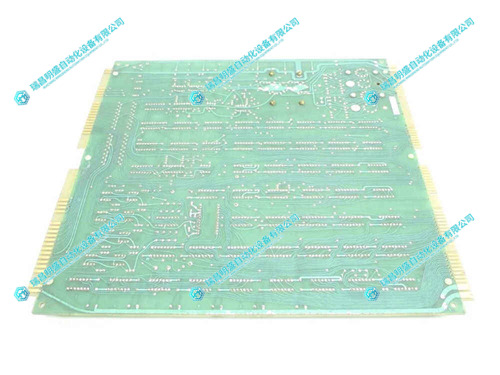

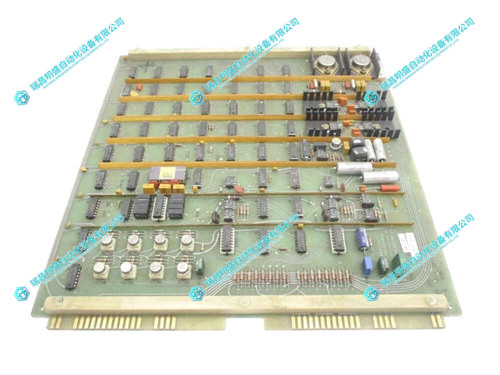

2.产      品      展      示
