GIDINGS&LEWIS 401-34201-32无脉冲伺服驱动器 PDF资料

1.产 品 资 料 介 绍：

GIDINGS&LEWIS 401-34201-32 无脉冲伺服驱动器

产品概述

Giddings & Lewis 401-34201-32 是一款工业级 无脉冲型伺服驱动器，主要用于与 G&L 的 CNC 与运动控制系统配套使用。该驱动器采用全数字化控制技术，能实现对无刷交流伺服电机的高精度调速与位置控制，具有稳定性高、响应快、抗干扰能力强的特点。

主要特点

1. 控制方式

• 全数字式伺服控制，支持速度、转矩、位置三种模式。

• 内部闭环调节，采用先进的电流环与速度环控制算法。

• 无脉冲输入方式，直接通过控制总线或专用接口进行数据通信与控制。

2. 电气性能

• 额定输入电压：230VAC 三相或单相（依机型配置）。

• 输出特性：恒转矩驱动，适用于中低速高扭矩工况。

• 高动态响应，支持快速启停与频繁换向。

3. 反馈与接口

• 支持高分辨率编码器反馈，保证电机运行精度。

• 提供数字与模拟信号接口，适配 CNC 系统与自动化设备。

• 内置通讯接口，可与 G&L 控制器无缝连接。

4. 保护与安全

• 具备过流、过压、欠压、过温、短路保护功能。

• 内置故障检测与报警功能，支持故障诊断。

• 工业级设计，可靠性高，适用于恶劣环境。

5. 结构与安装

• 模块化机架设计，便于安装在电气柜中。

• 紧凑体积，散热良好，可长期稳定运行。

英文资料：

GIDINGS&LEWIS 401-34201-32 Pulse Free Servo Drive

Product Overview

Giddings&Lewis 401-34201-32 is an industrial grade pulse free servo drive primarily used in conjunction with G&L's CNC and motion control systems. This drive adopts fully digital control technology, which can achieve high-precision speed regulation and position control of brushless AC servo motors. It has the characteristics of high stability, fast response, and strong anti-interference ability.

Main Features

Control method

Fully digital servo control, supporting three modes: speed, torque, and position.

Internal closed-loop regulation, using advanced current loop and speed loop control algorithms.

No pulse input method, data communication and control are directly carried out through the control bus or dedicated interface.

Electrical performance

Rated input voltage: 230VAC three-phase or single-phase (depending on the model configuration).

Output characteristics: Constant torque drive, suitable for medium to low speed and high torque working conditions.

High dynamic response, supporting fast start stop and frequent switching.

Feedback and Interface

Support high-resolution encoder feedback to ensure the accuracy of motor operation.

Provide digital and analog signal interfaces to adapt to CNC systems and automation equipment.

Built in communication interface, seamlessly connected to G&L controllers.

Protection and Security

Equipped with overcurrent, overvoltage, undervoltage, overtemperature, and short-circuit protection functions.

Built in fault detection and alarm functions, supporting fault diagnosis.

Industrial grade design, high reliability, suitable for harsh environments.

Structure and Installation

Modular rack design for easy installation in electrical cabinets.

Compact size, good heat dissipation, and long-term stable operation.

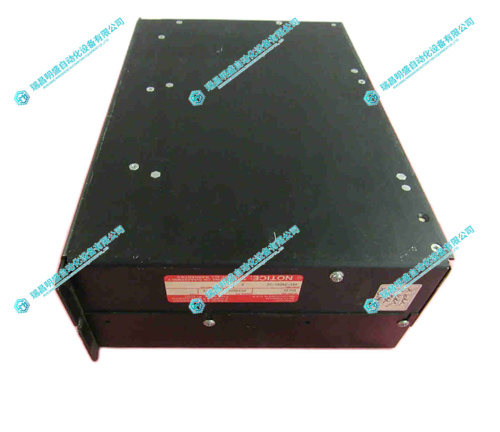

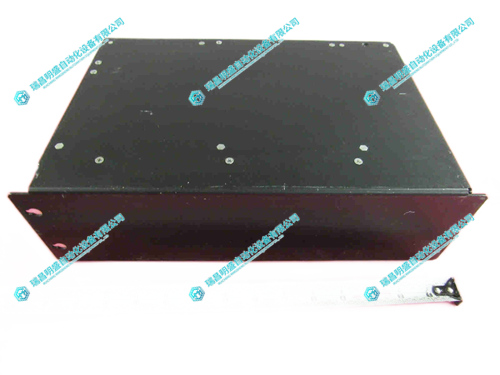

2.产      品      展      示
