1.产 品 资 料 介 绍：

GIDINGS&LEWIS 502-03677-02 输出模块

产品概述

502-03677-02 是 Giddings & Lewis PIC900 控制系统使用的步进电机输出模块，主要用于为多通道步进驱动器提供高速脉冲控制信号，具备高性能、强兼容性和工业级可靠性。

主要技术特点

• 控制能力

• 最多支持 8 个步进电机通道

• 最大步进速率可达 1,000,000 步/秒

• 加速/减速率范围：1 ~ 16,777,215 步/秒²

• 位置范围：±2,147,352,575 步

• 电源与隔离

• 现场供电范围：4.5VDC ~ 20VDC

• 每通道功耗约 45 mA

• 逻辑侧功耗：约 404 mA @ +5V（全通道运行），另每通道 6 mA

• 光隔离设计，确保逻辑与现场电路相互独立

• 接口与指示

• 现场接口：40 针卡槽连接器 + 螺丝端子

• 状态指示：DIAG LED，模块上电自检通过后熄灭

• 环境适应性

• 工作温度：7°C ~ 55°C

• 存储温度：-40°C ~ 85°C

• 相对湿度：5% ~ 95%，无凝露

• 抗振动：10–57Hz 振幅 0.15mm；57–2000Hz 加速度 2g

• 抗冲击：15g，11ms 半正弦脉冲，四向各一次

• 电磁兼容性

• 满足工业级 EMC 要求，具备抗静电、射频干扰和电快速瞬变能力

• 电磁辐射等级：工业设备 Class A

• 物理尺寸

• 宽约 41 mm

• 高约 305 mm

• 深约 213 mm

• 重量适中，便于在机柜内安装

英文资料：

GIDINGS&LEWIS 502-03677-02 Output Module

Product Overview

502-03677-02 is a stepper motor output module used in the Giddings&Lewis PIC900 control system, mainly used to provide high-speed pulse control signals for multi-channel stepper drivers, with high performance, strong compatibility, and industrial grade reliability.

Main technical features

control ability

Supports up to 8 channels for stepper motors

The maximum step rate can reach 1000000 steps per second

Acceleration/deceleration rate range: 1~16777215 steps/second ²

Position range: ± 2147352575 steps

Power supply and isolation

On site power supply range: 4.5VDC~20VDC

Each channel consumes approximately 45 mA of power

Logic side power consumption: approximately 404 mA @+5V (full channel operation), with an additional 6 mA per channel

Optical isolation design ensures that logic and on-site circuits are independent of each other

Interface and Instructions

On site interface: 40 pin card slot connector+screw terminal

Status indicator: DIAG LED, turns off after module power on self-test passes

environmental adaptability

Working temperature: 7 ° C~55 ° C

Storage temperature: -40 ° C~85 ° C

Relative humidity: 5%~95%, no condensation

Anti vibration: amplitude of 0.15mm at 10-57Hz; acceleration of 2g at 57-2000Hz

Impact resistance: 15g, 11ms half sine pulse, once in each direction

Electromagnetic Compatibility

Meet industrial grade EMC requirements, with anti-static, RF interference, and electrical fast transient capabilities

Electromagnetic radiation level: Industrial equipment Class A

Physical dimensions

Width approximately 41 mm

Approximately 305 mm in height

Approximately 213 mm deep

Moderate weight, easy to install inside the cabinet

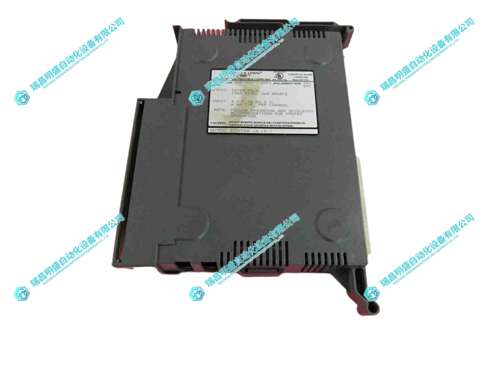

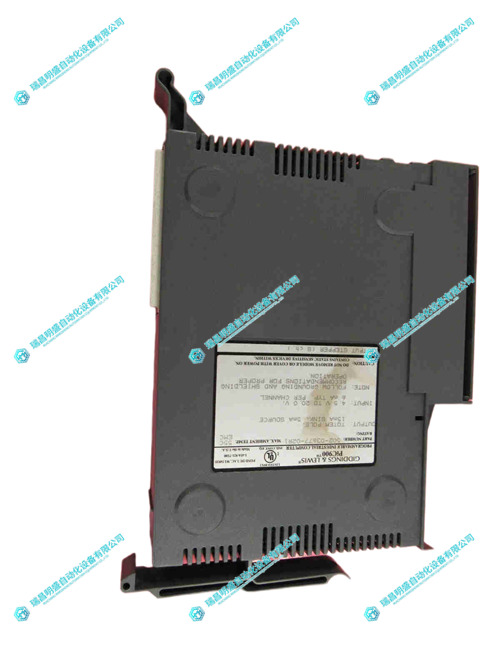

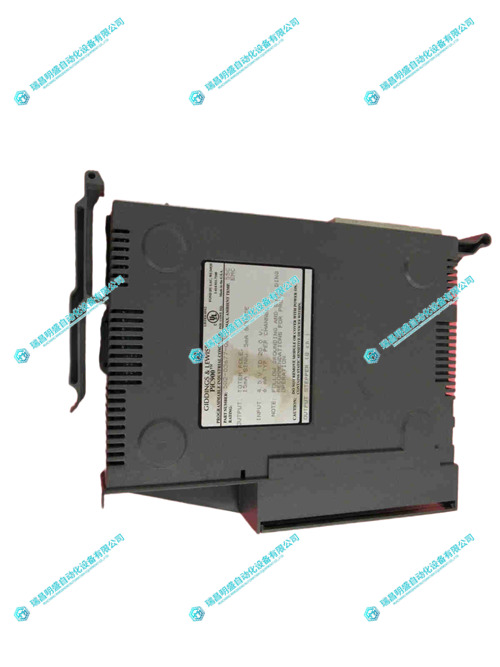

2.产      品      展      示
