GIDINGS&LEWIS 572-03853-03输入输出模块 PDF资料

1.产 品 资 料 介 绍：

GIDINGS&LEWIS 572-03853-03 输入输出模块

一、产品概述

572-03853-03 是 Giddings & Lewis 系列控制系统中的 工业输入输出模块，用于实现控制器与现场设备之间的信号交互。模块可同时处理多路数字和模拟信号，是数控机床、自动化生产线及机器人系统的核心接口单元。

二、技术特点

1. 多通道设计

• 支持多路数字量输入/输出，可连接传感器、开关、继电器及执行器。

• 提供模拟量输入/输出接口，可采集或模拟电压、电流信号。

2. 隔离与保护

• 输入输出通道与控制总线隔离，抗干扰能力强。

• 内置过流、短路保护，保证模块及设备安全。

3. 状态指示

• 每通道带 LED 指示灯，实时显示信号状态，便于现场调试和故障诊断。

4. 模块化安装

• 可直接安装于 G&L 控制机架或标准工业插槽中，便于系统扩展。

5. 工业级可靠性

• 结构坚固，耐高温、振动及电磁干扰，适合长期连续运行。

三、应用领域

1. 数控机床

• 控制夹具、液压阀、冷却泵等设备的启停与状态监测。

• 实现多轴同步动作和工艺流程自动化。

2. 自动化生产线

• 管理搬运、装配、检测及加工环节，实现高效自动化。

• 支持多点控制和信号采集，提高生产灵活性。

3. 工业机器人

• 采集关节位置、末端执行器及外围设备信号，实现闭环控制。

• 支持复杂运动轨迹和高精度动作。

4. 包装与印刷机械

• 控制送料、分切、张力及同步动作，确保产品质量一致。

5. 物流与物料搬运

• 输入货物检测、传感器状态，输出输送、堆垛和分拣指令。

• 提高搬运效率和系统安全性。

英文资料：

GIDINGS&LEWIS 572-03853-03 Input/Output Module

1、 Product Overview

572-03853-03 is an industrial input-output module in the Giddings&Lewis series control system, used to achieve signal interaction between the controller and field devices. The module can simultaneously process multiple digital and analog signals and is the core interface unit of CNC machine tools, automated production lines, and robot systems.

2、 Technical features

Multi-channel Design

Supports multiple digital inputs/outputs, can connect sensors, switches, relays, and actuators.

Provide analog input/output interfaces that can collect or simulate voltage and current signals.

Isolation and protection

The input and output channels are isolated from the control bus, with strong anti-interference ability.

Built in overcurrent and short-circuit protection ensures the safety of modules and equipment.

status indicator

Each channel is equipped with LED indicator lights, which display the signal status in real-time for easy on-site debugging and fault diagnosis.

modular installation

Can be directly installed in G&L control racks or standard industrial slots for easy system expansion.

Industrial grade reliability

The structure is sturdy, resistant to high temperatures, vibrations, and electromagnetic interference, and suitable for long-term continuous operation.

3、 Application Fields

CNC machine tool

Control the start stop and status monitoring of fixtures, hydraulic valves, cooling pumps and other equipment.

Realize multi axis synchronous action and process automation.

Automatic production line

Manage the handling, assembly, testing, and processing processes to achieve efficient automation.

Support multi-point control and signal acquisition to improve production flexibility.

industrial robot

Collect joint position, end effector and peripheral device signals to achieve closed-loop control.

Supports complex motion trajectories and high-precision actions.

Packaging and Printing Machinery

Control feeding, slitting, tension, and synchronous actions to ensure consistent product quality.

Logistics and Material Handling

Input the status of goods detection and sensors, and output instructions for conveying, stacking, and sorting.

Improve handling efficiency and system safety.

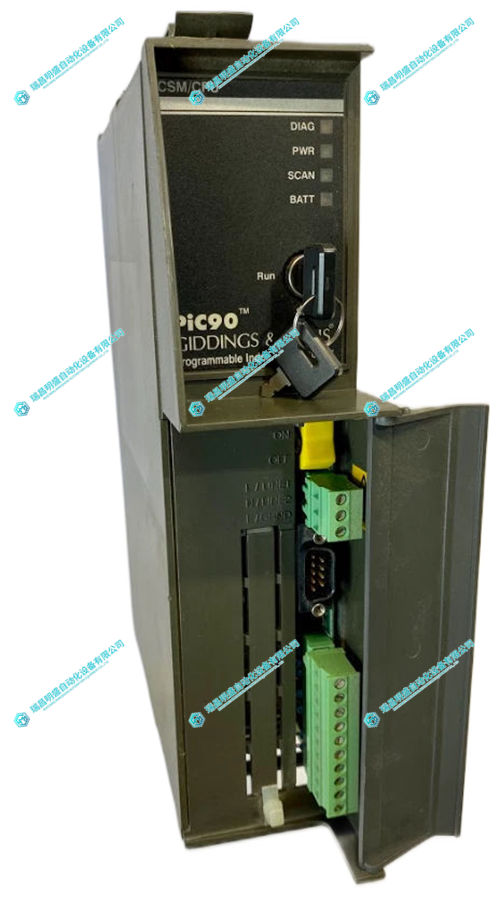

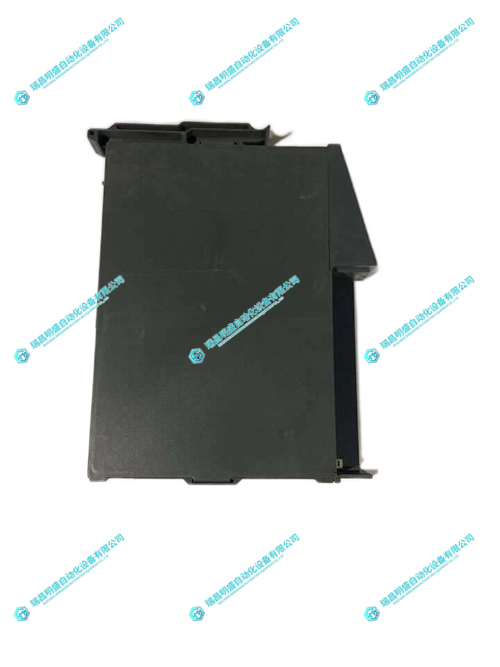

2.产      品      展      示
