GIDINGS&LEWIS 502-03362-00数据采集模块 PDF资料
1.产 品 资 料 介 绍：
GIDINGS&LEWIS 502-03362-00 数据采集模块
一、产品概述
502-03362-00 是 Giddings & Lewis 系列控制系统中的 数据采集模块（DAQ），用于工业设备和自动化系统中采集各种模拟或数字信号，并将数据传输至主控制器进行处理和监控。该模块适合高精度测量和实时数据采集的工业环境。
二、技术特点
多通道采集
支持多路模拟输入和数字输入，可同时采集多种信号。
输入信号类型兼容电压、电流及开关量信号。
高精度采样
采样分辨率高，保证测量数据的准确性和可靠性。
适合精密加工、过程监控和运动控制中的实时数据采集。
隔离与抗干扰设计
输入通道与控制总线隔离，增强抗电磁干扰能力。
保障数据采集的稳定性和系统安全性。
状态指示
带有状态指示灯，可实时显示通道工作状态及故障信号，便于调试。
模块化安装
可直接安装在 G&L 控制机架或标准 I/O 插槽中，便于系统扩展。
工业级设计
结构坚固，耐高温、振动及电气干扰，适合长期工业环境使用。
三、应用领域
数控机床
采集温度、压力、位置、速度等关键加工参数，实现加工过程监控和优化。
自动化生产线
采集传感器数据、开关量状态和过程变量，实现生产流程自动化监控。
机器人系统
获取力传感器、位置传感器或反馈装置的数据信号，支持闭环控制。
包装与印刷机械
采集张力、位置、速度及传送带状态，实现精确控制和同步操作。
物流与仓储系统
数据采集输送机、堆垛机及分拣设备的运行状态，支持系统优化和安全管理。
特种工业设备
纺织、造纸、电子组装及其他需要高精度测量与监控的设备。
英文资料：
GIDINGS&LEWIS 502-03362-00 Data Acquisition Module
1、 Product Overview
502-03362-00 is a data acquisition module (DAQ) in the Giddings&Lewis series control system, used to collect various analog or digital signals in industrial equipment and automation systems, and transmit the data to the main controller for processing and monitoring. This module is suitable for industrial environments with high-precision measurement and real-time data acquisition.
2、 Technical features
multi-channel acquisition
Supports multiple analog and digital inputs, and can simultaneously collect multiple signals.
The input signal type is compatible with voltage, current, and switch signals.
High precision sampling
High sampling resolution ensures the accuracy and reliability of measurement data.
Suitable for real-time data acquisition in precision machining, process monitoring, and motion control.
Isolation and anti-interference design
The input channel is isolated from the control bus to enhance its ability to resist electromagnetic interference.
Ensure the stability of data collection and system security.
status indicator
Equipped with status indicator lights, it can display real-time channel working status and fault signals for easy debugging.
modular installation
Can be directly installed in G&L control racks or standard I/O slots for system expansion.
Industrial-grade design
The structure is sturdy, resistant to high temperatures, vibrations, and electrical interference, and suitable for long-term use in industrial environments.
3、 Application Fields
CNC machine tool
Collect key processing parameters such as temperature, pressure, position, and speed to achieve process monitoring and optimization.
Automatic production line
Collect sensor data, switch status, and process variables to achieve automated monitoring of production processes.
robot system
Obtain data signals from force sensors, position sensors, or feedback devices to support closed-loop control.
Packaging and Printing Machinery
Collect tension, position, speed, and conveyor status to achieve precise control and synchronous operation.
Logistics and warehousing system
Collect data on the operating status of conveyors, stackers, and sorting equipment to support system optimization and safety management.
Special industrial equipment
Textile, papermaking, electronic assembly, and other equipment that require high-precision measurement and monitoring.

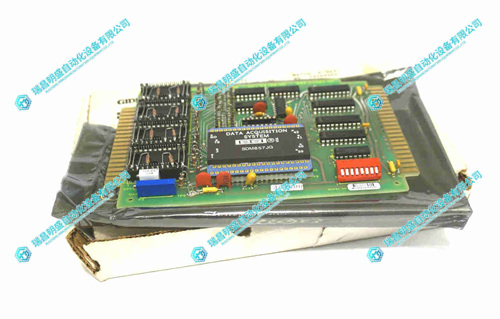

2.产 品 展 示
