GIDINGS&LEWIS  502-04050-00逻辑 I/O 模块 PDF资料

1.产 品 资 料 介 绍：

GIDINGS&LEWIS 502-04050-00 逻辑 I/O 模块 — 产品特点

一、产品概述

502-04050-00 是 Giddings & Lewis 系列控制系统中的 逻辑输入/输出模块，用于实现控制器与现场设备之间的数字信号交互。模块可以同时处理多路输入与输出信号，用于工业自动化系统的逻辑控制、状态采集和执行指令下发。

二、技术特点

1. 多路输入/输出

• 支持多通道数字量输入，采集传感器、开关、限位信号等。

• 提供多路数字量输出，可驱动继电器、电磁阀、指示灯及其他执行器。

2. 电压与信号兼容性

• 标准工业电压 24VDC 输入输出。

• 兼容常见工业开关量和逻辑信号，适应多种工业环境。

3. 隔离与保护设计

• 输入、输出通道与控制系统总线隔离，提高抗干扰能力。

• 内置过流、短路保护，确保模块与系统稳定运行。

4. 状态指示

• 每通道带 LED 指示灯，可实时显示信号状态，便于现场调试与维护。

5. 模块化结构

• 可直接安装在 G&L 控制机架或标准 I/O 插槽中。

• 支持系统扩展和灵活配置，便于增加控制点。

6. 工业级设计

• 适应高温、振动、电气干扰等工业环境，可靠性高。

英文资料：

GIDINGS&LEWIS 502-04050-00 Logic I/O Module - Product Features

1、 Product Overview

502-04050-00 is a logic input/output module in the Giddings&Lewis series control system, used to achieve digital signal interaction between the controller and field devices. The module can simultaneously process multiple input and output signals for logic control, status acquisition, and instruction issuance in industrial automation systems.

2、 Technical features

Multi channel input/output

Support multi-channel digital input, collect sensor, switch, limit signal, etc.

Provide multiple digital outputs that can drive relays, solenoid valves, indicator lights, and other actuators.

Voltage and signal compatibility

Standard industrial voltage 24VDC input/output.

Compatible with common industrial switch values and logic signals, suitable for various industrial environments.

Isolation and protection design

The input and output channels are isolated from the control system bus to improve anti-interference capability.

Built in overcurrent and short-circuit protection ensures stable operation of modules and systems.

status indicator

Each channel is equipped with LED indicator lights, which can display the signal status in real time for easy on-site debugging and maintenance.

Modular structure

Can be directly installed in G&L control racks or standard I/O slots.

Support system expansion and flexible configuration, facilitating the addition of control points.

Industrial-grade design

Adapt to industrial environments such as high temperature, vibration, and electrical interference, with high reliability.

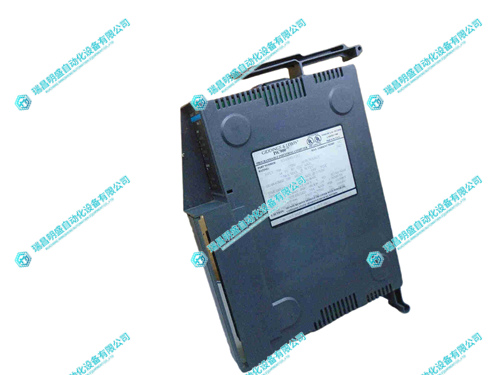

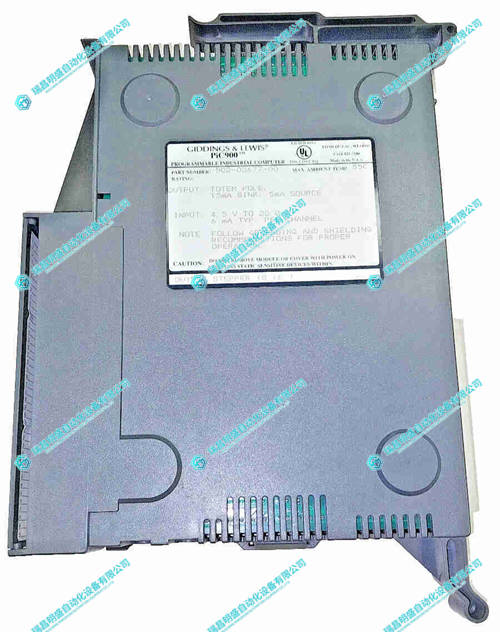

2.产      品      展      示
