GIDINGS&LEWIS MMC-SD-1.0-230伺服电机驱动器 PDF资料

1.产 品 资 料 介 绍：

GIDINGS&LEWIS MMC-SD-1.0-230 伺服电机驱动器

一、产品概述

MMC-SD-1.0-230 是 Giddings & Lewis 面向中小功率伺服电机的 交流伺服驱动器，用于高精度运动控制系统。该驱动器提供闭环电机控制功能，可精确管理伺服电机的速度、位置和转矩，实现工业自动化设备的精确运动。

二、技术特点

• 额定输入：230VAC 三相电源，符合工业电压标准。

• 输出能力：支持中小功率伺服电机，连续运行与瞬时过载能力兼顾。

• 控制模式：支持速度环、位置环、转矩环三种模式，适应不同应用工况。

• 反馈接口：支持高分辨率编码器或霍尔传感器，实现闭环精确控制。

• 保护功能：过流、过压、欠压、过温保护，确保设备安全运行。

• 模块化设计：便于与控制器和其他 I/O 模块集成，适合系统扩展与升级。

三、应用领域

1. 数控机床

• 驱动机床进给轴或主轴伺服电机，实现高精度加工和快速响应。

• 适用于车床、铣床、磨床、加工中心等多种机床类型。

2. 自动化生产线

• 驱动搬运、装配、检测等伺服电机，实现生产流程自动化。

• 满足快速启停和频繁换向的工业需求。

3. 机器人系统

• 用于机器人关节驱动，提供稳定的扭矩和精确定位。

• 适合搬运、焊接、喷涂、分拣等机器人应用。

4. 包装与印刷设备

• 控制送料、分切、张力及同步动作。

• 保证高速生产中的精度与稳定性。

5. 物流与物料搬运

• 驱动输送机、堆垛机及自动仓储系统，实现平稳搬运和精确定位。

英文资料：

GIDINGS&LEWIS MMC-SD-1.0-230 servo motor driver

1、 Product Overview

MMC-SD-1.0-230 is an AC servo driver designed by Giddings&Lewis for small and medium power servo motors, used in high-precision motion control systems. This driver provides closed-loop motor control function, which can accurately manage the speed, position, and torque of servo motors, achieving precise motion of industrial automation equipment.

2、 Technical features

Rated input: 230VAC three-phase power supply, in compliance with industrial voltage standards.

Output capability: Supports small and medium power servo motors, balancing continuous operation and instantaneous overload capability.

Control mode: Supports three modes: speed loop, position loop, and torque loop, suitable for different application conditions.

Feedback interface: Supports high-resolution encoders or Hall sensors to achieve closed-loop precise control.

Protection function: over-current, over-voltage, undervoltage, and over temperature protection to ensure safe operation of the equipment.

Modular design: easy to integrate with controllers and other I/O modules, suitable for system expansion and upgrades.

3、 Application Fields

CNC machine tool

Drive the feed axis or spindle servo motor of the machine tool to achieve high-precision machining and fast response.

Suitable for various types of machine tools such as lathes, milling machines, grinders, and machining centers.

Automatic production line

Drive servo motors for handling, assembly, and inspection to achieve automation of the production process.

Meet the industrial demand for fast start stop and frequent reversing.

robot system

Used for robot joint drive, providing stable torque and precise positioning.

Suitable for robot applications such as handling, welding, spraying, sorting, etc.

Packaging and Printing Equipment

Control feeding, slitting, tension, and synchronous actions.

Ensure precision and stability in high-speed production.

Logistics and Material Handling

Drive conveyors, stackers, and automatic storage systems to achieve smooth handling and precise positioning.

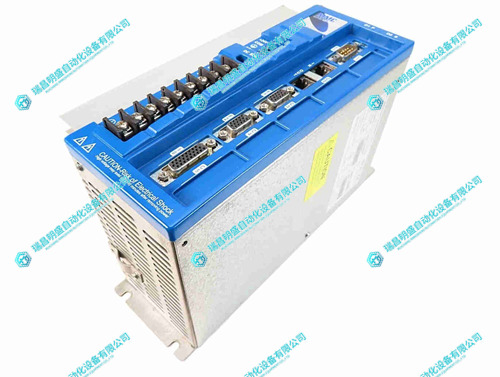

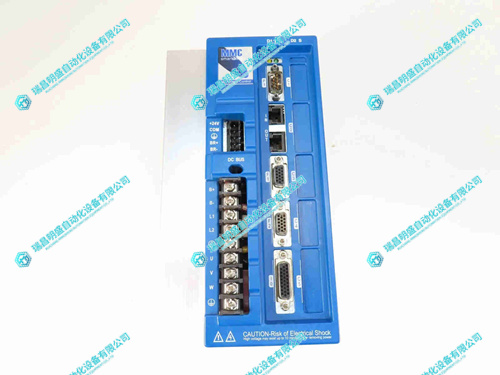

2.产      品      展      示
