GIDINGS&LEWIS 502-03552-02输入输出模块 PDF资料

1.产 品 资 料 介 绍：

GIDINGS&LEWIS 502-03552-02 输入输出模块 — 产品特点

1. 功能特性

• 作为控制系统中的 I/O 扩展单元，提供数字量输入与输出通道，实现外部设备与主控制器的信号交互。

• 输入端口支持多路工业标准信号采集，输出端口用于驱动执行器、继电器或信号指示设备。

• 具备稳定的数据采样与响应能力，确保系统在实时控制环境中的可靠性。

2. 电气特性

• 设计支持工业现场常见的电压电平（通常为 24V DC 输入输出）。

• 输入通道带有隔离设计，降低电气噪声对控制系统的干扰。

• 输出通道支持中等负载能力，适合直接驱动小型电磁阀、继电器线圈等元件。

3. 结构与安装

• 采用标准化模块外形，可直接插装在 Giddings & Lewis 控制机架或兼容系统中。

• 配有可靠的接线端子，方便快速布线与维护。

• 模块具备工业级耐用性，能够适应长时间运行的自动化环境。

4. 系统兼容性

• 与 Giddings & Lewis 的多种运动控制器及主机系统兼容，支持在同一总线上扩展多个 I/O 模块。

• 具备标准化信号接口协议，可通过系统总线实现高速数据传输与统一管理。

5. 应用特点

• 广泛应用于数控机床、自动化产线、机器人及包装设备中，用于采集传感器信号和控制执行部件。

• 在复杂工艺流程中，实现逻辑控制、状态检测和动作驱动等功能。

• 通过模块化扩展方式，用户可以灵活配置所需 I/O 数量，满足不同规模的系统需求。

英文资料：

GIDINGS&LEWIS 502-03552-02 Input/Output Module - Product Features

1. Functional characteristics

As an I/O expansion unit in the control system, it provides digital input and output channels to achieve signal interaction between external devices and the main controller.

The input port supports multi-channel industrial standard signal acquisition, and the output port is used to drive actuators, relays, or signal indicating devices.

Having stable data sampling and response capabilities ensures the reliability of the system in real-time control environments.

2. Electrical characteristics

Design to support common voltage levels in industrial sites (typically 24V DC input/output).

The input channel is designed with isolation to reduce the interference of electrical noise on the control system.

The output channel supports moderate load capacity and is suitable for directly driving small solenoid valves, relay coils, and other components.

3. Structure and Installation

Adopting a standardized module shape, it can be directly plugged into Giddings&Lewis control racks or compatible systems.

Equipped with reliable wiring terminals for easy and quick wiring and maintenance.

The module has industrial grade durability and can adapt to long-term automated environments.

4. System compatibility

Compatible with multiple motion controllers and host systems from Giddings&Lewis, supporting the expansion of multiple I/O modules on the same bus.

Equipped with standardized signal interface protocols, high-speed data transmission and unified management can be achieved through the system bus.

5. Application features

Widely used in CNC machine tools, automated production lines, robots, and packaging equipment for collecting sensor signals and controlling execution components.

In complex manufacturing processes, functions such as logic control, state detection, and action driving are implemented.

Through modular expansion, users can flexibly configure the required number of I/O to meet the needs of systems of different scales.

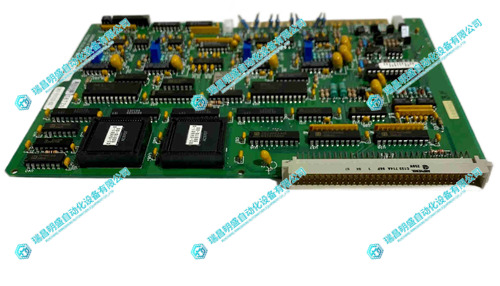

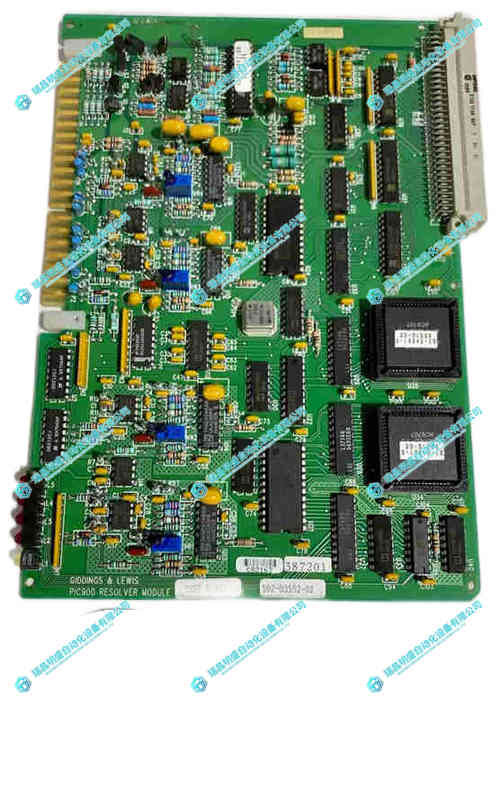

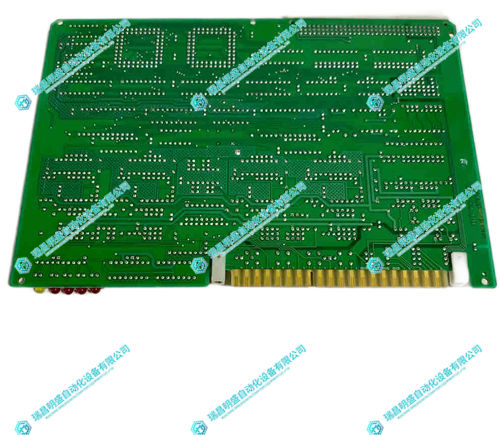

2.产      品      展      示
