GIDINGS&LEWIS 502-03677-00步进模块 PDF资料

1.产 品 资 料 介 绍：

GIDDINGS & LEWIS 502-03677-00 步进模块

产品概述

502-03677-00 是 Giddings & Lewis 的一款 步进驱动模块，用于精确控制步进电机的旋转角度和步进动作。该模块可接收来自中央控制器的脉冲信号，将其转换为步进电机的移动指令，实现位置、速度和方向的精确控制，广泛应用于数控机床和自动化设备中。

产品应用领域

• 数控机床（CNC）

• 控制进给轴、刀具定位及多轴联动，实现高精度加工。

• 自动化生产线

• 驱动传送带、机械手或定位装置，实现重复性操作和精确动作。

• 包装与印刷机械

• 控制送料轮、卷轴和定位机构，实现同步操作和工艺稳定性。

• 机器人系统

• 精确控制小型伺服关节或末端执行器，实现微步动作。

• 实验与测试平台

• 用于精密定位实验装置或测试台，保证重复性和可靠性。

产品特点

• 高精度控制：支持微步进控制，实现细分步进和高分辨率定位。

• 响应快速：脉冲信号处理快速，保证电机动作与控制指令同步。

• 模块化设计：便于安装、替换和系统扩展。

• 工业可靠性：耐振动、防尘、防干扰，适应复杂车间环境。

• 兼容性强：可与 G&L 系列控制器、输入输出模块及其他驱动模块无缝集成。

• 保护功能：具备过流、短路及过热保护，提高系统安全性。

英文资料：

GIDINGS&LEWIS 502-03677-00 Stepping Module

Product Overview

502-03677-00 is a stepper drive module from Giddings&Lewis, used for precise control of the rotation angle and stepping action of stepper motors. This module can receive pulse signals from the central controller and convert them into movement commands for stepper motors, achieving precise control of position, speed, and direction. It is widely used in CNC machine tools and automation equipment.

Product application areas

Numerical Control Machine Tool (CNC)

Control the feed axis, tool positioning, and multi axis linkage to achieve high-precision machining.

Automatic production line

Drive conveyor belts, robotic arms, or positioning devices to achieve repetitive operations and precise movements.

Packaging and Printing Machinery

Control the feeding wheel, reel, and positioning mechanism to achieve synchronous operation and process stability.

robot system

Accurately control small servo joints or end effectors to achieve micro step movements.

Experimental and testing platform

Used for precise positioning of experimental devices or test benches, ensuring repeatability and reliability.

Product Features

High precision control: supports micro step control, achieving subdivision step and high-resolution positioning.

Fast response: The pulse signal processing is fast, ensuring that the motor action is synchronized with the control instructions.

Modular design: easy to install, replace, and expand the system.

Industrial reliability: resistant to vibration, dustproof, anti-interference, and adaptable to complex workshop environments.

Strong compatibility: It can seamlessly integrate with G&L series controllers, input/output modules, and other driver modules.

Protection function: It has overcurrent, short circuit, and overheating protection to improve system safety.

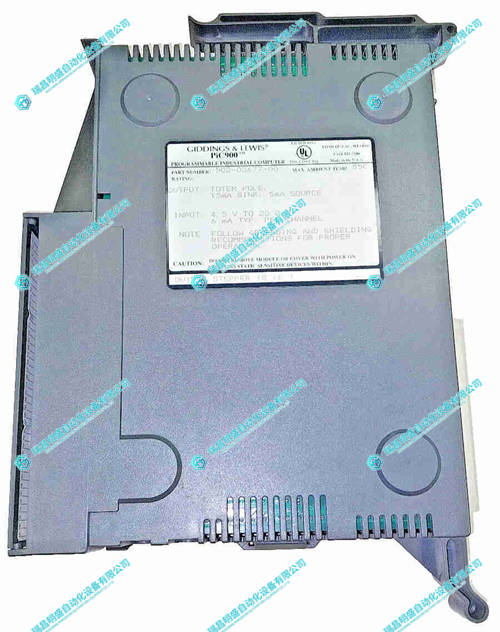

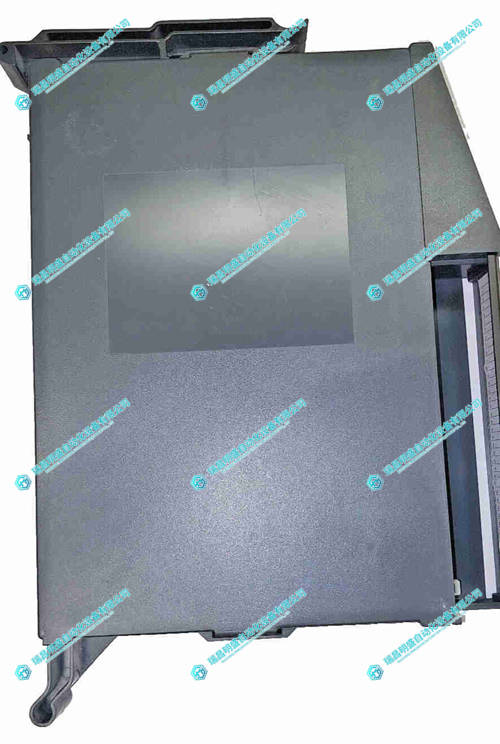

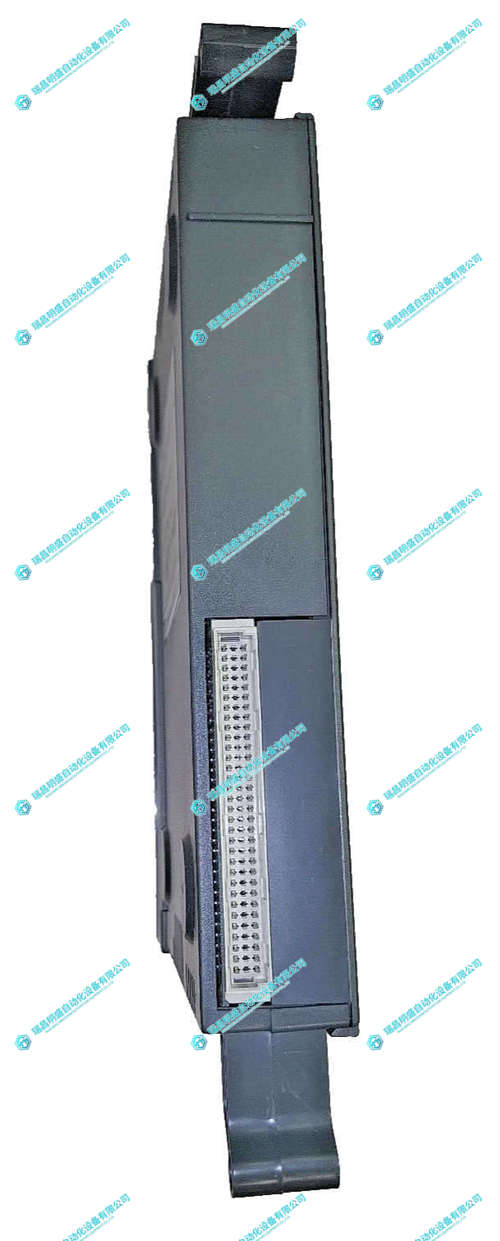

2.产      品      展      示
